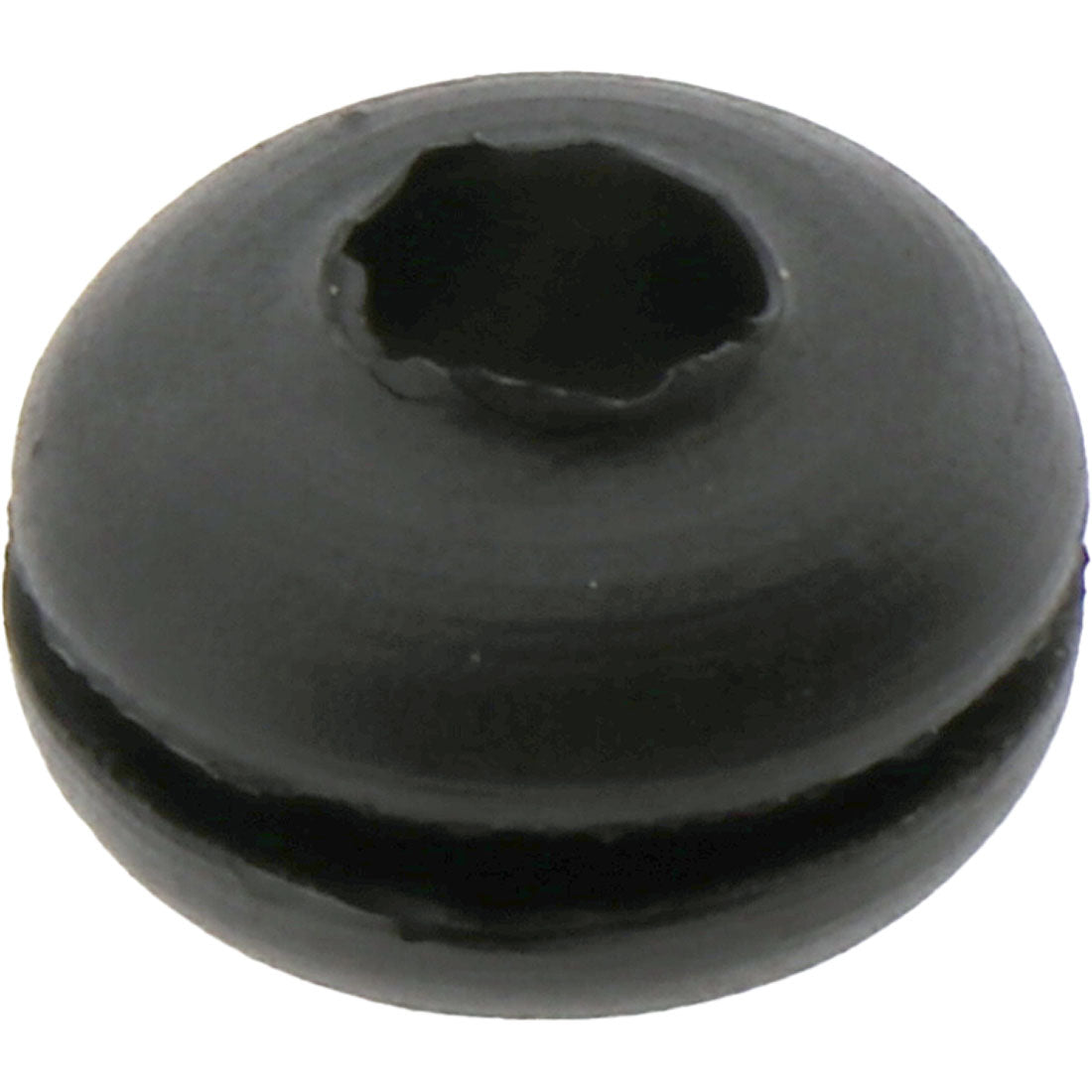

Grommet Rubber 3.9mm Gauge 1.6mm 7.9mm Panel

Name: Grommet Rubber 3.9mm Gauge 1.6mm 7.9mm Panel
Brand: Co-Mac
SKU: 862
Price: 0.95 NZD
Availability: InStock

$0.95

Sale Sold out

+ GST

Code: 862

Price and quantity are per grommet
Enter ‘50’ for a standard pack of 50 grommets
Material - Natural Rubber (NR) -40°C to 98°C

Rubber grommets protect wires and penetrations. Commonly used on cabinets, toolboxes, safety guards, vehicles and electrical cabinets — also known as blanking plugs with holes.

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Grommet Size Calculator

Grommet type:

Protects cables, hoses or pipes passing through a panel.

Hole diameter (mm)

Panel thickness (mm)

Matching Grommets

Your Specifications

Grommet type:

Hole diameter:

Panel thickness:

Hole tolerance: Up to 1 mm oversize

Panel thickness match: Exact

Used For
Protecting Wires, Protecting Penetration
Used On
Cabinet, Toolbox, Safety Guard, Vehicles, Bus, Electrical Cabinet, Firewalls, Bulkhead
Also Called
Rubber Grommet, Blanking Plug With Holes, Rubber Grommets

Rubber Grommets Variations

View product

Code: 862

Grommet Rubber 3.9mm Gauge 1.6mm 7.9mm Panel

$0.95

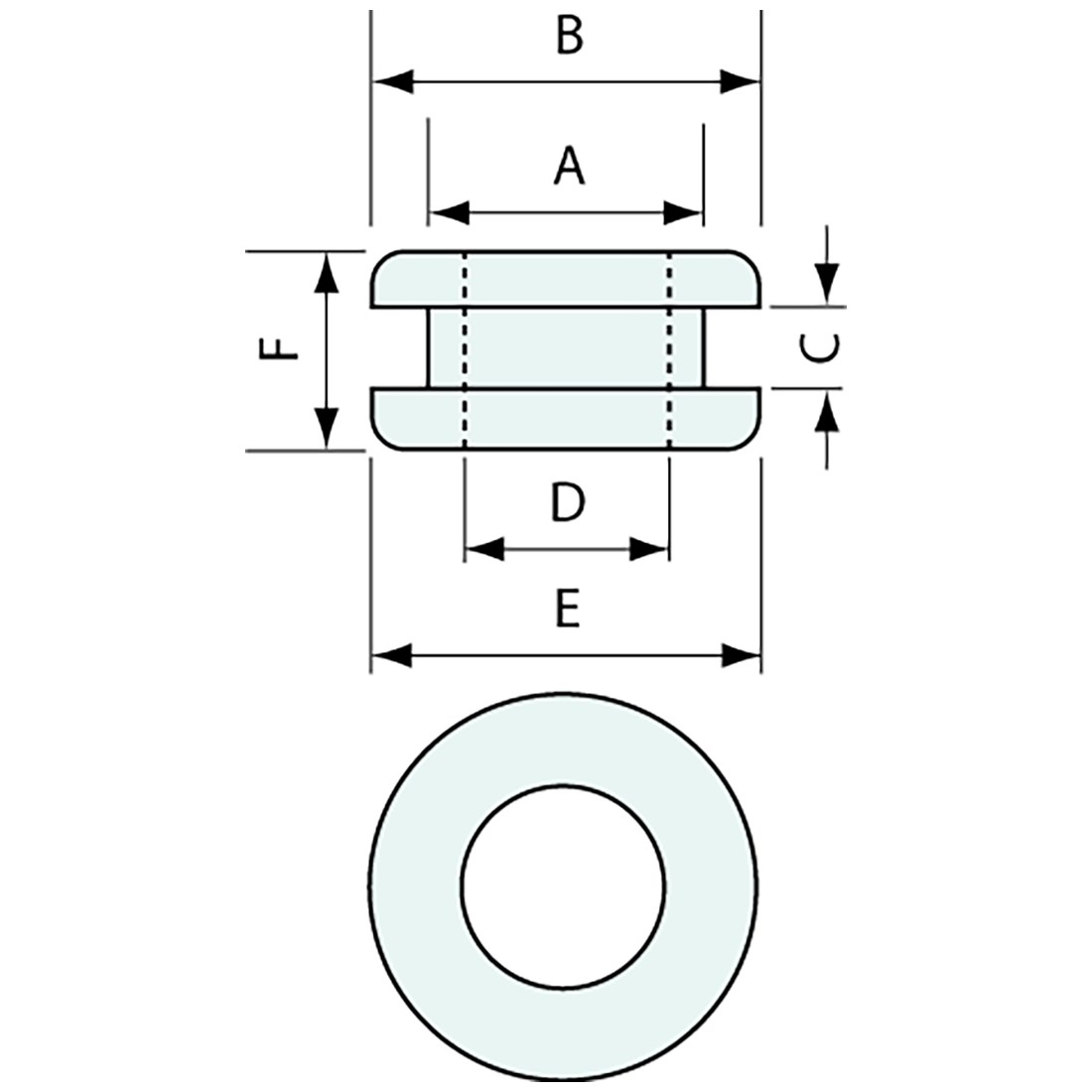

	SKU Products	A mm	B mm	Colour	C mm	D mm	E mm	F mm	Material	Price + GST
		Swipe for more measurements
772	772	60.0	71.5	Black	2.5	50.0	65.3	7.9	Rubber Thermoplastic	$6.90
877	877	22.2	28.0	Black	5.5	14.2	25.0	11.7	Rubber Nitrile	$2.85
879	879	20.6	24.1	Black	1.6	15.9	24.1	7.8	Rubber Natural	$1.93
900	900	50.0	52.5	Black	2.5	37.0	51.7	6.4	Rubber Thermoplastic	$7.89
775	775	40.0	48.2	Black	4.0	35.0	48.2	10.1	Rubber Thermoplastic	$6.29
826	826	40.0	48.7	Black	16.0	30.0	48.5	21.8	Rubber Thermoplastic	$6.18
824	824	19.0	23.5	Black	3.0	10.0	22.7	8.6	Rubber Thermoplastic	$2.07
884	884	33.3	49.0	Black	1.6	25.4	46.5	8.3	Rubber Natural	$3.69
788	788	29.0	36.5	Black	6.0	21.0	36.5	12.2	Rubber Thermoplastic	$3.69
932	932	50.0	56.0	Black	2.0	45.0	56.0	6.0	Rubber	$8.58
878	878	25.4	30.5	Black	1.6	15.8	27.3	6.5	Rubber Natural	$2.04
771	771	29.0	36.2	Black	1.2	25.4	31.6	5.2	Rubber Thermoplastic	$2.64
773	773	15.4	20.0	Black	4.0	9.5	19.3	10.1	Rubber Thermoplastic	$1.96
870	870	12.7	16.2	Black	1.6	9.5	16.2	8.2	Rubber Natural	$1.49
888	888	63.5	71.0	Black	2.2	54.0	71.0	9.1	Rubber Natural	$8.42
866	866	11.1	16.0	Black	3.2	6.4	14.6	10.0	Rubber Natural	$1.37
869	869	12.7	17.3	Black	1.6	7.9	17.3	5.4	Rubber Natural	$1.61
887	887	38.1	47.2	Black	1.6	31.7	47.2	8.1	Rubber Nitrile	$5.09
886	886	38.1	46.3	Black	1.6	28.5	46.0	7.6	Rubber Natural	$4.72
770	770	51.0	53.0	Black	3.0	45.0	53.0	6.5	Rubber Thermoplastic	$8.75
871	871	12.7	17.6	Black	3.2	9.5	15.5	8.0	Rubber Nitrile	$1.63
825	825	30.0	39.3	Black	16.0	20.0	39.0	22.3	Rubber Thermoplastic	$6.18
864	864	9.5	13.7	Black	1.6	4.8	13.1	6.3	Rubber Natural	$1.17
873	873	15.8	23.7	Black	1.6	11.1	23.0	6.6	Rubber Nitrile	$1.73
867	867	14.2	19.5	Black	1.6	6.4	19.5	7.2	Rubber Natural	$1.79
774	774	51.0	53.6	Black	4.0	45.0	53.6	8.3	Rubber Thermoplastic	$9.58
863	863	7.9	10.7	Black	1.6	4.8	10.7	6.7	Rubber Natural	$1.11
880	880	22.2	34.4	Black	1.6	19.0	34.4	7.4	Rubber Natural	$4.25
882	882	25.4	28.0	Black	4.0	19.0	28.0	10.2	Rubber Thermoplastic	$3.38
872	872	19.0	24.4	Black	1.6	9.5	24.4	7.4	Rubber Natural	$2.07
889	889	66.6	76.6	Black	1.6	62.0	76.6	7.8	Rubber Natural	$12.00
865	865	11.1	17.5	Black	1.6	6.4	14.0	6.2	Rubber Nitrile	$1.31
779	779	13.0	24.5	Black	10.0	8.2	24.5	16.5	Rubber Thermoplastic	$2.11
821	821	6.3	9.0	Black	1.6	3.4	8.0	6.0	Rubber Natural	$0.83
876	876	19.0	24.3	Black	1.6	12.7	21.3	6.4	Rubber Natural	$2.34
881	881	25.4	35.5	Black	3.2	19.0	33.8	9.1	Rubber Natural	$3.09
883	883	33.3	41.6	Black	1.6	20.6	41.6	7.7	Rubber Natural	$4.25
862	862	7.9	10.8	Black	1.6	3.9	10.8	6.3	Rubber Natural	$0.95
874	874	17.4	23.7	Black	1.6	11.1	23.1	8.0	Rubber Natural	$1.85
875	875	17.4	22.3	Black	4.8	11.1	19.2	9.7	Rubber Natural	$2.30
