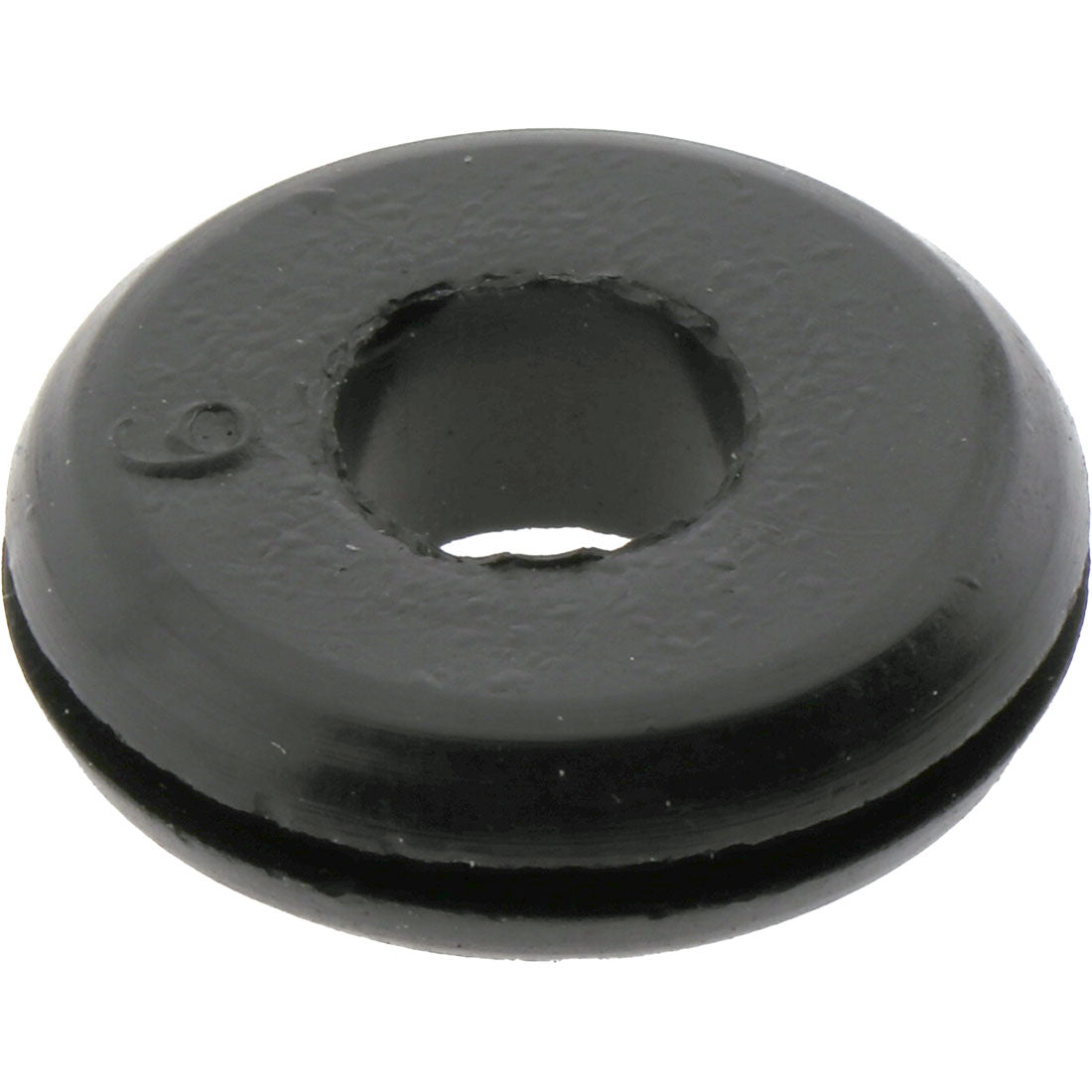

Grommet Rubber 9.5mm Gauge 1.6mm 19mm Panel

Name: Grommet Rubber 9.5mm Gauge 1.6mm 19mm Panel
Brand: Co-Mac
SKU: 872
Price: 2.07 NZD
Availability: InStock

$2.07

Sale Sold out

+ GST

Code: 872

• Standard pack: 50 Grommets (available in singles also) • Material - Natural Rubber (NR) -40°C to 98°C

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Protecting Wires, Protecting Penetrations
Used On
Cabinet, Toolbox, Safety Guards, Vehicles, Bus, Electrical Cabinet, Firewall, Bulkheads
Also Called
Rubber Grommet, Blanking Plug With Holes, Rubber Grommets

Rubber Grommets Variations

View product

Code: 872

Grommet Rubber 9.5mm Gauge 1.6mm 19mm Panel

$2.07

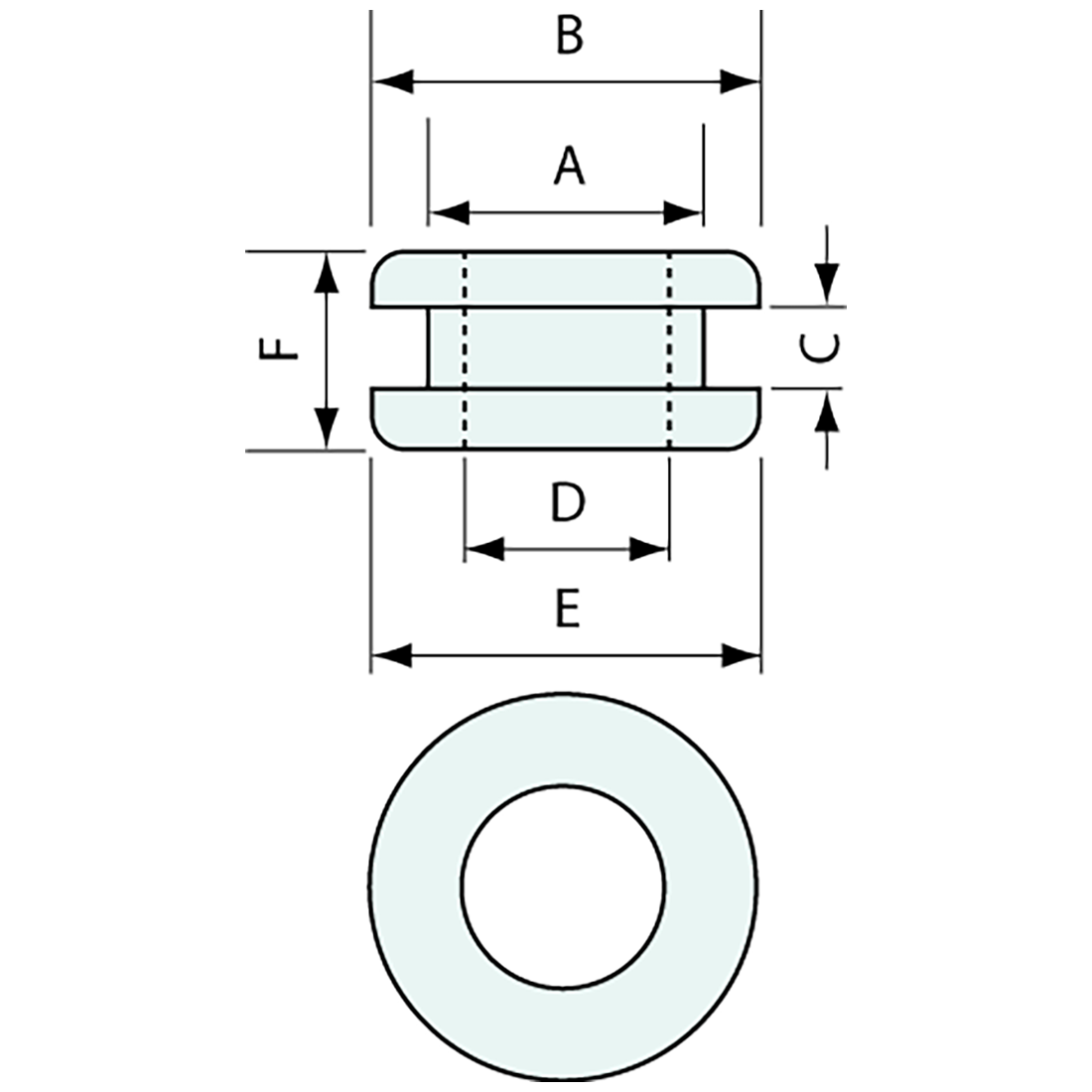

	SKU Products	A mm	B mm	Colour	C mm	D mm	E mm	F mm	Material	Price + GST
		Swipe for more measurements
824	824	19.0	23.5	Black	3.0	10.0	22.7	8.6	Rubber Thermoplastic	$2.07
870	870	12.7	16.2	Black	1.6	9.5	16.2	8.2	Rubber Natural	$1.49
788	788	30.0	38.1	Black	6.0	21.0	35.4	12.0	Rubber Thermoplastic	$3.69
900	900	50.0	52.5	Black	2.5	37.0	51.7	6.4	Rubber Thermoplastic	$7.89
773	773	15.4	20.0	Black	4.0	9.5	19.3	10.1	Rubber Thermoplastic	$1.96
772	772	60.0	71.5	Black	2.5	50.0	65.3	7.9	Rubber Thermoplastic	$6.90
779	779	13.0	24.5	Black	10.0	8.2	24.5	16.5	Rubber Thermoplastic	$2.11
871	871	12.7	17.6	Black	3.2	9.5	15.5	8.0	Rubber Nitrile	$1.63
878	878	25.4	30.5	Black	1.6	15.8	27.3	6.5	Rubber Natural	$2.04
864	864	9.5	13.7	Black	1.6	4.8	13.1	6.3	Rubber Natural	$1.17
866	866	11.1	16.0	Black	3.2	6.4	14.6	10.0	Rubber Natural	$1.37
873	873	15.8	23.7	Black	1.6	11.1	23.0	6.6	Rubber Nitrile	$1.73
826	826	40.0	48.7	Black	16.0	30.0	48.5	21.8	Rubber Thermoplastic	$6.18
771	771	29.0	36.2	Black	1.2	25.4	31.6	5.2	Rubber Thermoplastic	$2.64
883	883	33.3	41.6	Black	1.6	20.6	41.6	7.7	Rubber Natural	$4.25
775	775	40.0	48.2	Black	4.0	35.0	48.2	10.1	Rubber Thermoplastic	$6.29
867	867	14.2	19.5	Black	1.6	6.4	19.5	7.2	Rubber Natural	$1.79
774	774	51.0	53.6	Black	4.0	45.0	53.6	8.3	Rubber Thermoplastic	$9.58
863	863	7.9	10.7	Black	1.6	4.8	10.7	6.7	Rubber Natural	$1.11
869	869	12.7	17.3	Black	1.6	7.9	17.3	5.4	Rubber Natural	$1.61
880	880	22.2	34.4	Black	1.6	19.0	34.4	7.4	Rubber Natural	$4.25
884	884	33.3	49.0	Black	1.6	25.4	46.5	8.3	Rubber Natural	$3.69
862	862	7.9	10.8	Black	1.6	3.9	10.8	6.3	Rubber Natural	$0.95
888	888	63.5	71.0	Black	1.6	54.0	71.0	9.1	Rubber Natural	$8.42
887	887	38.1	47.2	Black	1.6	31.7	47.2	8.1	Rubber Nitrile	$5.09
886	886	38.1	46.3	Black	1.6	28.5	46.0	7.6	Rubber Natural	$4.72
882	882	25.4	28.0	Black	4.0	19.0	28.0	10.2	Rubber Thermoplastic	$3.38
872	872	19.0	24.4	Black	1.6	9.5	24.4	7.4	Rubber Natural	$2.07
889	889	66.6	76.6	Black	1.6	62.0	76.6	7.8	Rubber Natural	$12.00
874	874	17.4	23.7	Black	1.6	11.1	23.1	8.0	Rubber Natural	$1.85
770	770	51.0	53.0	Black	3.0	45.0	53.0	6.5	Rubber Thermoplastic	$8.75
865	865	11.1	17.5	Black	1.6	6.4	14.0	6.2	Rubber Nitrile	$1.31
932	932	50.0	56.0	Black	2.0	45.0	56.0	6.0	Rubber	$8.58
821	821	6.3	9.0	Black	1.6	3.4	8.0	6.0	Rubber Natural	$0.83
879	879	20.6	24.1	Black	1.6	15.9	24.1	7.8	Rubber Natural	$1.93
876	876	19.0	24.3	Black	1.6	12.7	21.3	6.4	Rubber Natural	$2.34
881	881	25.4	35.5	Black	3.2	19.0	33.8	9.1	Rubber Natural	$3.09
825	825	30.0	39.3	Black	16.0	20.0	39.0	22.3	Rubber Thermoplastic	$6.18
877	877	22.2	28.0	Black	5.5	14.2	25.0	11.7	Rubber Nitrile	$2.85
875	875	17.4	22.3	Black	4.8	11.1	19.2	9.7	Rubber Natural	$2.30
