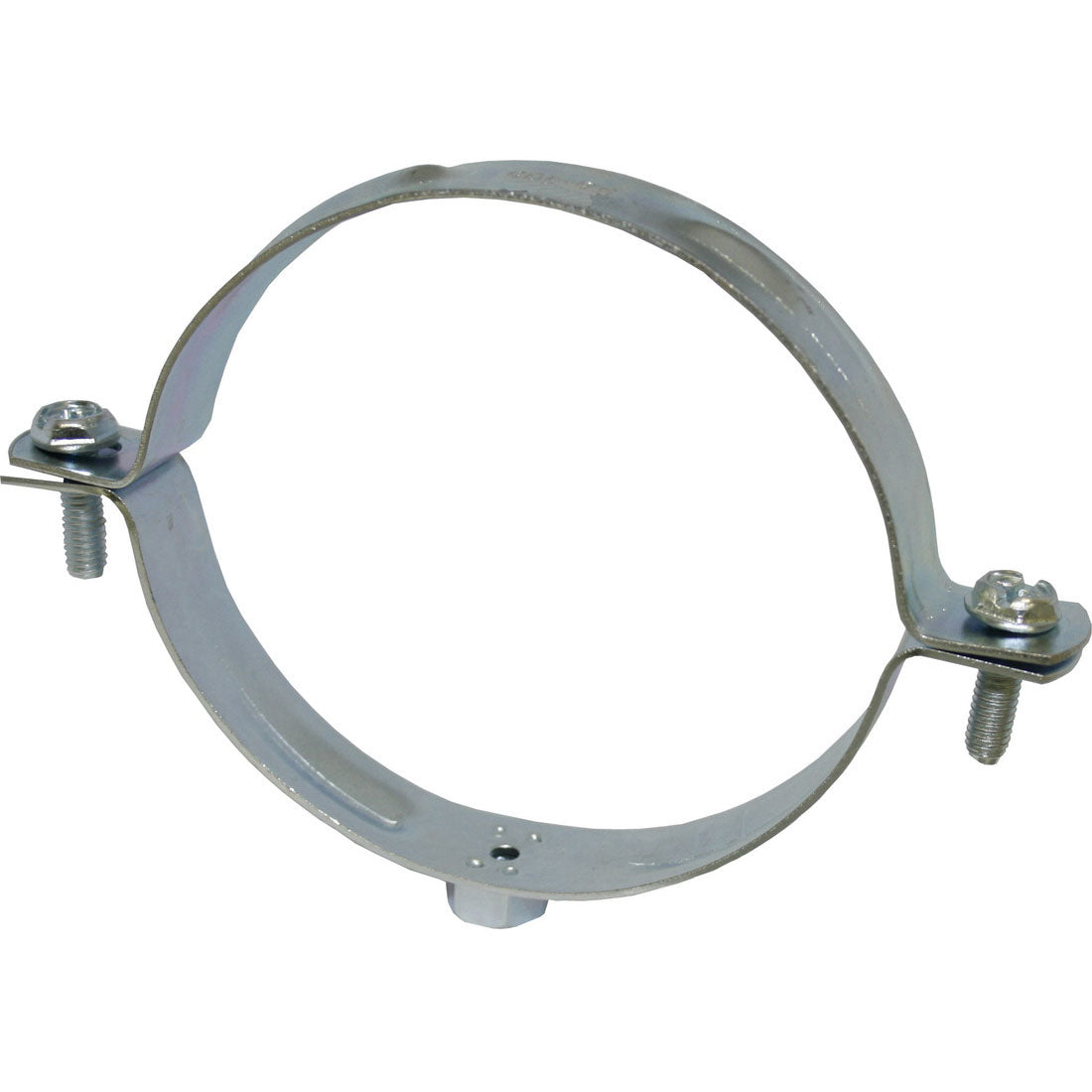

Bolt On Pipe Clamp M8 140mm

Name: Bolt On Pipe Clamp M8 140mm
Brand: Co-Mac
SKU: 4987
Price: 13.6 NZD
Availability: InStock

$13.60

Sale Sold out

+ GST

Code: 4987

• Zinc Plated pipe clamps (not Rubber lined)

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Holding a Pipe
Used On
Hoses, Brooms, Poles, Tubes, Conduit, Water Pipe, Air Pipe
Also Called
Holder Bat, Pipe Clamp, Pipe Clamps, O Clamp, Metal Bolt on Clamp, Hot Water Cylinder Clamp, Bolt on Cylinder Clamp

View product

Code: 4987

$13.60

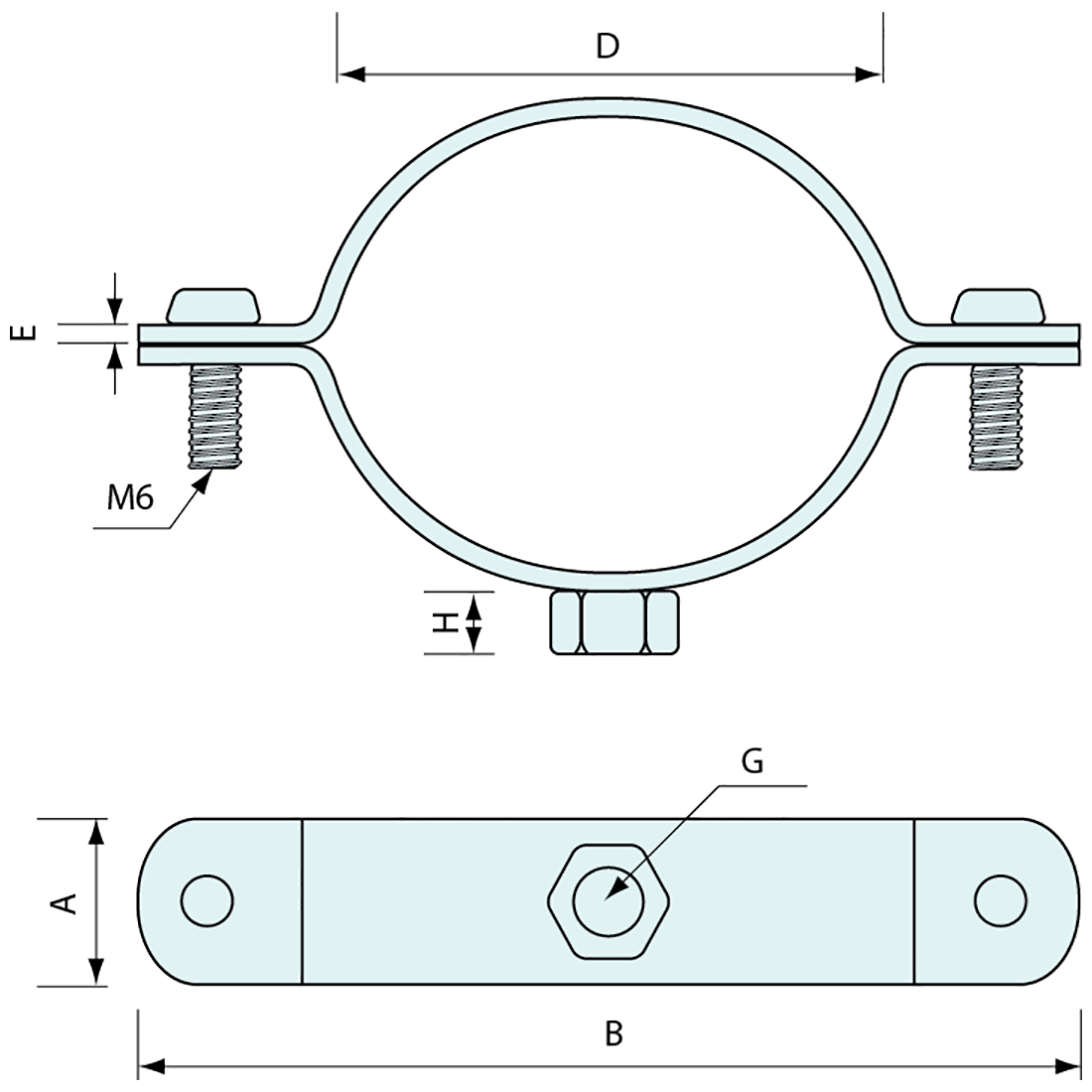

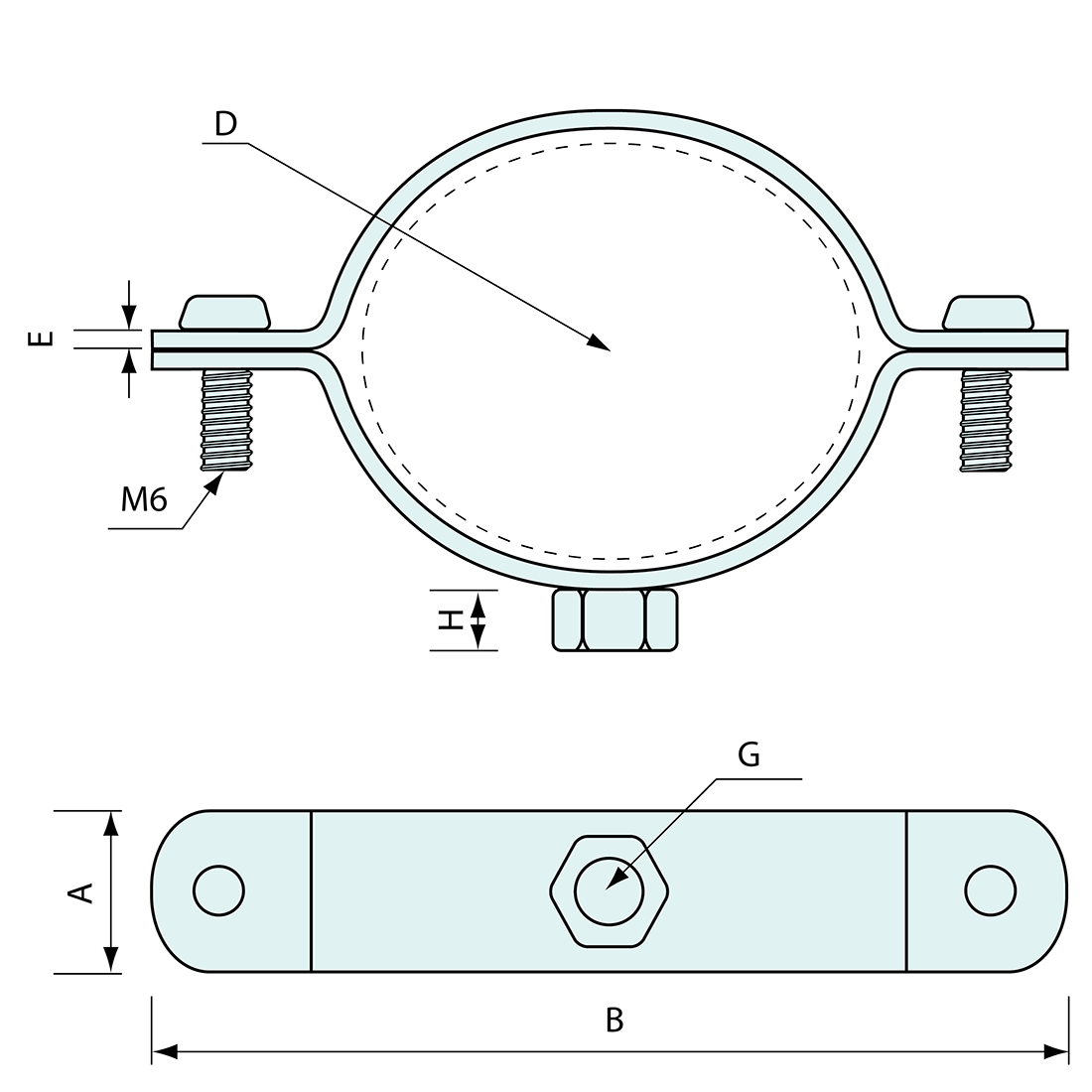

	SKU Products	A mm	B mm	Colour	E mm	H min mm	H max mm	H mm	Material	Nominal bore	Thread d	Price + GST
		Swipe for more measurements
4983	4983	19.0	92.0	Zinc Plated	1.3	48.0	50.0	8.0	Steel Zinc Plated	40.0	M8	$4.01
4991	4991	20.0	79.0	Zinc Plated	1.3	39.0	44.0	15.0	Steel Zinc Plated	32.0	M8/10	$3.92
4985	4985	19.0	145.0	Zinc Plated	1.3	100.0	102.0	8.0	Steel Zinc Plated		M8	$8.83
4982	4982	19.0	60.0	Zinc Plated	1.3	22.0	23.0	8.0	Steel Zinc Plated	15.0	M8	$3.39
4988	4988	19.0	220.0	Zinc Plated	1.3	160.0	153.0	8.0	Steel Zinc Plated	150.0	M8	$19.23
4992	4992	25.0	114.0	Zinc Plated	1.5	73.0	79.0	19.0	Steel Zinc Plated	65.0	M8/10	$7.38
4993	4993	25.0	132.0	Zinc Plated	1.5	87.0	95.0	19.0	Steel Zinc Plated	80.0	M8/10	$8.47
4986	4986	19.0	160.0	Zinc Plated	1.3	112.0	115.0	8.0	Steel Zinc Plated	100.0	M8	$9.53
4987	4987	19.0	185.0	Zinc Plated	1.3	140.0	142.0	8.0	Steel Zinc Plated	125.0	M8	$13.60
4981	4981	19.0	51.5	Zinc Plated	1.3	18.0	19.0	8.0	Steel Zinc Plated	12.0	M8	$3.30
4984	4984	19.0	107.0	Zinc Plated	1.3	60.0	63.0	8.0	Steel Zinc Plated	50.0	M8	$5.20
4990	4990	20.0	71.0	Zinc Plated	1.3	31.0	36.0	14.0	Steel Zinc Plated	25.0	M8/10	$3.74
4989	4989	20.0	67.0	Zinc Plated	1.3	23.0	27.0	13.0	Steel Zinc Plated	20.0	M8/10	$3.49
