Rod End Left Hand Zinc M12 Int Thread

Name: Rod End Left Hand Zinc M12 Int Thread
Brand: Co-Mac
SKU: 4844
Price: 58.08 NZD
Availability: InStock

$58.08

Sale Sold out

+ GST

Code: 4844

• Mild Steel Zinc Plated • Left Hand • 13˚ Tilting Angle • Pitch - Metric Coarse

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Providing mounting and limited freedom of movement for Gas Strut Ends
Used On
Door, Cover, Lid, Ute Lid, Ute cover, Window, Table, Furniture, Automation, RV, Machinery, Toolbox, Seats, Hatch, Compartment Door, Television Deployment System, Engine Cover, Cabinet, Tonneau Cover, Trailer, Counter balance, Maintenance Panel, Lift Assist, Speed and Movement Control
Also Called
Tie Rod Ends Internal, Spherical Rod Ends, Rod Ends, Hiem Joints, Rose Joints

View product

Code: 4844

$58.08

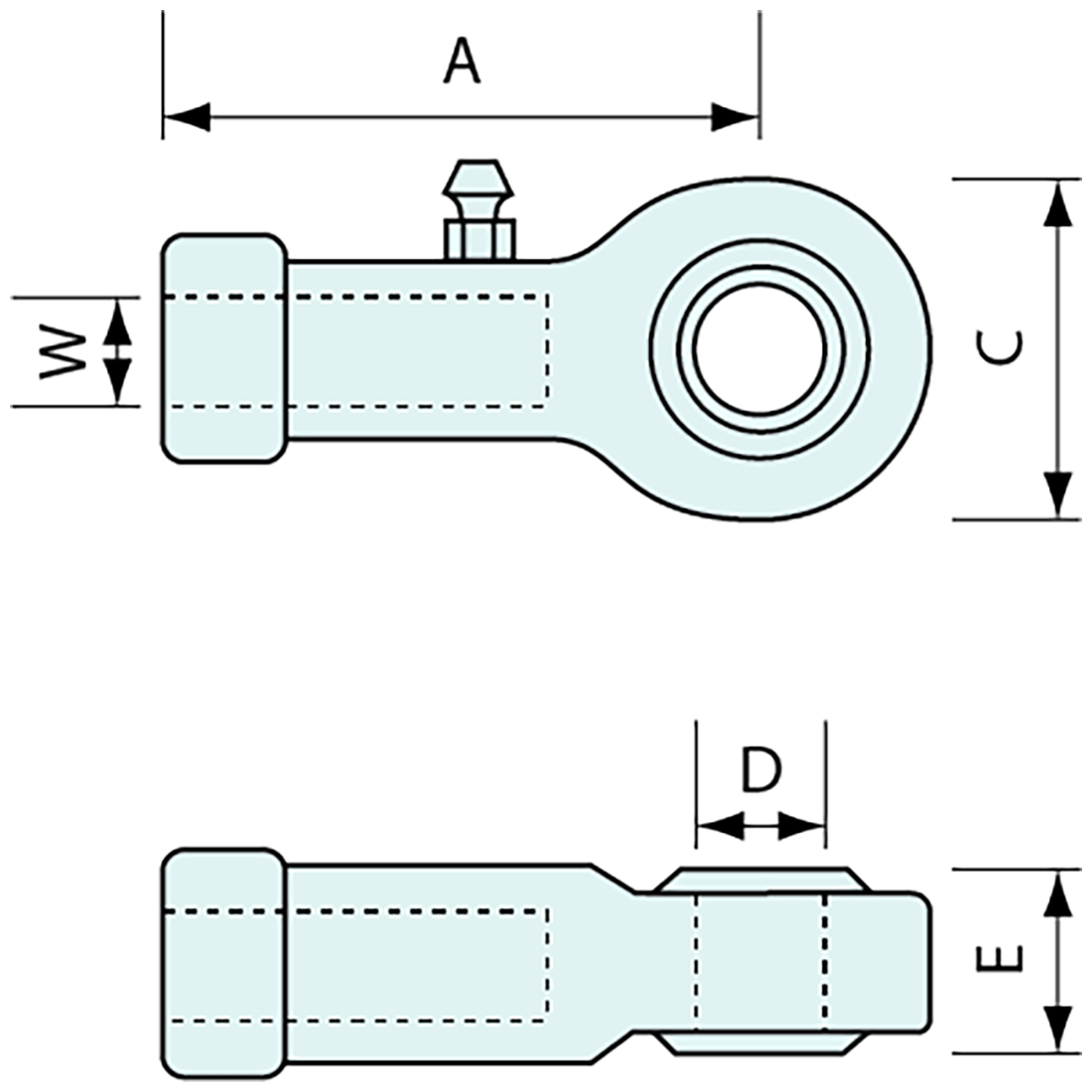

	SKU Products	A mm	Colour	C mm	D mm	E mm	Material	Thread W	Price + GST
		Swipe for more measurements
4841	4841	30.0	Zinc Plated	19.0	6.0	9.0	Steel Zinc Plated	M6	$40.26
4845	4845	64.0	Zinc Plated	38.0	16.0	21.0	Steel Zinc Plated	M16	$79.45
4844	4844	51.0	Zinc Plated	30.0	12.0	16.0	Steel Zinc Plated	M12	$58.08
4840	4840	26.0	Zinc Plated	16.0	5.0	8.0	Steel Zinc Plated	M5	$37.30
4843	4843	45.0	Zinc Plated	27.0	10.0	14.0	Steel Zinc Plated	M10	$49.52
4842	4842	36.0	Zinc Plated	23.0	8.0	12.0	Steel Zinc Plated	M8	$46.47
