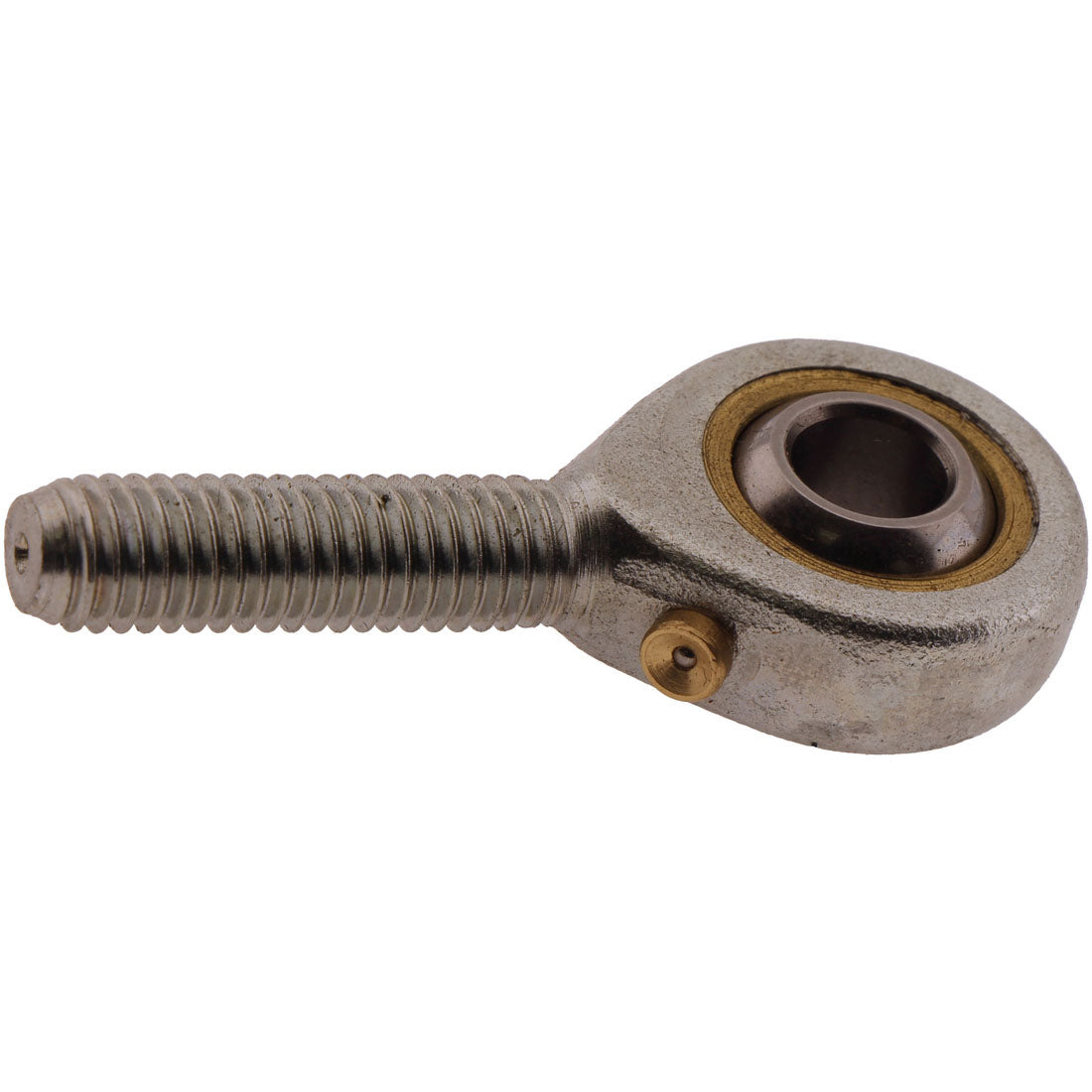

Rod End Right Hand Zinc M8 Ext Thread

Name: Rod End Right Hand Zinc M8 Ext Thread
Brand: Co-Mac
SKU: 4832
Price: 46.05 NZD
Availability: InStock

$46.05

Sale Sold out

+ GST

Code: 4832

• Mild Steel Zinc Plated • Right Hand • 13˚ Tilting Angle • Pitch - Metric Coarse

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Providing mounting and limited freedom of movement for Gas Strut Ends
Used On
Door, Cover, Lid, Ute Lid, Ute cover, Window, Table, Furniture, Automation, RV, Machinery, Toolbox, Seats, Hatch, Compartment Door, Television Deployment System, Engine Cover, Cabinet, Tonneau Cover, Trailer, Counter balance, Maintenance Panel, Lift Assist, Speed and Movement Control
Also Called
Tie Rod Ends Internal, Spherical Rod Ends, Rod Ends, Hiem Joints, Rose Joints

View product

Code: 4832

$46.05

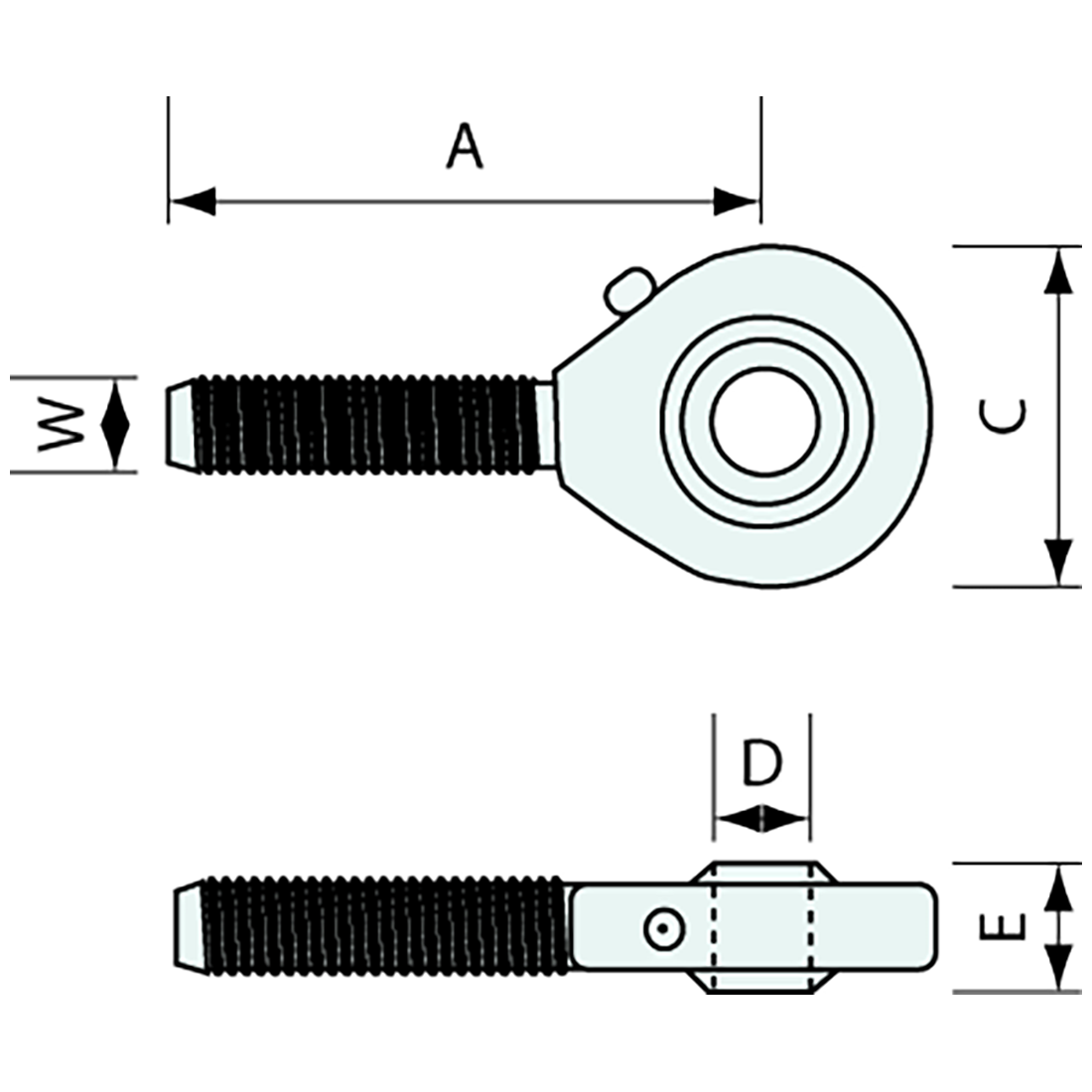

	SKU Products	A mm	Colour	C mm	D mm	E mm	Material	Thread W	Price + GST
		Swipe for more measurements
4833	4833	49.0	Zinc Plated	27.0	10.0	14.0	Steel Zinc Plated	M10	$50.38
4832	4832	43.0	Zinc Plated	23.0	8.0	12.0	Steel Zinc Plated	M8	$46.05
4835	4835	68.0	Zinc Plated	38.0	16.0	21.0	Steel Zinc Plated	M16	$79.94
4831	4831	37.0	Zinc Plated	18.5	6.0	9.0	Steel Zinc Plated	M6	$39.84
4834	4834	58.0	Zinc Plated	32.0	12.0	16.0	Steel Zinc Plated	M12	$57.77
4830	4830	34.0	Zinc Plated	17.0	5.0	8.0	Steel Zinc Plated	M5	$37.09
