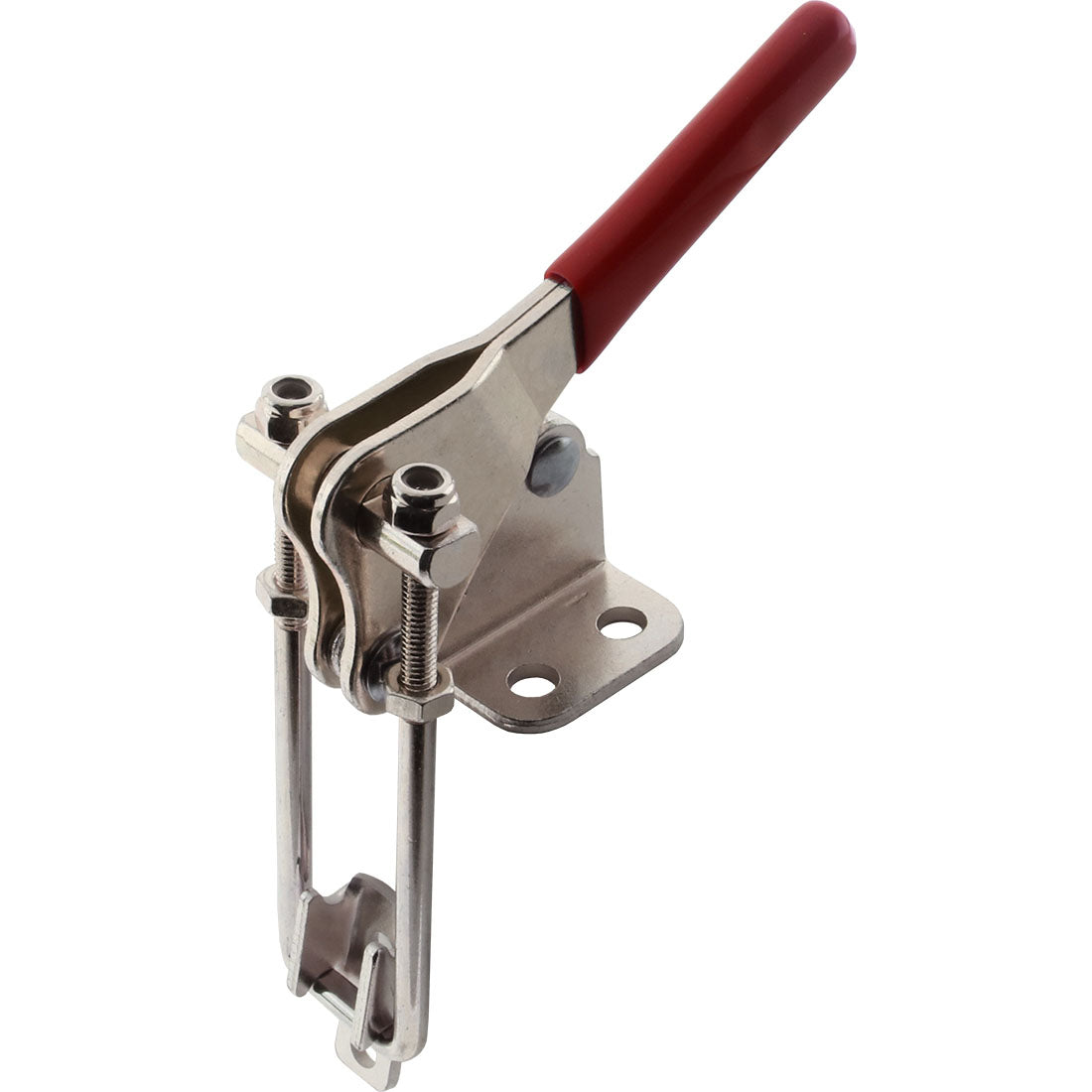

Hold Down Latch Stainless Steel 90deg 79mm

Name: Hold Down Latch Stainless Steel 90deg 79mm
Brand: Co-Mac
SKU: 4296
Price: 106.03 NZD
Availability: InStock

$106.03

Sale Sold out

+ GST

Code: 4296

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Securing, Holding, Assembling, Temporary Assembly
Used On
Rotational Moulding, Bonnets, Lid, Cover, Access Panel, Hatch, Boat, Jig, Fixture, Agricultural Machinery
Also Called
U Bolt Latch, Tipping Trailer Latch, Rotational Mould Latches, Hold Down Latches

View product

Code: 4296

$106.03

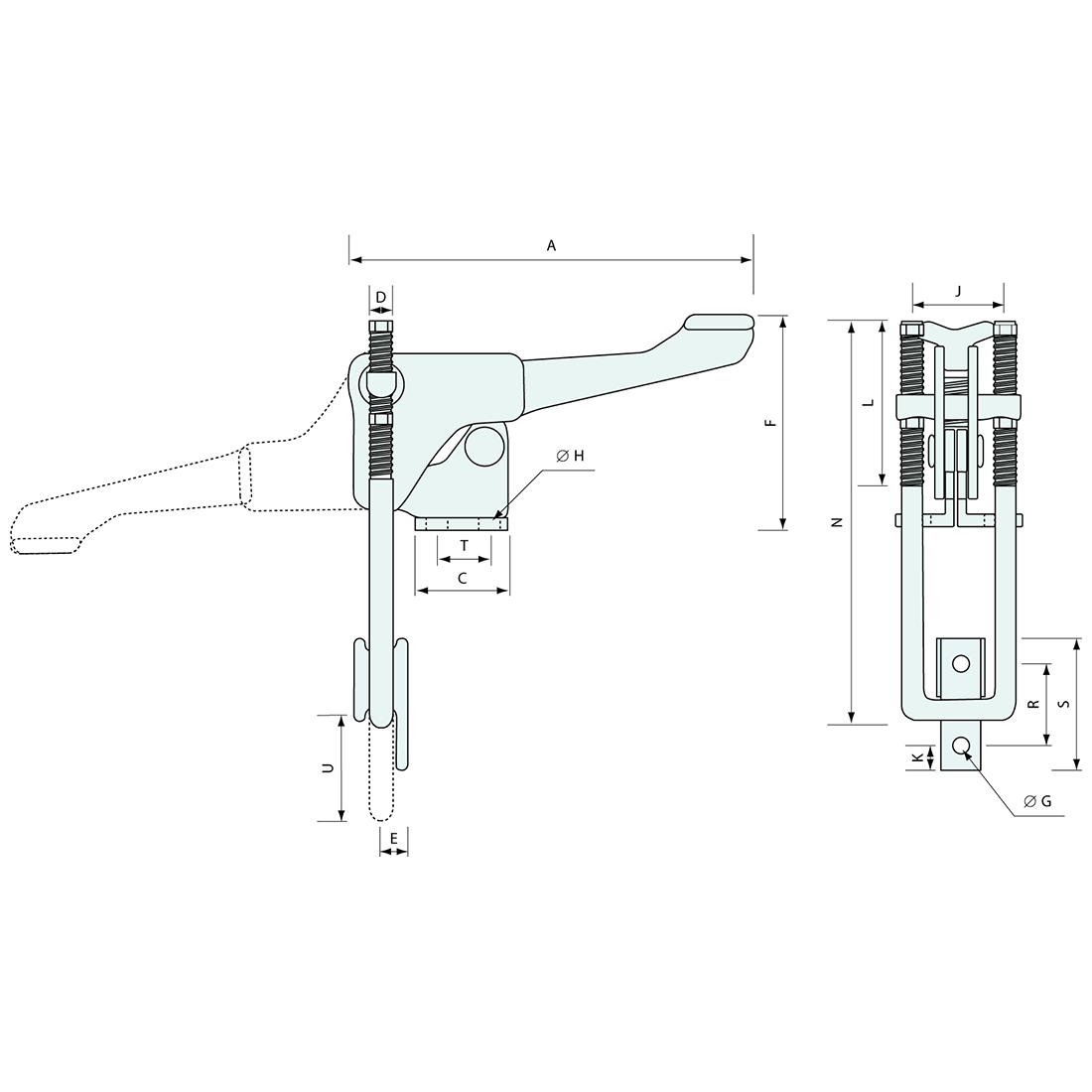

	SKU Products	A mm	Colour	C mm	E mm	F mm	G mm	H mm	J mm	K mm	Load rating kg	L mm	Material	N mm	R mm	S mm	Thread d	T mm	U mm	Price + GST
		Swipe for more measurements
5887	5887	124.0	Stainless Steel	33.3	8.7	66.0	5.5	7.1	25.0	7.1		40.5	Zinc Plated	110.0	20.0	38.1	M6	19.1	50.0	$63.97
4298	4298	133.5	Stainless Steel	47.6	12.7	95.1	8.7	8.7	45.3	9.5	900.0	58.0	Stainless Steel	150.0	27.0	54.0	M8	31.8	60.0	$165.91
4296	4296	81.0	Stainless Steel	26.0	4.7	55.0	4.4	5.3	21.0	4.0	225.0	26.5	Stainless Steel	77.0	14.5	25.4	M4	13.0	40.0	$106.03
4292	4292	124.0	Zinc Plated	33.3	8.7	61.9	5.5	7.1	25.0	7.1	450.0	40.5	Steel Zinc Plated	110.0	20.0	38.1	M6	19.1	50.0	$52.29
4297	4297	123.0	Stainless Steel	33.3	8.7	66.0	5.5	7.1	25.0	7.1	450.0	41.0	Stainless Steel	110.0	21.0	38.1	M6	19.1	50.0	$122.97
4293	4293	133.5	Zinc Plated	47.6	12.7	87.1	8.7	8.6	45.3	9.5	900.0	58.0	Steel Zinc Plated	154.0	27.0	54.0	M8	31.8	60.0	$78.81
4291	4291	79.0	Zinc Plated	26.0	4.7	53.3	4.4	5.3	22.0	4.0	225.0	26.5	Steel Zinc Plated	78.5	14.5	25.4	M4	13.0	40.0	$44.12
