Hold Down Latch Stainless Steel 105mm

Name: Hold Down Latch Stainless Steel 105mm
Brand: Co-Mac
SKU: 4223
Price: 102.24 NZD
Availability: InStock

$102.24

Sale Sold out

+ GST

Code: 4223

• Adjustable reach U Bolt • 160 kg rating

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Securing, Holding, Assembling, Temporary Assembly
Used On
Rotational Moulding, Bonnets, Lid, Cover, Access Panel, Hatch, Boat, Jig, Fixture, Agricultural Machinery
Also Called
U Bolt Latch, Tipping Trailer Latch, Rotational Mould Latches, Hold Down Latches

View product

Code: 4223

$102.24

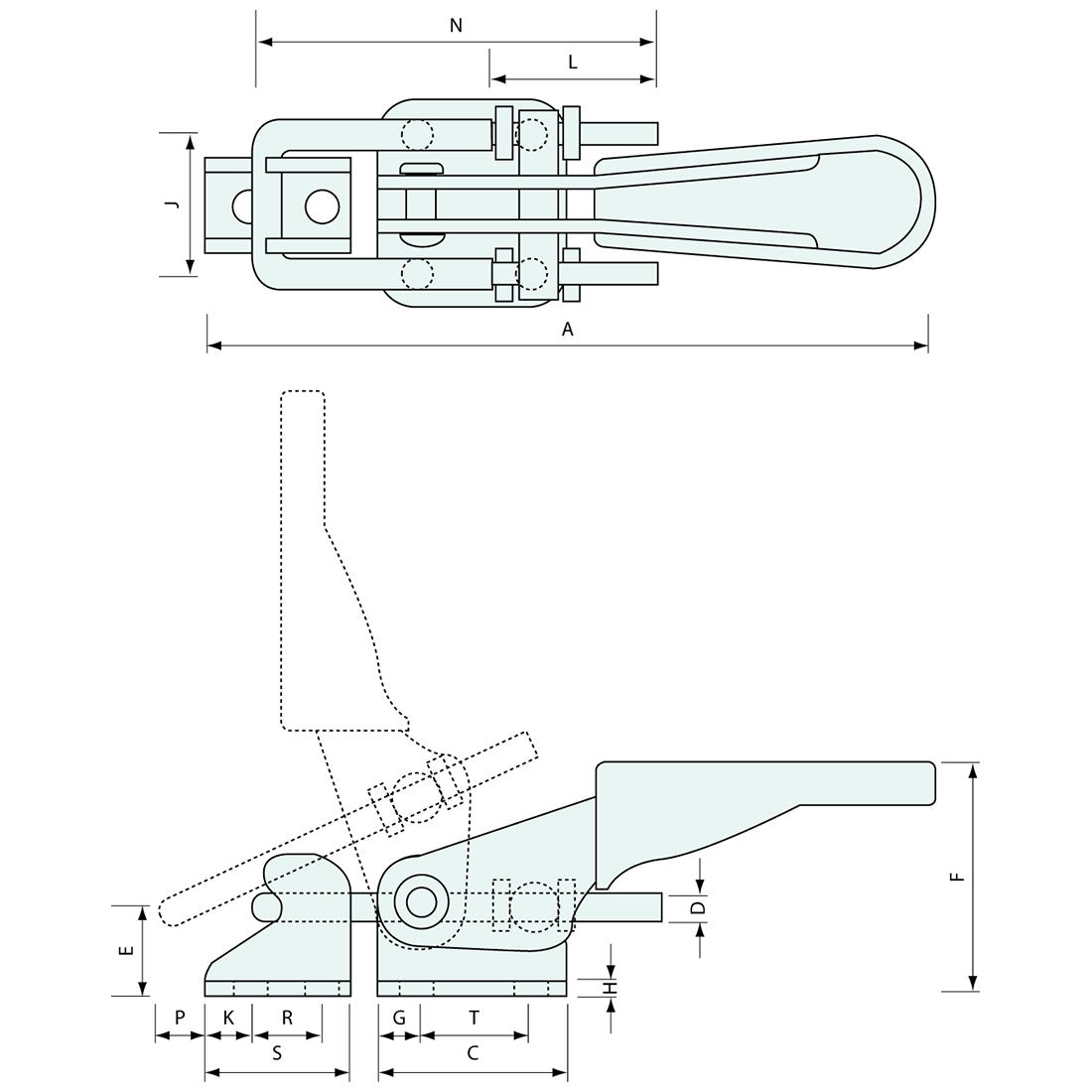

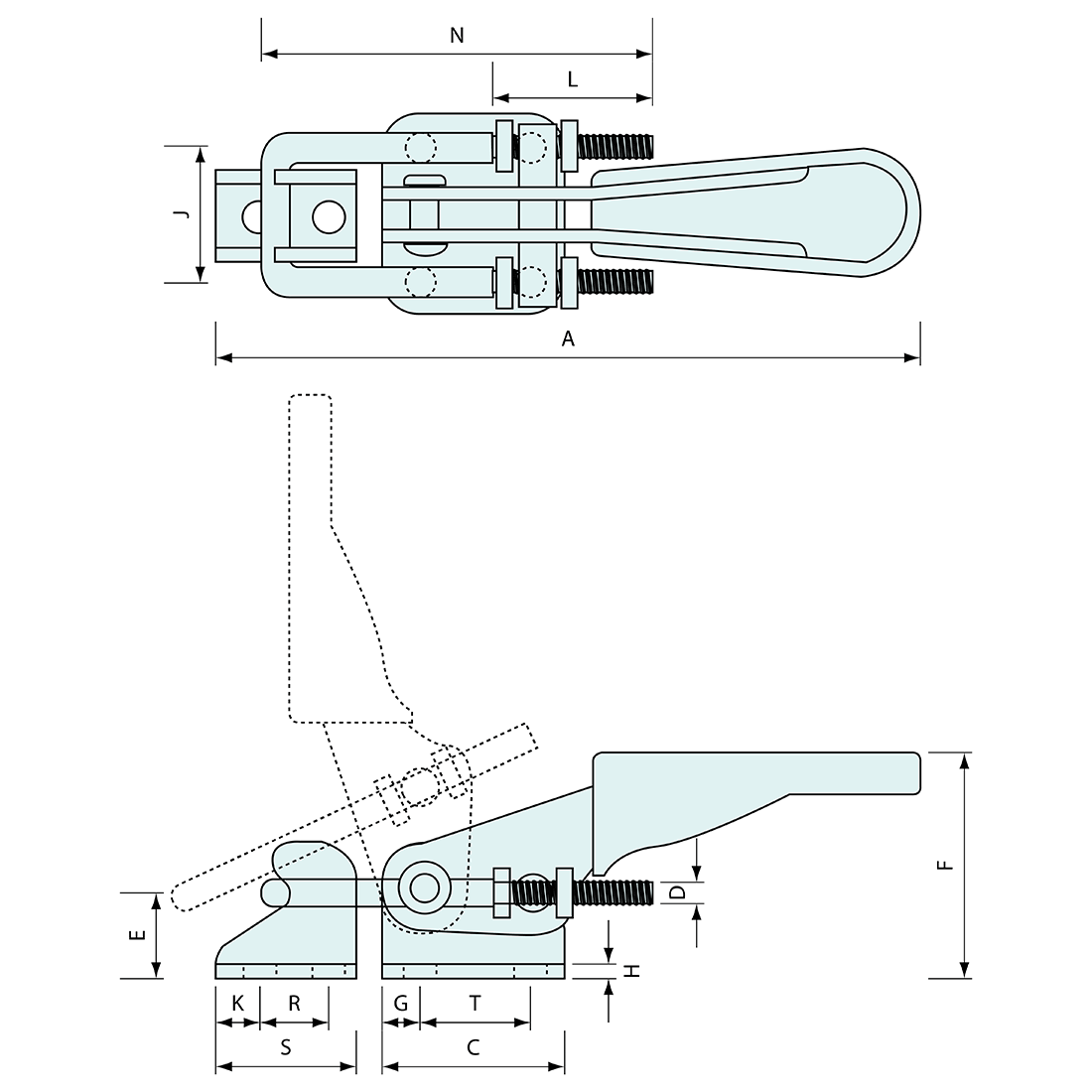

	SKU Products	A mm	Colour	C mm	E mm	F mm	G mm	H mm	J mm	K mm	Load rating kg	L mm	Material	N mm	P mm	R mm	S mm	Thread d	T mm	Price + GST
		Swipe for more measurements
4223	4223	105.0	Stainless Steel	26.0	12.0	30.0	5.0	2.0	19.0	6.0	160.0	24.0	Stainless Steel	57.0	28.0	10.0	20.0	M4	16.0	$102.24
4225	4225	150.0	Stainless Steel	40.0	15.0	40.0	6.0	3.0	32.0	6.5	320.0	38.0	Stainless Steel	87.0	55.0	11.5	25.0	M5	19.0	$121.06
4222	4222	105.0	Zinc Plated	26.0	12.0	30.0	5.0	2.0	19.0	6.0	160.0	24.0	Steel Zinc Plated	57.0	28.0	10.0	20.0	M4	16.0	$39.74
4221	4221	235.0	Stainless Steel	60.0	23.0	75.0	9.0	4.0	38.0	9.5	700.0	52.0	Stainless Steel	115.0	80.0	19.0	38.0	M8	41.0	$164.45
4224	4224	150.0	Zinc Plated	40.0	15.0	40.0	6.0	3.0	32.0	6.5	320.0	38.0	Steel Zinc Plated	87.0	55.0	11.5	25.0	M5	19.0	$42.26
4220	4220	235.0	Zinc Plated	60.0	23.0	75.0	9.0	4.0	38.0	9.5	700.0	52.0	Steel Zinc Plated	115.0	80.0	19.0	38.0	M8	41.0	$72.18
