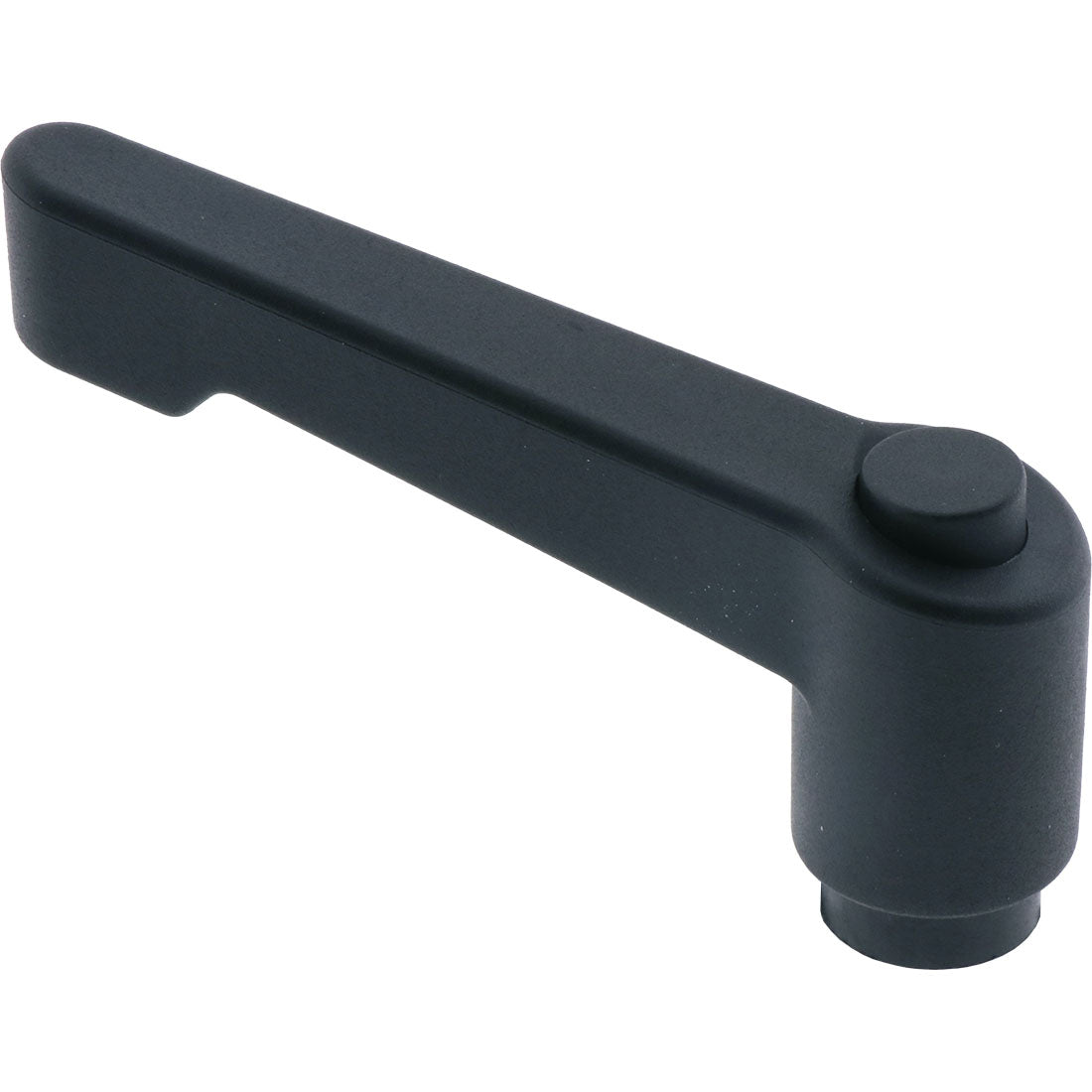

Clamp Lever Stainless Steel Int Thread Nylon Black Handle M10

Name: Clamp Lever Stainless Steel Int Thread Nylon Black Handle M10
Brand: Co-Mac
SKU: 2774
Price: 23.26 NZD
Availability: InStock

$23.26

Sale Sold out

+ GST

Code: 2774

• Lift handle or push button to reposition lever

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Gripping, Clamping, Adjusting, Quick Release, Turning
Used On
Machinery, Furniture, Tripods, Jigs, Fixtures, T Slot, Router Table, Music Stands, Speaker Stands, Microphone Stands, Stages, Bicycle, Gun Scopes
Also Called
Spring Loaded Clamp Lever, Clamping Levers, Kipp Handles

Clamp Levers Internal Thread Variations

View product

Code: 2774

Clamp Lever Stainless Steel Int Thread Nylon Black Handle M10

$23.26

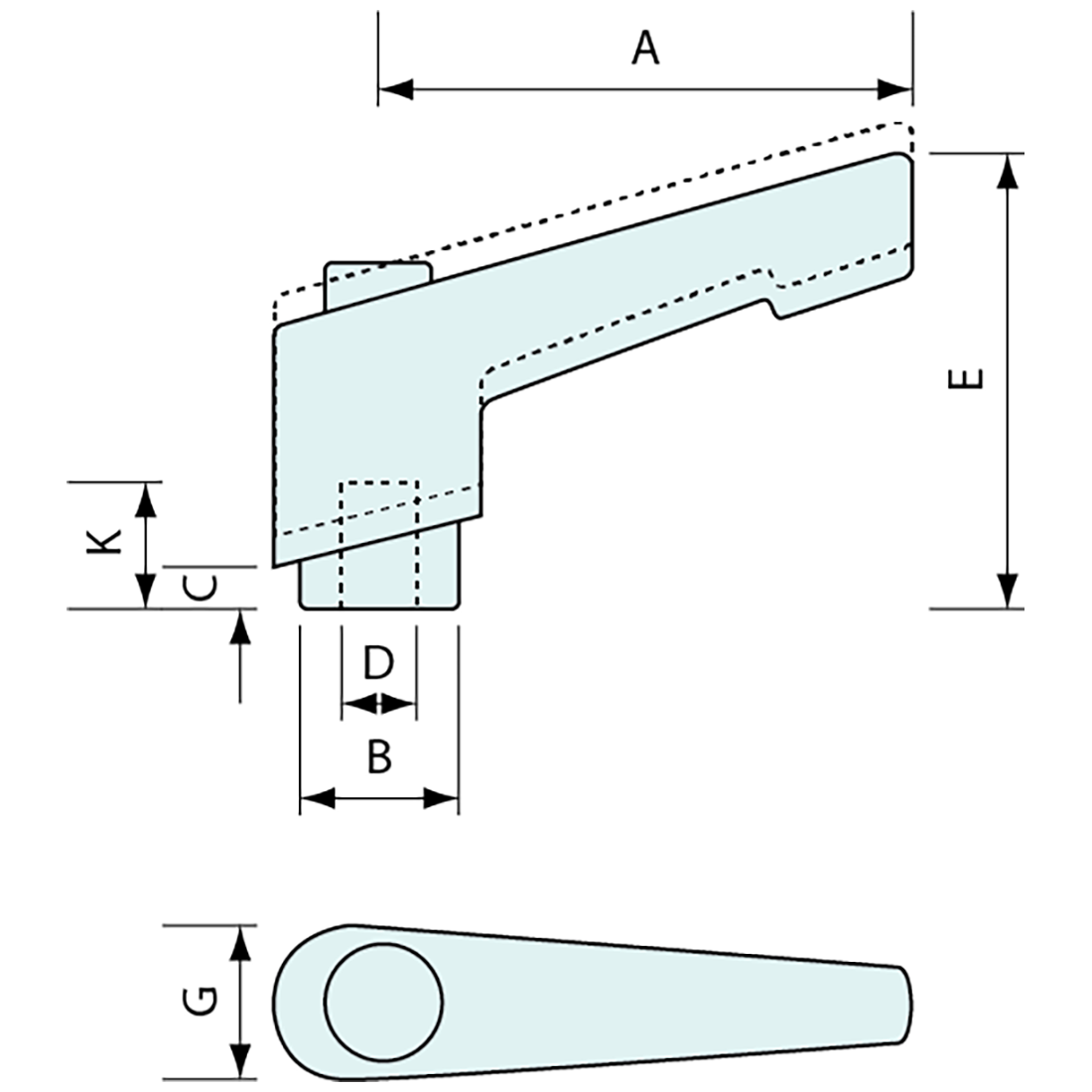

	SKU Products	A mm	B mm	Colour	C mm	E mm	G mm	K mm	Material	Thread d	Thread Material	Price + GST
		Swipe for more measurements
2554	2554	65.0	13.5	Black	6.0	45.0	20.0	12.0	Nylon Glass Reinforced Handle	M8	Zinc	$11.87
2558	2558	90.0	19.0	Black	8.0	64.0	27.0	18.0	Nylon Glass Reinforced Handle	M12	Zinc	$18.58
2754	2754	78.0	16.0	Zinc	7.5	52.0	23.0	15.0	Zinc Diecast Handle	M10	Steel	$22.64
2771	2771	42.0	10.0	Black	3.0	33.0	15.0	10.0	Nylon Glass Reinforced Handle	M5	Stainless Steel	$19.40
2772	2772	42.0	10.0	Black	4.0	33.0	15.0	11.0	Nylon Glass Reinforced Handle	M6	Stainless Steel	$19.40
2752	2752	42.0	10.0	Zinc	4.5	33.0	15.0	9.0	Zinc Diecast Handle	M6	Steel	$16.42
2750	2750	42.0	10.0	Zinc	3.5	33.0	15.0	7.0	Zinc Diecast Handle	M4	Steel	$16.42
2552	2552	42.0	10.0	Black	4.0	33.0	15.0	10.0	Nylon Glass Reinforced Handle	M6	Zinc	$10.24
2557	2557	78.0	16.0	Black	8.0	52.0	23.0	19.0	Nylon Glass Reinforced Handle	3/8"UNC	Zinc	$16.37
2753	2753	65.0	13.5	Zinc	6.0	45.0	20.0	12.0	Zinc Diecast Handle	M8	Steel	$17.99
2774	2774	78.0	16.0	Black	7.5	52.0	23.0	15.0	Nylon Glass Reinforced Handle	M10	Stainless Steel	$23.26
2553	2553	42.0	10.0	Black	3.5	33.0	15.0	9.0	Nylon Glass Reinforced Handle	1/4"UNC	Zinc	$12.02
2551	2551	42.0	10.0	Black	4.0	33.0	15.0	8.0	Nylon Glass Reinforced Handle	M5	Zinc	$10.24
2775	2775	90.0	19.0	Black	8.0	64.0	27.0	18.0	Nylon Glass Reinforced Handle	M12	Stainless Steel	$28.25
2751	2751	42.0	10.0	Zinc	4.0	33.0	15.0	10.0	Zinc Diecast Handle	M5	Steel	$16.42
2773	2773	65.0	13.5	Black	6.5	45.0	20.0	11.0	Nylon Glass Reinforced Handle	M8	Stainless Steel	$20.00
2770	2770	42.0	10.0	Black	3.0	33.0	15.0	10.0	Nylon Glass Reinforced Handle	M4	Stainless Steel	$19.40
2556	2556	78.0	20.0	Black	8.0	52.0	23.0	18.0	Nylon Glass Reinforced Handle	M10	Zinc	$14.56
2755	2755	90.0	19.0	Zinc	9.0	64.0	27.0	20.0	Zinc Diecast Handle	M12	Steel	$27.48
2550	2550	42.0	10.0	Black	3.5	33.0	15.0	7.0	Nylon Glass Reinforced	M4	Zinc	$10.24
