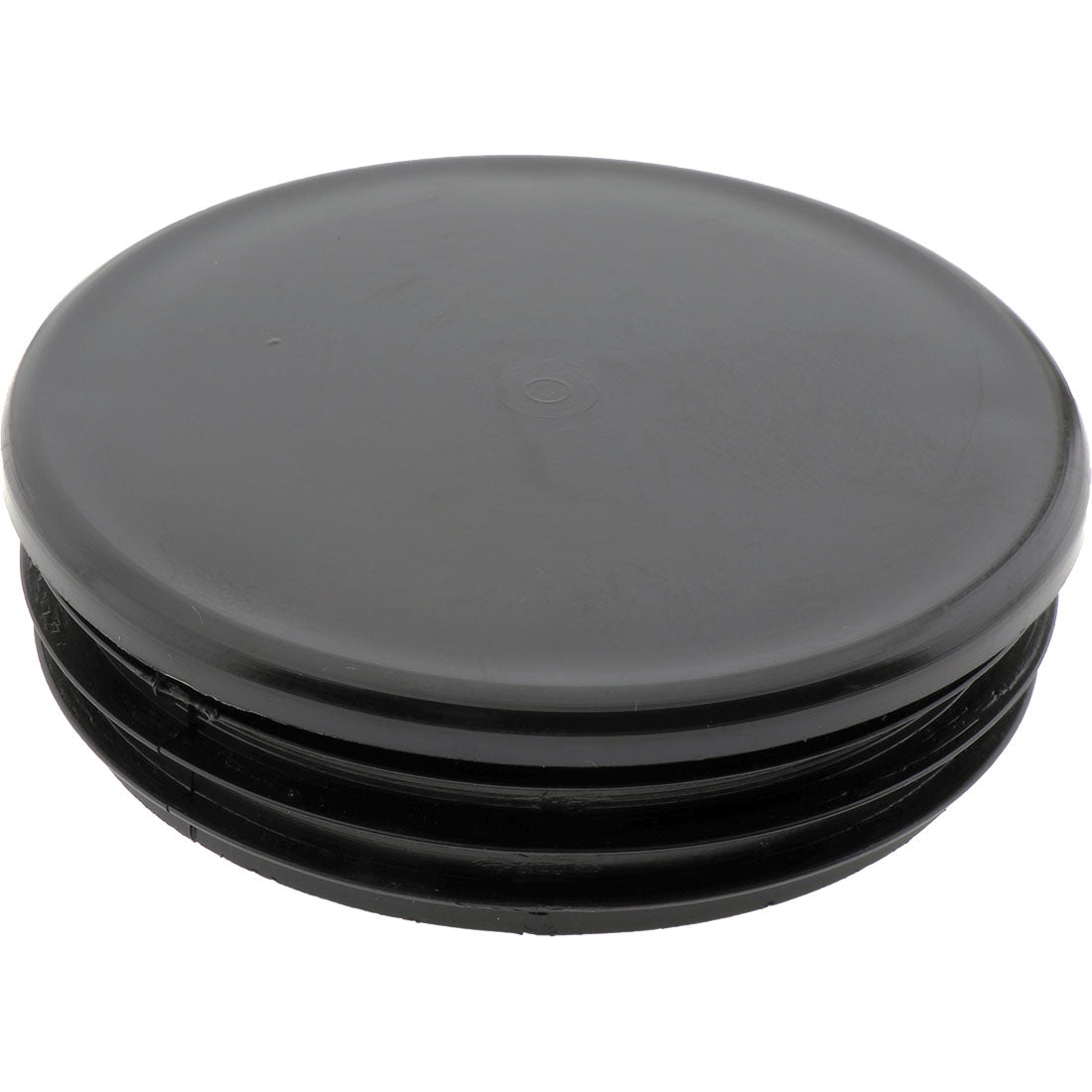

Round Plug Ribbed Black 90.0mm

Name: Round Plug Ribbed Black 90.0mm
Brand: Co-Mac
SKU: 240
Price: 7.96 NZD
Availability: InStock

$7.96

Sale Sold out

+ GST

Code: 240

For 16-18 gauge tube
Plastic
Standard packs: 50 plugs (available in singles also)

Round plugs are used for blanking, finishing and terminating tubes as well as filling holes. Commonly used on tables, benches, furniture and marine applications — also known as inserts, round tube inserts and circular plugs.

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Plug Size Calculator

Select shape:

Outside Diameter (OD) (mm)

Wall Thickness (mm)

Inside Diameter (ID) (mm)

Matching Plugs

Filter by colour:

Your Specifications

Shape:

Outside Diameter (OD):

Inside Diameter (ID):

Wall Thickness:

Tolerance: ±1 mm on outside size

Used For
Blanking tubes, Finishing tubes, Terminating tubes, Filling holes
Used On
Table, Bench, Furniture, Safety Frame, Shelving, Display Unit, Tube and Pipe Products, Marine Applications
Also Called
Insert, Round Plug, Round Tube Insert, Round Plug, Circular Plug

Round Plugs Black Variations

View product

Code: 240

Round Plug Ribbed Black 90.0mm

$7.96

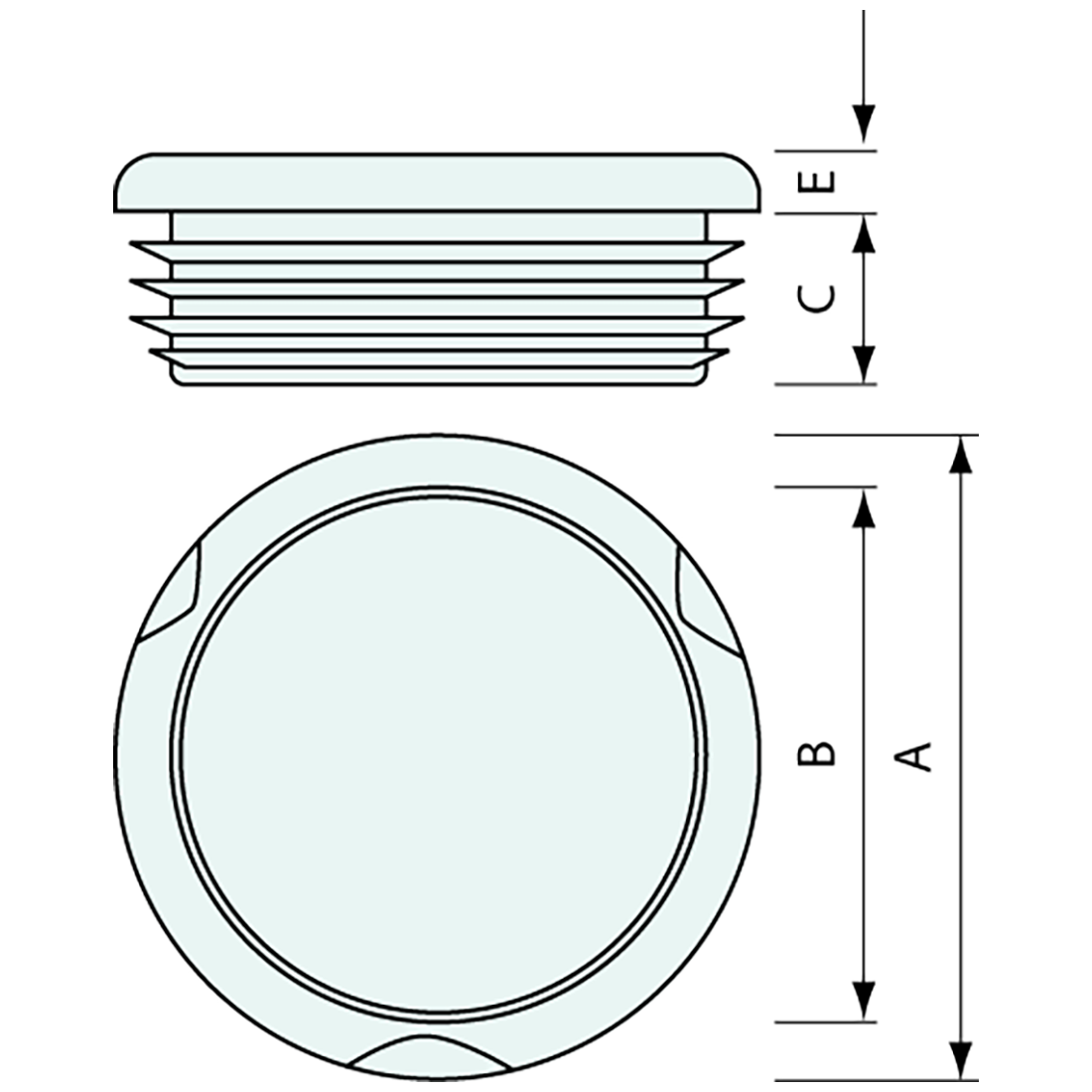

	SKU Products	A mm	B min mm	B max mm	Colour	C mm	E mm	Material	Sides	Price + GST
		Swipe for more measurements
299	299	48.5	39.0	42.5	Black	15.5	3.8	Plastic	Smooth	$2.48
230	230	60.3	52.0	57.6	Black	14.5	5.0	Plastic	Ribbed	$2.33
210	210	30.0	23.0	28.0	Black	11.5	5.0	Plastic	Ribbed	$0.83
204	204	28.7	23.3	26.5	Black	15.0	4.0	Plastic	Ribbed	$0.51
202	202	21.5	16.4	20.4	Black	12.0	3.0	Plastic	Ribbed	$0.32
234	234	12.0	8.5	10.3	Black	7.0	2.0	Plastic	Ribbed	$0.29
243	243	110.0	99.0	106.0	Black	28.0	6.5	Plastic	Ribbed	$12.66
216	216	75.0	64.0	70.2	Black	20.0	7.5	Plastic	Ribbed	$3.34
238	238	80.0	73.0	77.0	Black	20.5	4.0	Plastic	Ribbed	$3.34
240	240	90.0	80.0	86.0	Black	20.0	5.0	Plastic	Ribbed	$7.96
203	203	25.4	20.3	23.7	Black	12.5	5.0	Plastic	Ribbed	$0.30
224	224	60.8	51.0	54.5	Black	16.5	3.5	Plastic	Smooth	$2.88
205	205	31.8	28.0	30.0	Black	18.5	4.0	Plastic	Ribbed	$0.62
209	209	12.7	10.0	10.0	Black	9.5	2.0	Plastic	Smooth	$0.30
200	200	16.0	10.5	14.4	Black	12.0	4.0	Plastic	Ribbed	$0.33
219	219	37.0	30.0	35.0	Black	12.0	5.0	Plastic	Ribbed	$1.22
245	245	42.0	37.0	40.5	Black	11.5	5.0	Plastic	Ribbed	$1.53
237	237	70.0	59.5	66.0	Black	20.0	5.0	Plastic	Ribbed	$3.21
206	206	38.1	32.5	36.0	Black	19.0	4.0	Plastic	Ribbed	$0.66
273	273	38.1	30.0	33.0	Black	14.0	4.0	Plastic	Ribbed	$1.34
213	213	40.0	32.0	38.0	Black	11.5	5.0	Plastic	Ribbed	$0.98
233	233	10.0	5.5	8.0	Black	6.5	1.5	Plastic	Ribbed	$0.28
236	236	65.0	56.0	62.0	Black	14.0	6.0	Plastic	Ribbed	$2.75
207	207	50.8	45.4	49.0	Black	18.5	5.0	Plastic	Ribbed	$0.91
217	217	44.5	39.0	42.0	Black	19.0	3.5	Plastic	Ribbed	$1.48
222	222	32.0	30.0	30.5	Black	14.5	3.0	Plastic	Smooth	$1.17
208	208	76.2	71.0	73.5	Black	19.5	5.5	Plastic	Ribbed	$1.57
267	267	55.0	46.5	49.0	Black	15.1	5.0	Plastic		$2.03
231	231	14.7	11.3	11.4	Black	7.0	5.0	Plastic	Smooth	$0.67
201	201	18.2	14.0	17.5	Black	12.0	3.0	Plastic	Ribbed	$0.30
218	218	34.8	28.0	32.5	Black	11.0	5.0	Plastic	Ribbed	$1.17
211	211	35.1	30.8	32.6	Black	17.5	4.0	Plastic	Ribbed	$0.98
242	242	105.0	95.0	100.0	Black	29.0	6.0	Plastic	Ribbed	$11.51
239	239	85.0	74.0	82.0	Black	21.5	6.0	Plastic	Ribbed	$6.64
229	229	16.0	12.0	13.7	Black	9.5	2.5	Plastic	Smooth	$0.37
258	258	75.8	68.5	70.7	Black	20.0	5.0	Plastic	Smooth	$3.35
227	227	62.0	57.0	58.0	Black	15.0	4.5	Plastic	Smooth	$2.50
220	220	47.7	42.5	45.0	Black	18.0	4.0	Plastic	Ribbed	$1.57
275	275	100.0	91.0	96.5	Black	28.0	7.0	Plastic	Ribbed	$9.53
226	226	53.5	51.1	51.7	Black	13.0	4.5	Plastic	Smooth	$1.57
221	221	60.3	55.0	58.0	Black	17.0	4.0	Plastic	Ribbed	$2.07
235	235	55.0	49.0	52.5	Black	11.5	5.0	Plastic	Ribbed	$2.01
232	232	69.0	59.0	60.0	Black	17.0	4.5	Plastic	Smooth	$3.09
284	284	50.0	37.0	44.5	Black	32.0	7.7	Plastic		$1.90
241	241	95.0	85.0	92.0	Black	21.0	8.0	Plastic	Ribbed	$9.39
214	214	20.2	18.0	18.3	Black	16.0	2.5	Plastic	Smooth Release	$1.45
223	223	27.5	22.6	22.8	Black	7.0	2.0	Plastic	Smooth	$0.79
259	259	44.5	36.5	39.5	Black	14.0	5.0	Plastic	Ribbed	$2.20
246	246	47.7	42.0	45.5	Black	11.0	5.0	Plastic	Ribbed	$1.57
244	244	120.0	110.0	116.0	Black	29.0	6.0	Plastic	Ribbed	$14.93
