Adjustable Foot Plastic Zinc Thread 38mm Base M10
Used On:
• Cabinet • Furniture • Chair • Table • Bench • Ramp • Appliances • Machine Guard
Also Called:
• Adjustable Foot • Bolt Feet • Adjustable Feet
• Cabinet • Furniture • Chair • Table • Bench • Ramp • Appliances • Machine Guard
Also Called:
• Adjustable Foot • Bolt Feet • Adjustable Feet
• Load rating: 40kg
NZ$5.80 + GST
SKU
2001
Technical info for the current product is indicated by the blue marker. Related product(s) may be shown for your convenience.

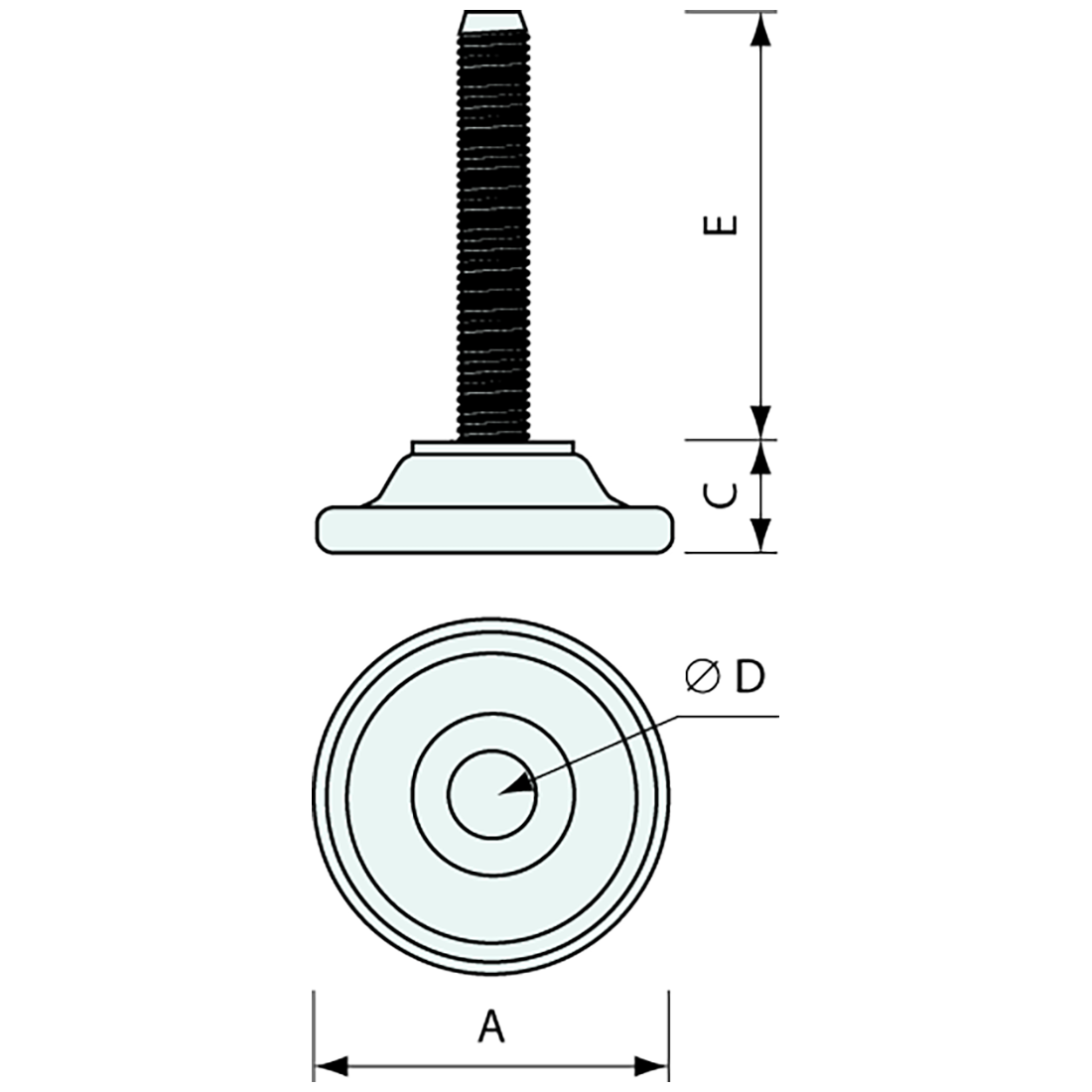

Code | Price ea. + GST | Colour | Material | Load Rating kg | Thread D | Thread Material | A mm | C mm | E mm | |
---|---|---|---|---|---|---|---|---|---|---|
2001 | 5.8 | Plastic Base, Zinc Thread | 40 | M10 | Zinc | 38 | 12 | 46 | ||
2002 | 6.71 | Plastic Base, Zinc Thread | 40 | M12 | Zinc | 38 | 12 | 64 | ||
2003 | 4.33 | Plastic Base, Zinc Thread | 40 | M5 | Zinc | 25 | 10 | 26 | ||
2004 | 4.33 | Plastic Base, Zinc Thread | 40 | M6 | Zinc | 25 | 9 | 32 | ||
2005 | 4.33 | Plastic Base, Zinc Thread | 40 | M8 | Zinc | 38 | 10 | 38 | ||
2015 | 4.19 | Plastic Base, Zinc Thread | 40 | M6 | Zinc | 25 | 11 | 17 | ||
2016 | 3.54 | Plastic Base, Zinc Thread | 40 | M8 | Zinc | 25 | 10 | 10 | ||
2028 | 4.17 | Plastic Base, Zinc Thread | 40 | M8 | Zinc | 19 | 10 | 32 | ||
2029 | 4.73 | Plastic Base, Zinc Thread | 40 | M8 | Zinc | 38 | 12 | 75 |
