What are Linear Slides? A Simple Guide for Engineering Hardware Applications
What Is a Linear Slide?
A linear slide is a mechanical component that provides controlled movement in a straight line. It is widely used in engineering hardware across New Zealand in applications where smooth, accurate, and reliable motion is required. Linear slides help guide movement while reducing friction and maintaining stability.
How do Linear Slides Work?
A linear slide consists of a fixed rail and a moving element that travels along it. The travel mechanism can use ball bearings or a plastic sliding block, depending on the load requirements and environment.

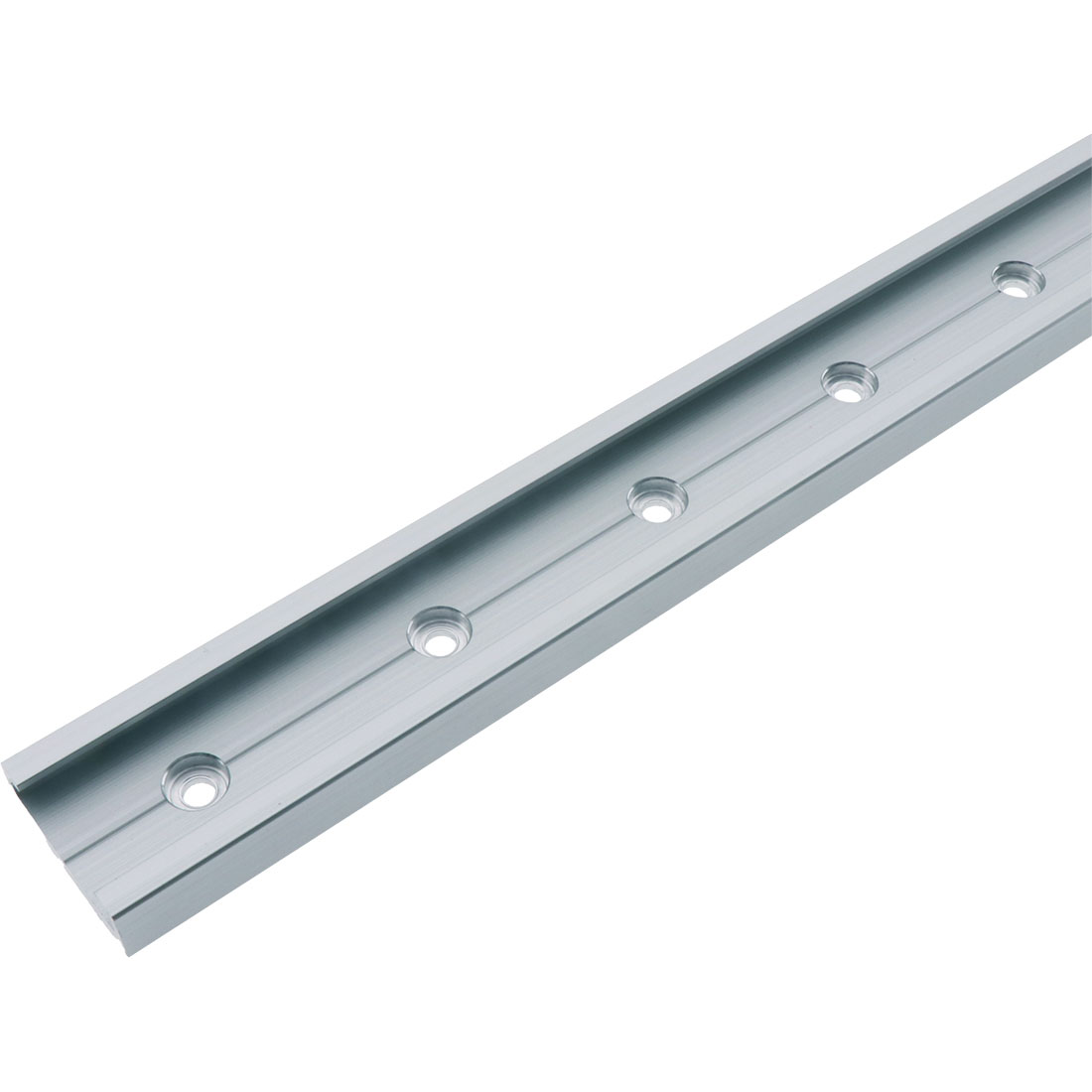

- Rail: Acts as the guide for straight-line motion.
- Carriage or Block: The part that moves along the rail.
- Motion Mechanism: Either ball bearings or a low-friction plastic block.
Types of Linear Slides
Different slide types are used depending on the level of precision, load, and operating conditions.

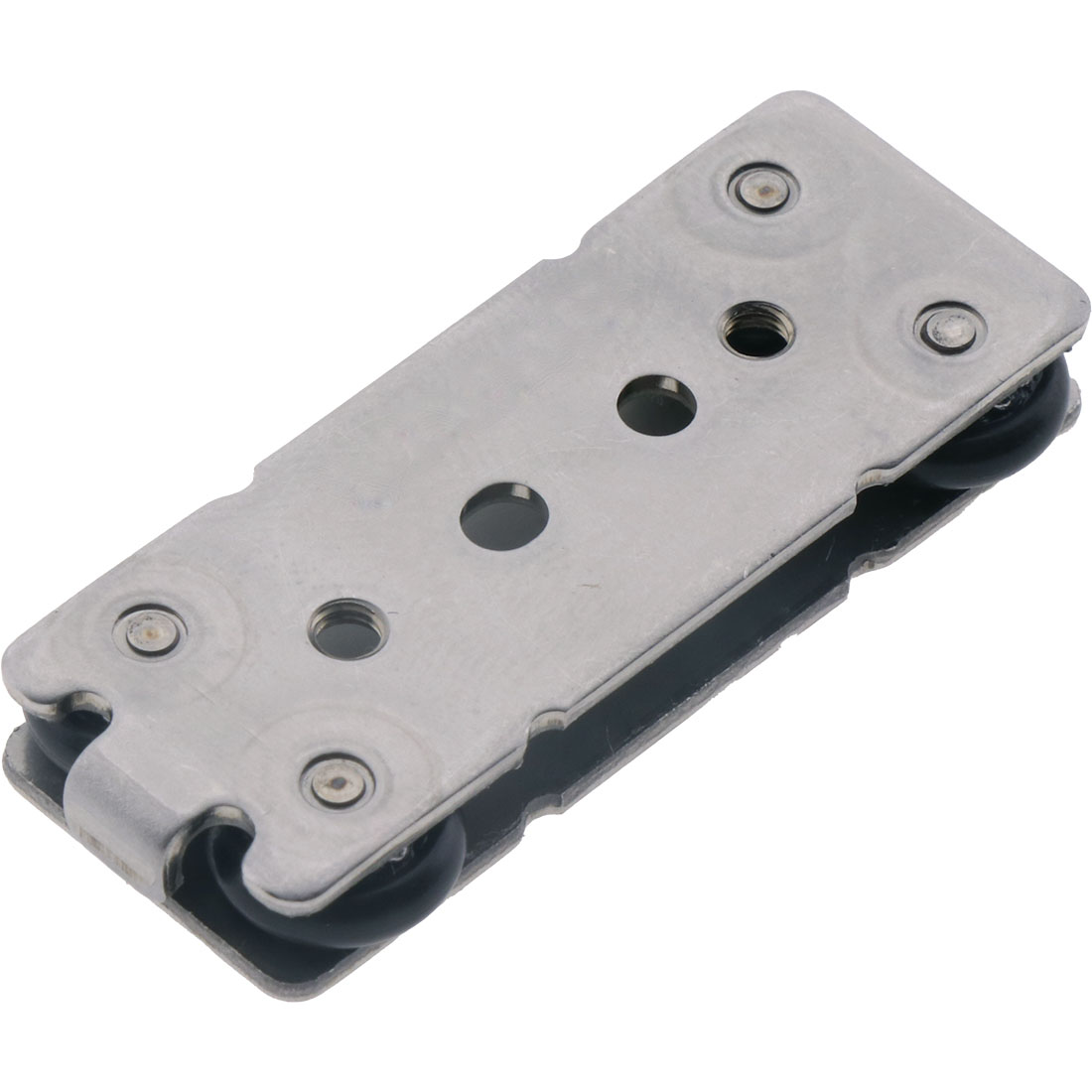

- Ball-Bearing Linear Slides:
- Provide very smooth and low-friction movement
- Suitable for high-precision tasks
- Ideal for light loads

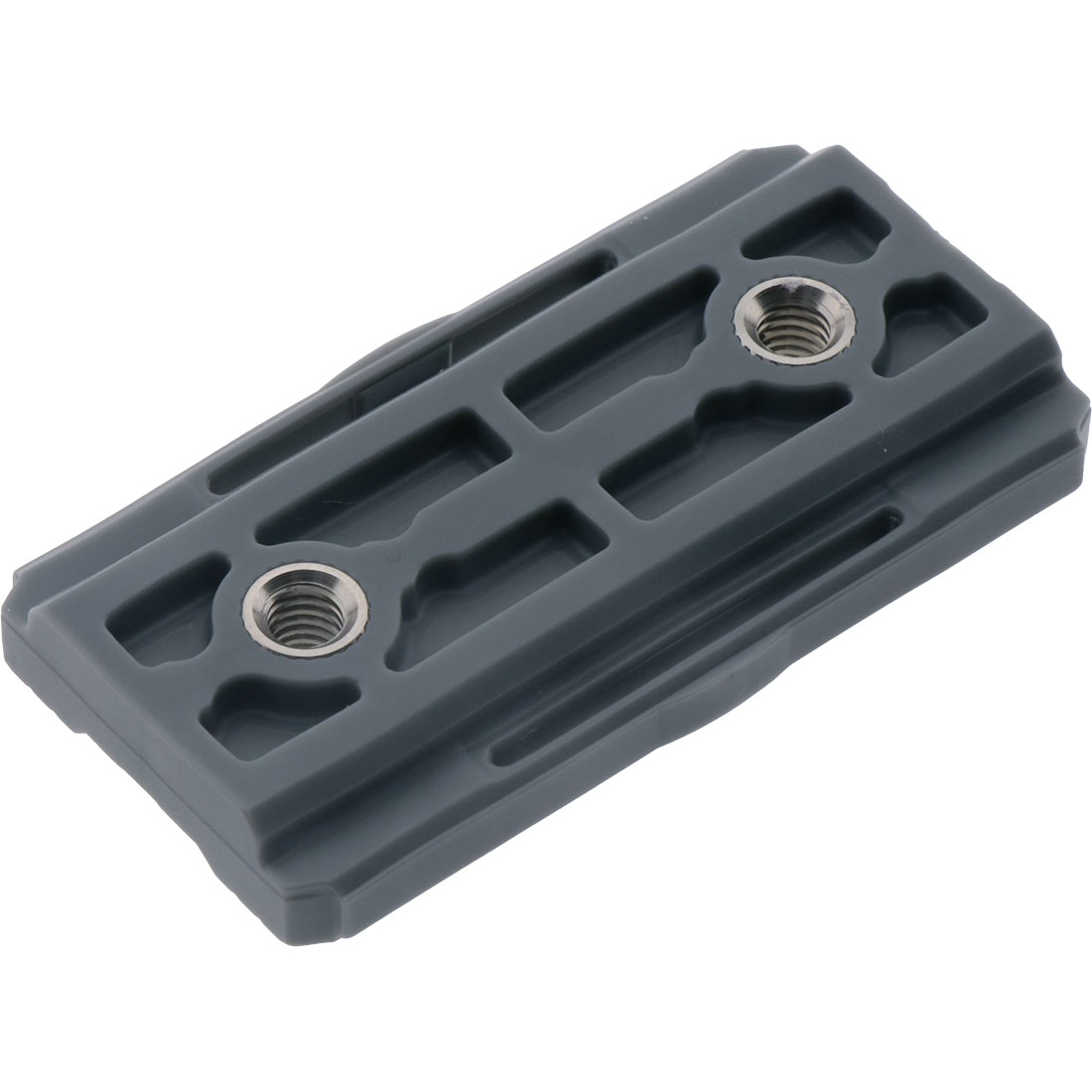

- Plastic Block Linear Slides:
- Use a hard-wearing plastic block instead of bearings
- Operate quietly with minimal maintenance
- Suitable for light to medium loads or harsh environments
- More resistant to dirt, dust, and vibration
What are Linear Slides Used For?
Linear slides are used in many industrial and mechanical setups where controlled motion is needed.
- Positioning tools, equipment, and sensors
- Guiding pull-out trays, drawers, and machine panels
- Supporting automated and semi-automated machinery
- Providing alignment and repeatable movement for engineering processes
What is the Benefit of a Linear Slide in Engineering Hardware?
Linear slides are valued in engineering hardware due to their durability, accuracy, and ability to support consistent straight-line travel.
- Stable and predictable movement
- Low friction and improved efficiency
- Suitable for manual and automated systems
- Reliable performance across light and heavy applications
