Understanding Different Shapes of Seals: A Comprehensive Guide
Seals are essential for preventing leaks and reducing vibrations and noise in various applications. With different materials and profiles, seals are designed for specific uses. In this blog, we’ll explore the shapes of seals, focusing on sponge rubber and rubber seals, such as D, O, U, rectangular, and flat profiles. We’ll also cover rubber and PVC seals like J and H shapes, and provide tips on how to check existing seals for wear.
What is Seal Shape?
The shape of a seal refers to its end profile. This is determined by cutting through the seal and examining its cross-section. The profile affects the seal's ability to perform and its suitability for different applications.
Common Seal Shapes
D-Shaped Seals
D-shaped seals are known for their excellent sealing capabilities and flexibility. The flat side provides a secure fit against surfaces, while the curved side compresses to form a tight barrier. These seals are ideal for doors, hatches, and enclosures, offering reliable protection against air, water, and dust. D profiles can be either solid or hollow.
O-Shaped Seals
O-shaped seals are round and available in both solid and hollow profiles. They create a tight seal and are versatile for a variety of applications, including preventing leaks in pipes and machinery.
U-Shaped Seals
U-shaped seals have a double lip design for enhanced sealing. They are commonly used for covering sharp edges to prevent cuts.
Rectangular or Flat Seals
Rectangular or flat seals are used for sealing flat surfaces. These are commonly found in automotive, machinery, and industrial equipment,where a gasket-like seal is required.
.jpg)

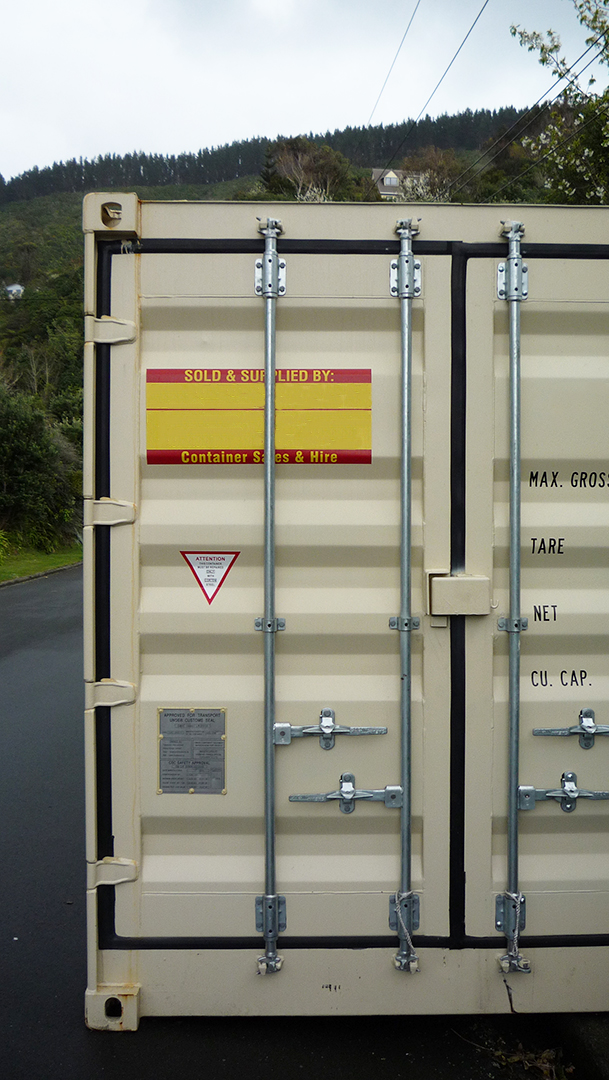

Truck and Container Door Seal Shapes
Rubber and PVC seals, such as J and H shapes, are commonly used to seal truck body and container doors.
J-Shaped Seals
J-shaped seals feature a hook-like profile, making installation easy while providing a reliable seal. PVC J seals have a hard angle to fit into and secure to the door, while rubber J seals are entirely made of rubber for added flexibility.
H-Shaped PVC Seals
H-shaped seals are made from hard PVC with a flexible seal. Their H-shaped cross-section ensures a snug fit, making them ideal for sealing truck and container doors.
How to Check Existing Seals
Regularly inspect your seals to ensure they are performing optimally. Here’s how:
- Inspect Condition: Look for cracks, splits, or deformation and replace any worn seals.
- Check Fit: Ensure the seal fits snugly. A loose or tight fit can compromise its performance.
- Test for Leaks: Apply pressure or use water to test the seal. Replace if it leaks.
- Compare with New Seals: Compare the old seal with a new one to detect degradation.
Choosing the right seal shape is crucial for maintaining effective sealing and preventing leaks. Whether you need a D, O, U, rectangular, J, or H-shaped seal, each has specific benefits. Regular inspection and maintenance of your seals will ensure long-lasting performance and reliability.
Need help identifying the right seal? Send a photo of the end profile to ask@comac.co.nz.
