Round Plug Ribbed Black 60.3mm

Used On:
• Table • Bench • Furniture • Safety Frame • Shelving • Display Unit • Tube and Pipe Products • Marine Applications

Also Called:
• Inserts • Round Plugs • Round Tube Inserts • Round Plugs

• For 16-18 gauge tube • Plastic • Standard packs: 50 plugs (available in singles also)

Be the first to review this product

NZ$2.15 + GST

SKU

230

Tech Info

Technical info for the current product is indicated by the blue marker. Related product(s) may be shown for your convenience.

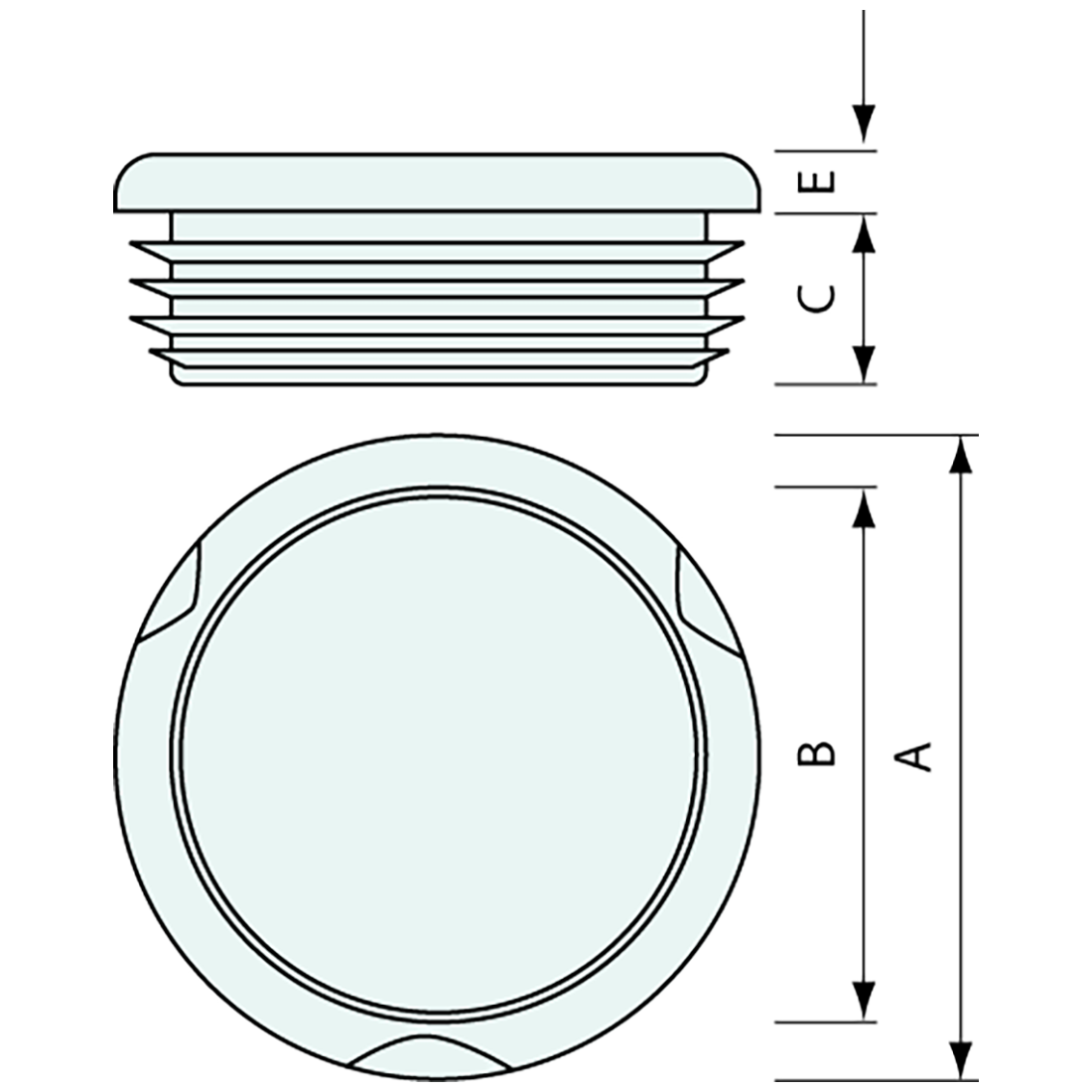

Code	Price ea. + GST	Material	Sides	A inch	A mm	B Min mm	B Max mm	C mm	E mm
230	2.15	Plastic	Ribbed	2.38	60.3	52	57.6	14.5	5
200	0.28	Plastic	Ribbed	0.63	16	10.5	14.4	12	4
201	0.28	Plastic	Ribbed	0.75	19.1	14	17.5	12	3
202	0.28	Plastic	Ribbed	0.88	22.4	16.4	20.4	12	3
203	0.28	Plastic	Ribbed	1	25.4	20.3	23.7	12.5	5
204	0.47	Plastic	Ribbed	1.13	28.7	23.3	26.5	15	4
205	0.57	Plastic	Ribbed	1.25	31.8	28	30	18.5	4
206	0.61	Plastic	Ribbed	1.5	38.1	32.5	36	19	4
207	0.84	Plastic	Ribbed	2	50.8	45.4	49	18.5	5
208	1.45	Plastic	Ribbed	3	76.2	71	73.5	19.5	5.5
209	0.28	Plastic	Smooth	0.5	12.7	10	10	9.5	2
210	0.77	Plastic	Ribbed		30	23	28	11.5	5
211	0.91	Plastic	Ribbed	1.38	35.1	30.8	32.6	17.5	4
213	0.91	Plastic	Ribbed		40	32	38	11.5	5
214	1.34	Plastic	Smooth Release		20.2	18	18.3	16	2.5
215	2.43	Plastic	Smooth	2.5	63.5	59.4	60.7	16	6
216	3.09	Plastic	Ribbed		75	64	72.3	20	7.5
217	1.37	Plastic	Ribbed	1.75	44.5	39	42	19	3.5
218	1.08	Plastic	Ribbed	1.34	34.8	28	32.5	11	5
219	1.13	Plastic	Ribbed		37	30	35	12	5
220	1.45	Plastic	Ribbed	1.88	47.7	42.5	45	18	4
221	1.91	Plastic	Ribbed	2.38	60.3	55	58	17	4
222	1.08	Plastic	Smooth		32	30	30.5	14.5	3
223	0.73	Plastic	Smooth		27.5	22.6	22.8	7	2
224	2.66	Plastic	Smooth		60.8	51	54.5	16.5	3.5
225	1.49	Plastic	Smooth		48.5	45	45.4	9	2.5
226	1.45	Plastic	Smooth		53.5	51.1	51.7	13	4.5
227	2.31	Plastic	Smooth		62	57	58	15	4.5
229	0.34	Plastic	Smooth	0.63	16	12	13.7	9.5	2.5
231	0.62	Plastic	Smooth		14.7	11.3	11.4	7	5
232	2.86	Plastic	Smooth		69	59	60	17	4.5
233	0.26	Plastic	Ribbed		10	5.5	8	6.5	1.5
234	0.27	Plastic	Ribbed		12	8.5	10.3	7	2
235	1.86	Plastic	Ribbed		55	49	52.5	11.5	5
236	2.54	Plastic	Ribbed		65	56	62	14	6
237	2.97	Plastic	Ribbed		70	59.5	66	20	5
238	3.09	Plastic	Ribbed		80	73	77	20.5	4
239	6.14	Plastic	Ribbed		85	74	82	21.5	6
240	7.36	Plastic	Ribbed		90	80	86	20	5
241	8.68	Plastic	Ribbed		95	85	92	21	8
242	10.64	Plastic	Ribbed		105	95	100	29	6
243	11.7	Plastic	Ribbed		110	99	106	28	6.5
244	13.8	Plastic	Ribbed		120	110	116	29	6
245	1.41	Plastic	Ribbed		42	37	40.5	11.5	5
258	3.1	Plastic	Smooth		75.8	68.5	70.7	20	5
259	2.03	Plastic	Ribbed	1.75	44.5	36.5	39.5	14	5
269	0.38	Plastic	Ribbed		13	7.9	12	11	4
273	1.24	Plastic	Ribbed	1.5	38.1	30	33	14	4
274	2.74	Plastic	Smooth	2.5	63.5	50	53.5	18	5
275	8.81	Plastic	Ribbed	4	100	91	96.5	28	7
246	1.45	Plastic	Ribbed		47.7	42	45.5	11	5
276	0.27	Plastic	Ribbed		12	9.5	10.3	10	3.5
267	1.88	Plastic			55	46.5	49	15.1	5
299	2.29	Plastic	Smooth		48.5	39	42.5	15.5	3.8
284	1.76	Plastic			50	37	44.5	32	7.7

Downloads

STEP file

Drawing sheet
