Mounting Plate Castor Swivel Urethane Wheel Zinc Plated 100mm

Name: Mounting Plate Castor Swivel Urethane Wheel Zinc Plated 100mm
Brand: Co-Mac
SKU: 5955
Price: 66.34 NZD
Availability: InStock

$66.34

Sale Sold out

+ GST

Code: 5955

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Movable tables and chairs
Used On
Material Handling, Trolleys, Cabinets, Catering, Kitchens, Tables, Workbench
Also Called
Flange Mount, Castor Wheel, Castors, Trolley Wheel, Castors

Plate Castors Zinc Plated Nylon Urethane Wheels Variations

View product

Code: 5955

Mounting Plate Castor Swivel Urethane Wheel Zinc Plated 100mm

$66.34

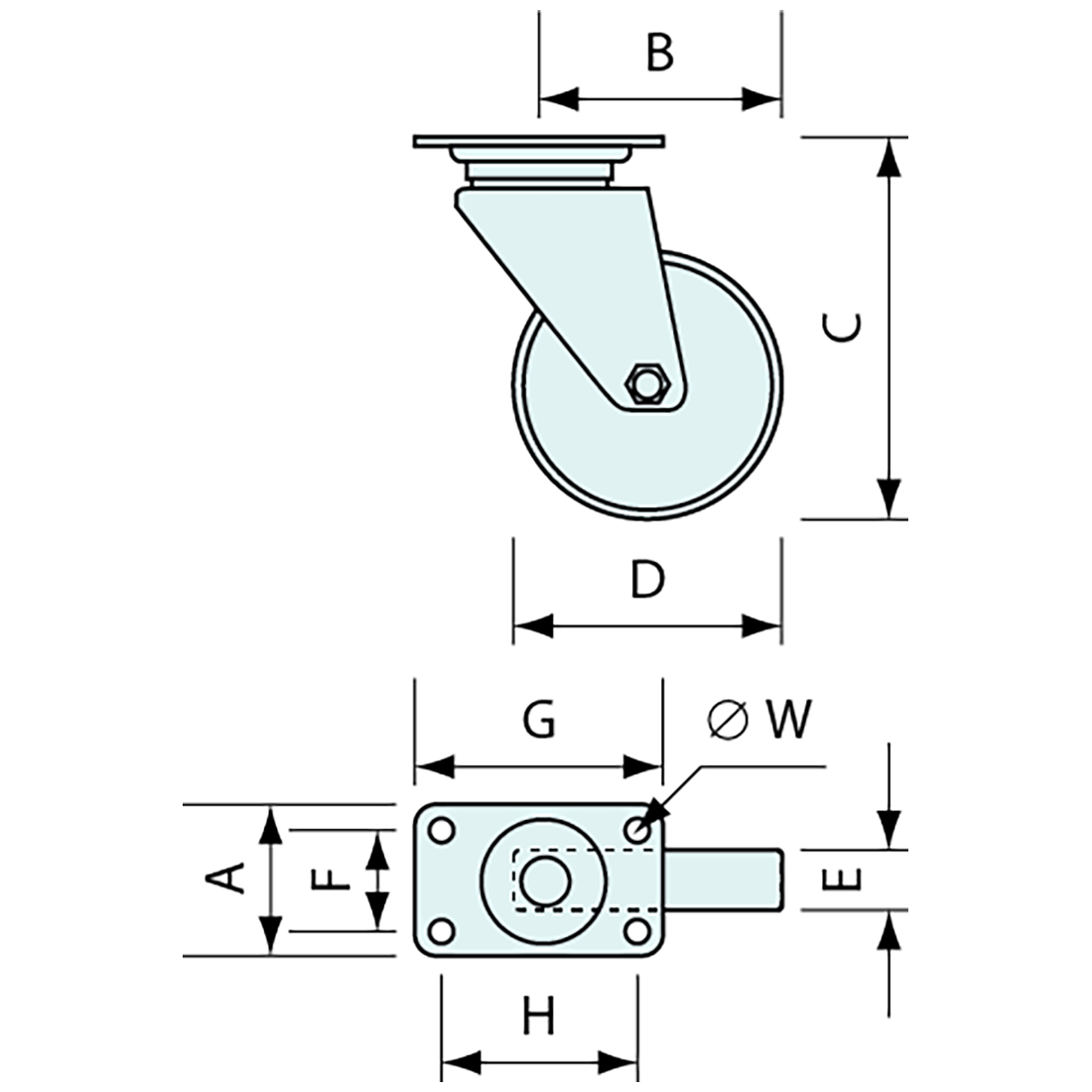

	SKU Products	Action	A mm	B mm	Colour	C mm	D mm	E mm	F mm	G mm	H mm	Load rating kg	Material	Wheel type	W mm	Price + GST
		Swipe for more measurements
5955	5955	Swivel	85.0	97.0	Zinc Plated	130.0	100.0	35.0	60.0	100.0	80.0	300.0	Steel Zinc Plated, Urethane	Urethane	8.0	$66.34
5954	5954	Fixed	85.0		Zinc Plated	130.0	100.0	35.0	60.0	100.0	80.0	300.0	Steel Zinc Plated, Urethane	Urethane	8.0	$48.95
4742	4742	Fixed	20.0		Zinc Plated	35.0	25.0	13.0	0.0	36.0	29.0	10.0	Steel Zinc Plated	Urethane	4.0	$5.88
1536	1536	Swivel	90.0	60.0	Zinc Plated	118.0	75.0	32.0	65.0	90.0	65.0	40.0	Steel Zinc Plated	Nylon	8.0	$29.39
4762	4762	Brake & Swivel	70.0	105.0	Zinc Plated	135.0	100.0	36.0	47.0	95.0	75.0	100.0	Steel Zinc Plated	Nylon	8.0	$59.04
4827	4827	Brake & Swivel	55.0	82.0	Zinc Plated	76.0	50.0	38.0	36.0	70.0	52.0	70.0	Steel Zinc Plated, Nylon	Urethane	6.0	$22.74
5958	5958	Swivel	85.0	110.0	Zinc Plated	155.0	125.0	40.0	60.0	100.0	80.0	350.0	Steel Zinc Plated, Urethane	Urethane	8.0	$75.08
4743	4743	Swivel	33.0	25.0	Zinc Plated	35.0	25.0	13.0	24.0	38.0	30.0	10.0	Steel Zinc Plated	Urethane	4.0	$8.81
4754	4754	Fixed	70.0		Zinc Plated	107.0	75.0	35.0	47.0	95.0	75.0	80.0	Steel Zinc Plated	Nylon	8.0	$19.76
4761	4761	Swivel	70.0	90.0	Zinc Plated	135.0	100.0	35.0	47.0	95.0	75.0	100.0	Steel Zinc Plated	Nylon	8.0	$38.85
4825	4825	Fixed	55.0		Zinc Plated	76.0	50.0	29.0	36.0	70.0	52.0	70.0	Steel Zinc Plated, Nylon	Urethane	6.0	$16.12
1537	1537	Brake & Swivel	90.0	105.0	Zinc Plated	118.0	75.0	40.0	65.0	90.0	65.0	40.0	Steel Zinc Plated	Nylon	8.0	$38.13
4750	4750	Swivel	70.0	70.0	Zinc Plated	107.0	75.0	35.0	47.0	95.0	75.0	80.0	Steel Zinc Plated	Nylon	8.0	$33.80
4763	4763	Fixed	70.0		Zinc Plated	135.0	100.0	35.0	47.0	95.0	75.0	100.0	Steel Zinc Plated	Nylon	8.0	$24.59
5957	5957	Fixed	85.0		Zinc Plated	155.0	125.0	40.0	60.0	100.0	0.0	350.0	Steel Zinc Plated, Urethane	Urethane	8.0	$60.71
5959	5959	Brake & Swivel	85.0	138.0	Zinc Plated	155.0	125.0	52.0	60.0	100.0	80.0	350.0	Steel Zinc Plated, Urethane	Urethane	8.0	$86.07
4826	4826	Swivel	55.0	52.0	Zinc Plated	76.0	50.0	28.0	36.0	70.0	52.0	70.0	Steel Zinc Plated, Nylon	Urethane	6.0	$17.50
5956	5956	Brake & Swivel	85.0	135.0	Zinc Plated	130.0	100.0	35.0	60.0	100.0	8.0	300.0	Steel Zinc Plated, Urethane	Urethane	8.0	$80.09
4752	4752	Brake & Swivel	70.0	105.0	Zinc Plated	107.0	75.0	35.0	47.0	95.0	75.0	80.0	Steel Zinc Plated	Nylon	8.0	$53.97
