Support Wheels 60mm 400kg Load

Name: Support Wheels 60mm 400kg Load
Brand: Co-Mac
SKU: 5448
Price: 226.08 NZD
Availability: InStock

$226.08

Sale Sold out

+ GST

Code: 5448

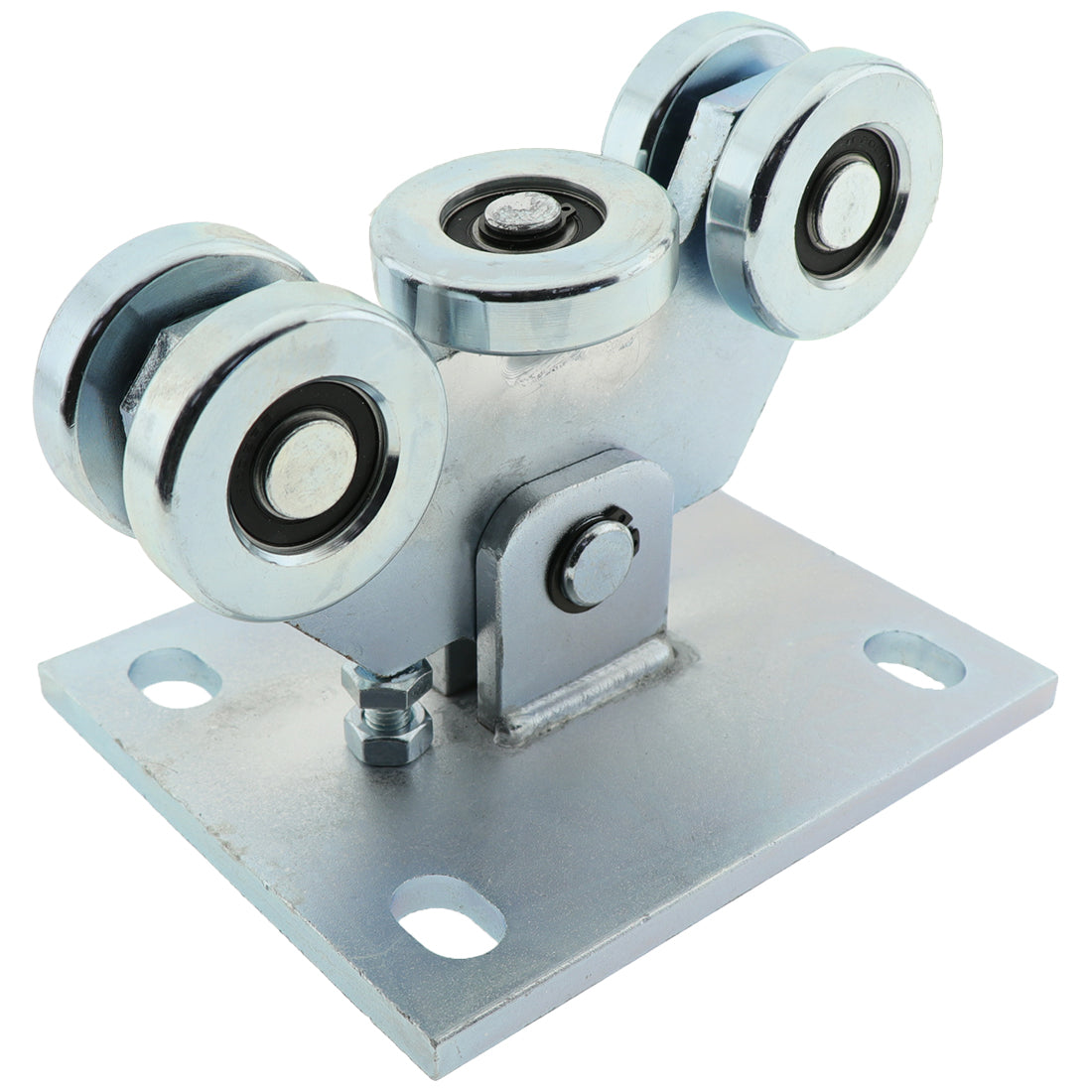

The 5448 Cantilever Gate Wheel is designed to suit Cantilever Channels 5433 and 5437, providing smooth and stable operation with its zinc-plated finish for enhanced durability. With a load rating of 400kg, it ensures reliable performance for gates with evenly distributed weight.

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Gates or a Guide Wheel
Used On
Gates, Tennis Court Gates, Swimming Pool Gates, Farm Gates, Household Gate, Section Gate, Yard Gate, Pedestrian Gate, Sliding Gates, Iron Gates
Also Called
Cantilever Support Wheels, Heavy Duty Trolleys, Heavy Duty Gate Wheels, Heavy Duty Roller Wheels, Sliding Gate Wheels

Support Wheels Variations

View product

Code: 5448

Support Wheels 60mm 400kg Load

$226.08

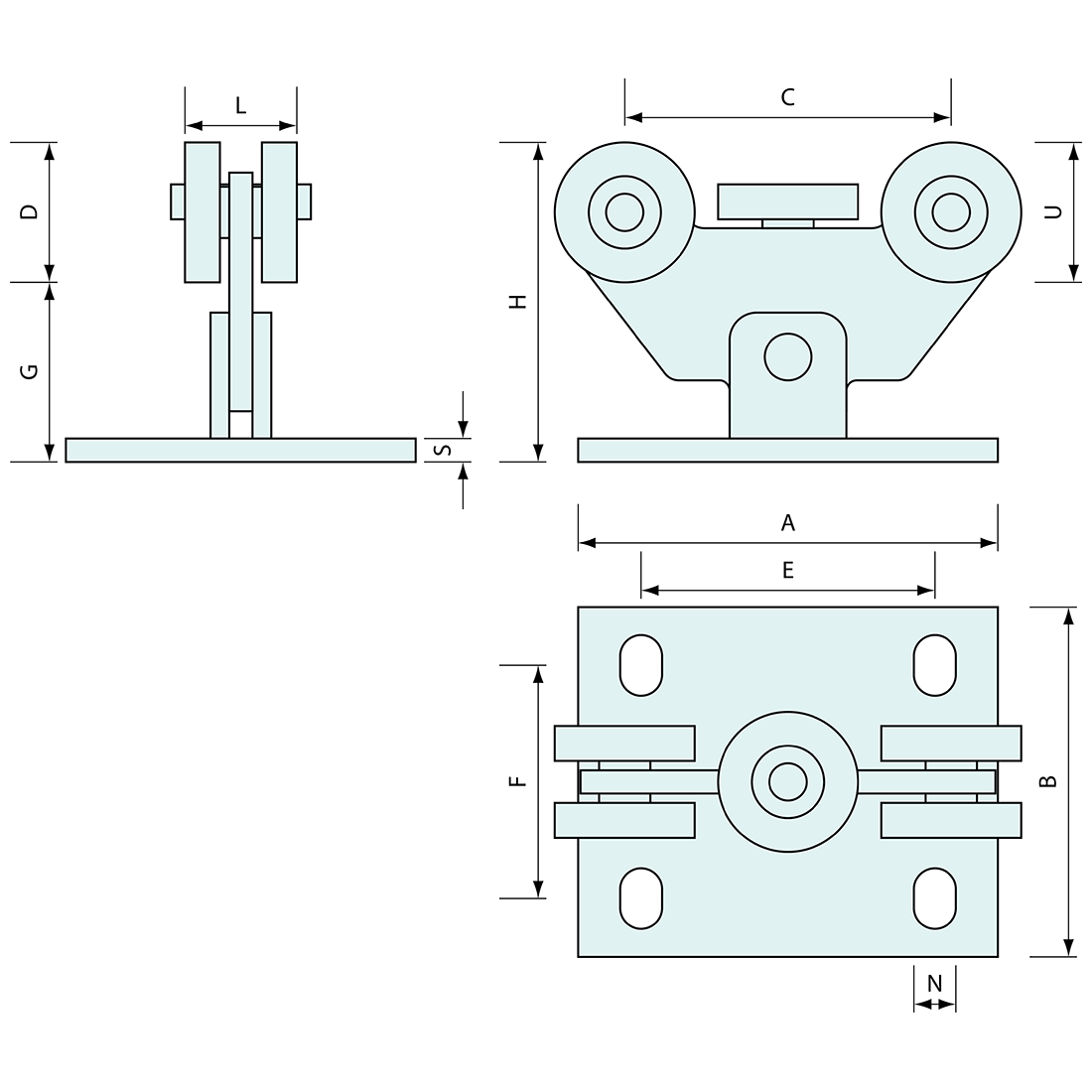

	SKU Products	A mm	B mm	Colour	C mm	D mm	E mm	F mm	G mm	H mm	Load rating kg	L mm	Material	N mm	S mm	U mm	Price + GST
		Swipe for more measurements
5451	5451	300.0	150.0	Zinc Plated	222.0	78.0	261.0	100.0	95.0	173.0	600.0	66.0	Steel Zinc Plated	18.0	10.0	78.0	$433.93
5448	5448	180.0	150.0	Zinc Plated	135.0	60.0	126.0	100.0	67.0	135.0	400.0	47.0	Steel Zinc Plated	17.0	10.0	60.0	$226.08
