Spring Bolt Stainless Steel 316 166mm 12mm Pin

Name: Spring Bolt Stainless Steel 316 166mm 12mm Pin
Brand: Co-Mac
SKU: 4908
Price: 44.95 NZD
Availability: InStock

$44.95

Sale Sold out

+ GST

Code: 4908

-

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Latching and Unlatching
Used On
Agricultural Machinery, Trailers, Trucks, Sprayers,Telescopic Arms, Gym Equipment, Toolboxes, Boat
Also Called
Spring Bolt, Stainless Steel., Bolt Latch, Long Throw Pin Bolt

View product

Code: 4908

$44.95

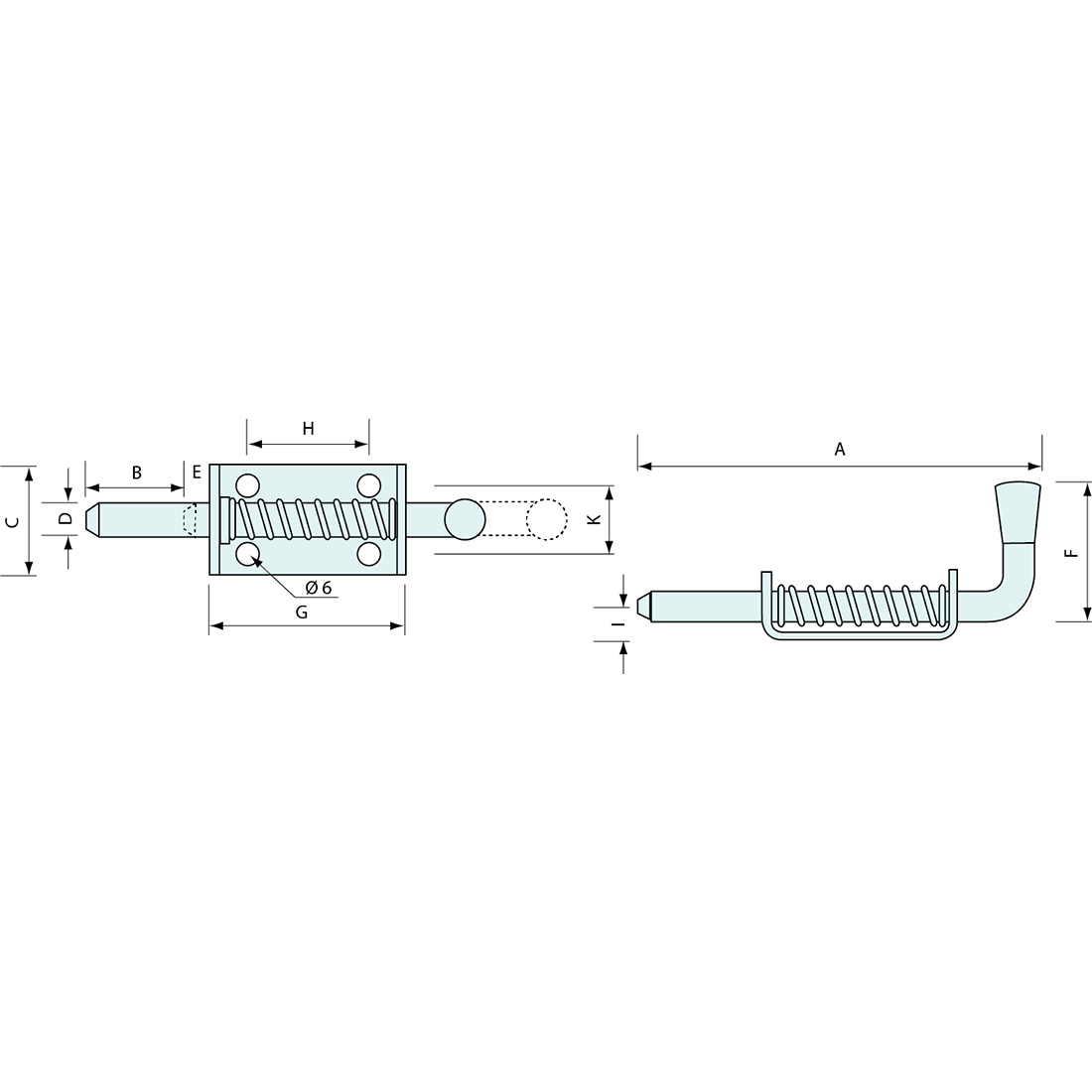

	SKU Products	A mm	B mm	Colour	C mm	D mm	E mm	F mm	G mm	H mm	I mm	K mm	Material	Price + GST
		Swipe for more measurements
4518	4518	166.0	28.0	Zinc Plated	40.0	12.0	4.0	60.0	73.0	40.0	17.5	28.0	Steel Zinc Plated	$19.11
4612	4612	225.0	50.0	Stainless Steel	40.0	12.0	28.0	120.0	117.5	84.5	20.0	21.0	Stainless Steel	$37.30
4514	4514	225.0	50.0	Zinc Plated	40.0	12.0	28.0	120.0	117.5	84.5	20.0	21.0	Steel Zinc Plated	$25.15
4908	4908	166.0	28.0	Stainless Steel	40.0	12.0	4.0	60.0	73.0	40.0	17.4	28.0	Stainless Steel 316	$44.95
4517	4517	166.0	28.0	Stainless Steel	40.0	12.0	4.0	60.0	73.0	40.0	17.5	28.0	Stainless Steel	$33.70
