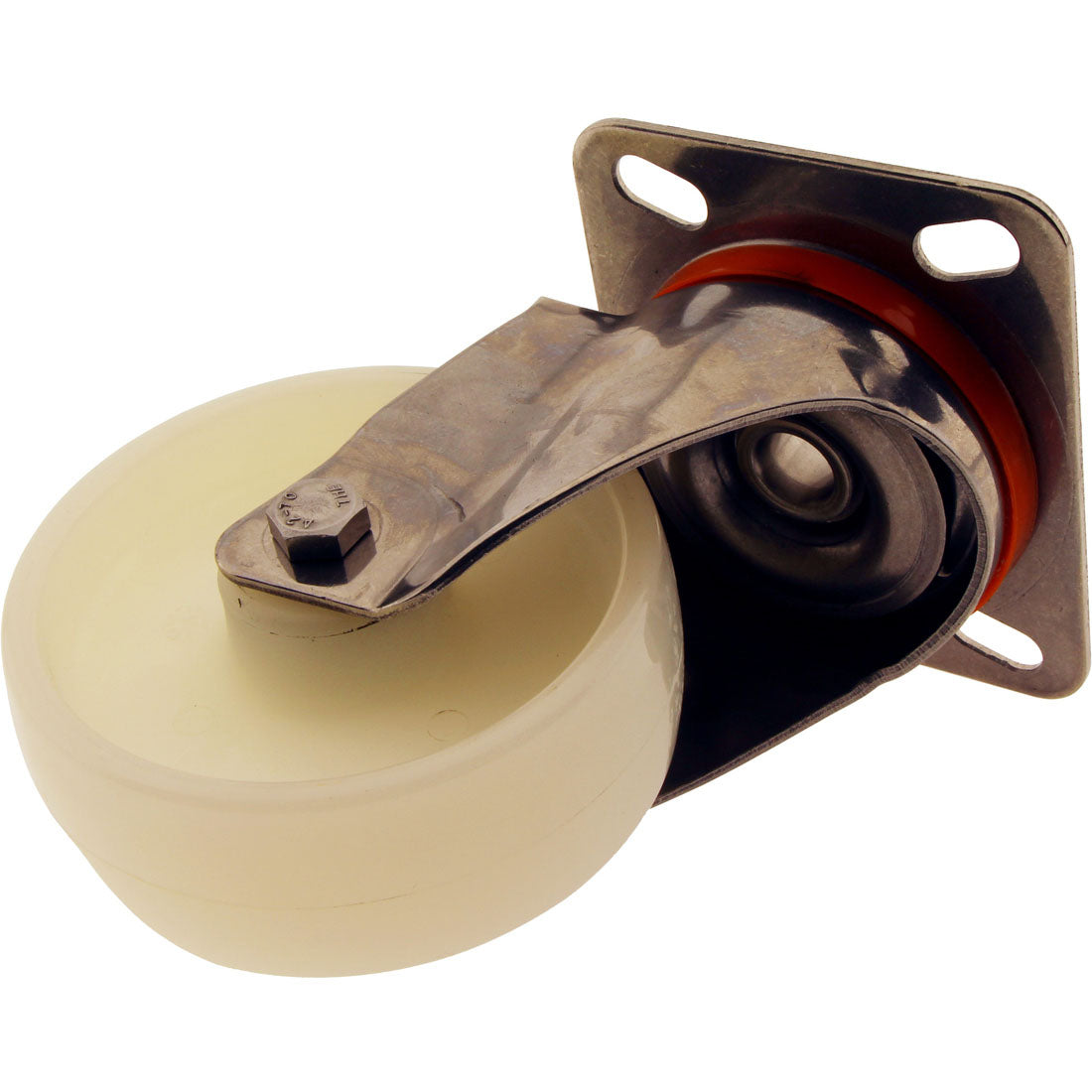

Mounting Plate Castor Swivel Nylon Wheel Stainless Steel 100mm

Name: Mounting Plate Castor Swivel Nylon Wheel Stainless Steel 100mm
Brand: Co-Mac
SKU: 4745
Price: 99.89 NZD
Availability: InStock

$99.89

Sale Sold out

+ GST

Code: 4745

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Movable tables and chairs
Used On
Material Handling, Trolleys, Cabinets, Catering, Kitchens, Tables, Workbench
Also Called
Flange Mount, Castor Wheel, Castors, Trolley Wheel, Castors

Plate Castors Stainless Steel Nylon Wheels Variations

View product

Code: 4745

Mounting Plate Castor Swivel Nylon Wheel Stainless Steel 100mm

$99.89

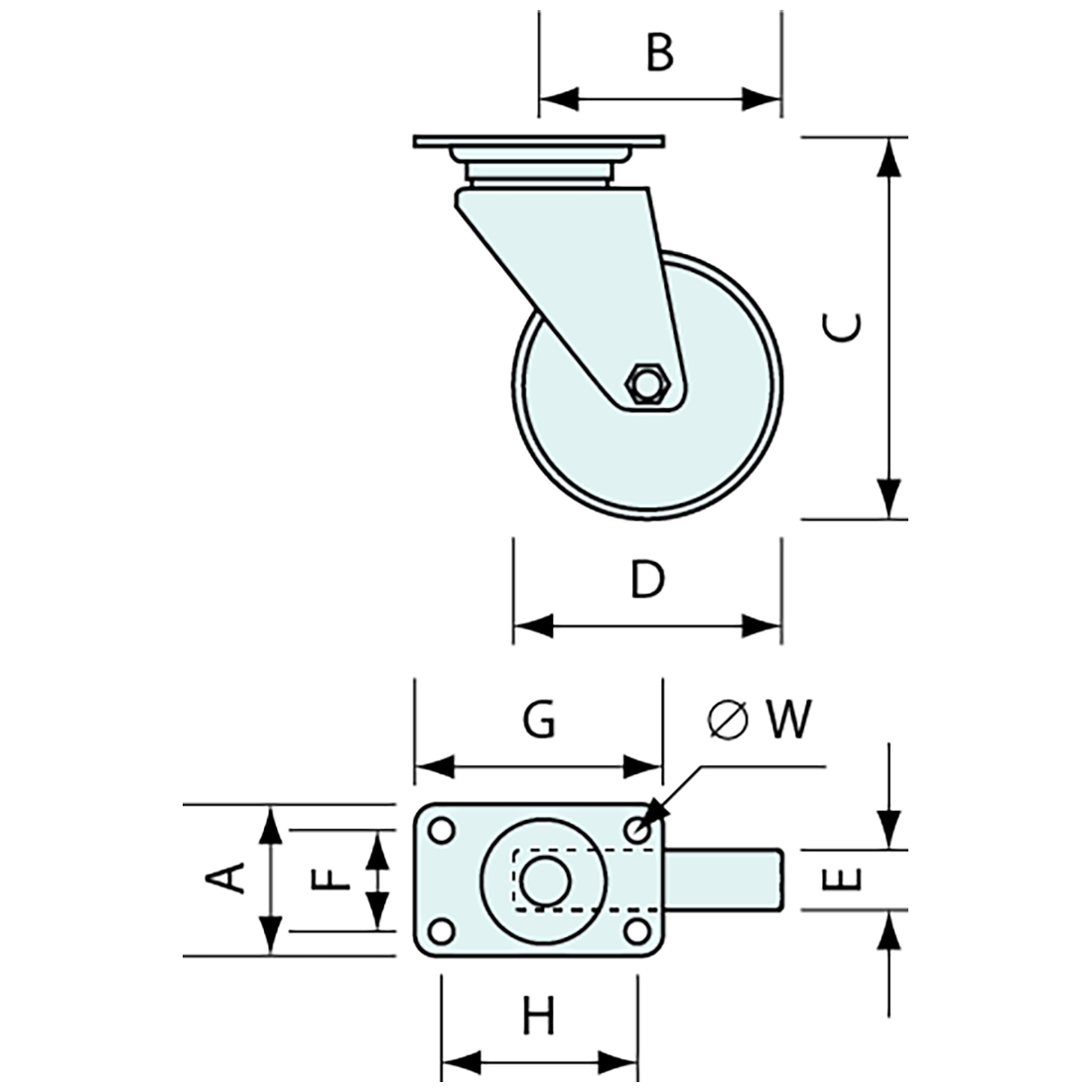

	SKU Products	Action	A mm	B mm	Colour	C mm	D mm	E mm	F mm	G mm	H mm	Load rating kg	Material	Wheel type	W mm	Price + GST
		Swipe for more measurements
4744	4744	Fixed	80.0		Stainless Steel	110.0	80.0	34.0	52.0	95.0	75.0	80.0	Stainless Steel	Nylon	8.0	$56.97
4751	4751	Swivel	85.0	75.0	Stainless Steel	110.0	80.0	34.0	52.0	100.0	75.0	80.0	Stainless Steel	Nylon	8.0	$96.08
4747	4747	Fixed	80.0		Stainless Steel	130.0	100.0	35.0	60.0	100.0	80.0	100.0	Stainless Steel	Nylon	8.0	$60.04
4746	4746	Brake & Swivel	85.0	120.0	Stainless Steel	130.0	100.0	50.0	60.0	100.0	80.0	100.0	Stainless Steel	Nylon	8.0	$129.05
4753	4753	Brake & Swivel	85.0	120.0	Stainless Steel	110.0	80.0	34.0	47.0	100.0	75.0	80.0	Stainless Steel	Nylon	8.0	$119.04
4745	4745	Swivel	85.0	90.0	Stainless Steel	130.0	100.0	35.0	60.0	100.0	80.0	100.0	Stainless Steel	Nylon	8.0	$99.89
