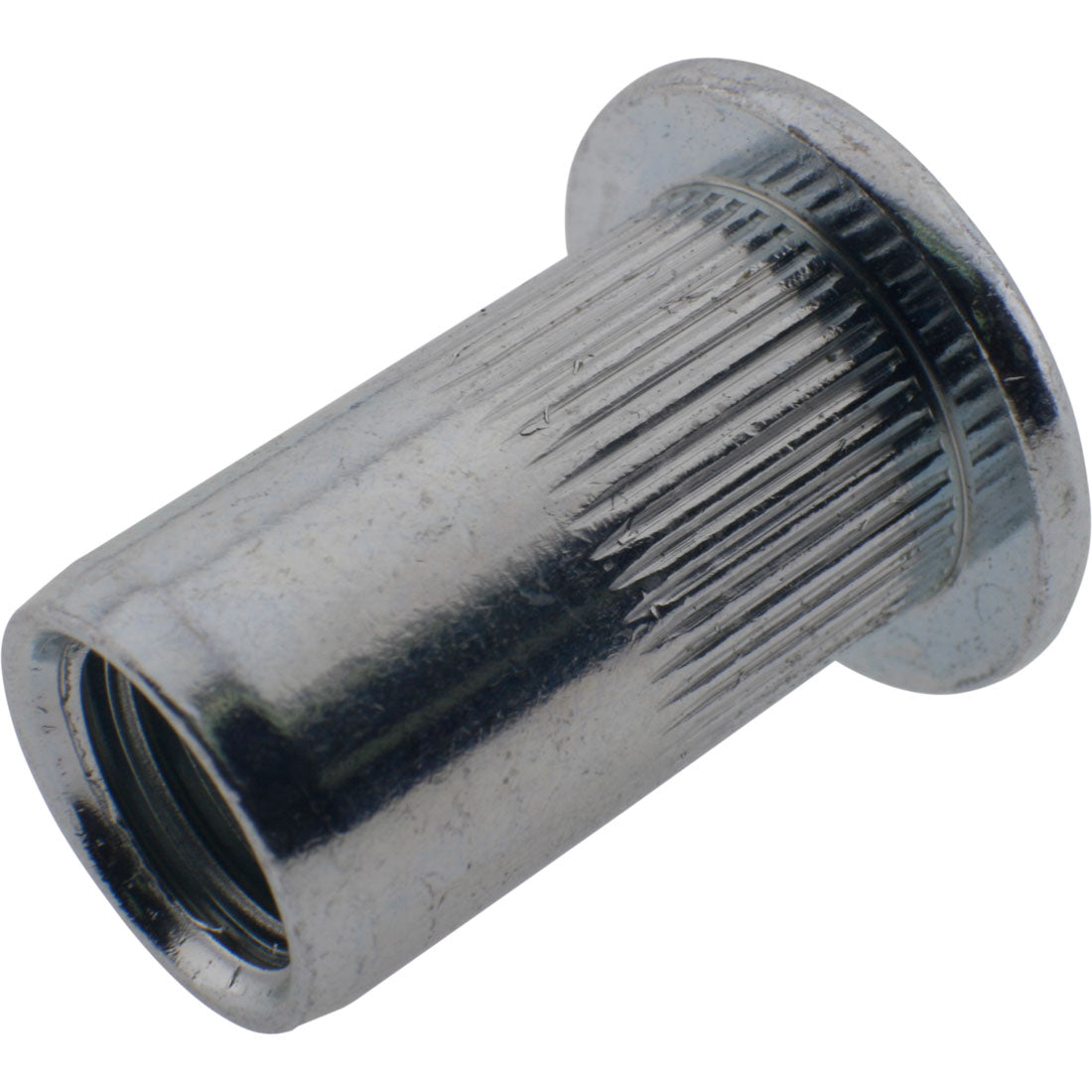

Riv Nut Zinc Plated M10

Name: Riv Nut Zinc Plated M10
Brand: Co-Mac
SKU: 4405
Price: 1.9 NZD
Availability: InStock

$1.90

Sale Sold out

+ GST

Code: 4405

• Zinc Plated • Used for putting a thread in thin material

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Attaching and Securing
Used On
Electronic Equipment, Electrical Cabinets, Sheetmetal
Also Called
Zinc Plated Rivnut, Zinc Plated Sheet Nut, Tube Nut, Rivnut, Rivet Nut, Steel Rivnut, Steel Sheet Nut

View product

Code: 4405

$1.90

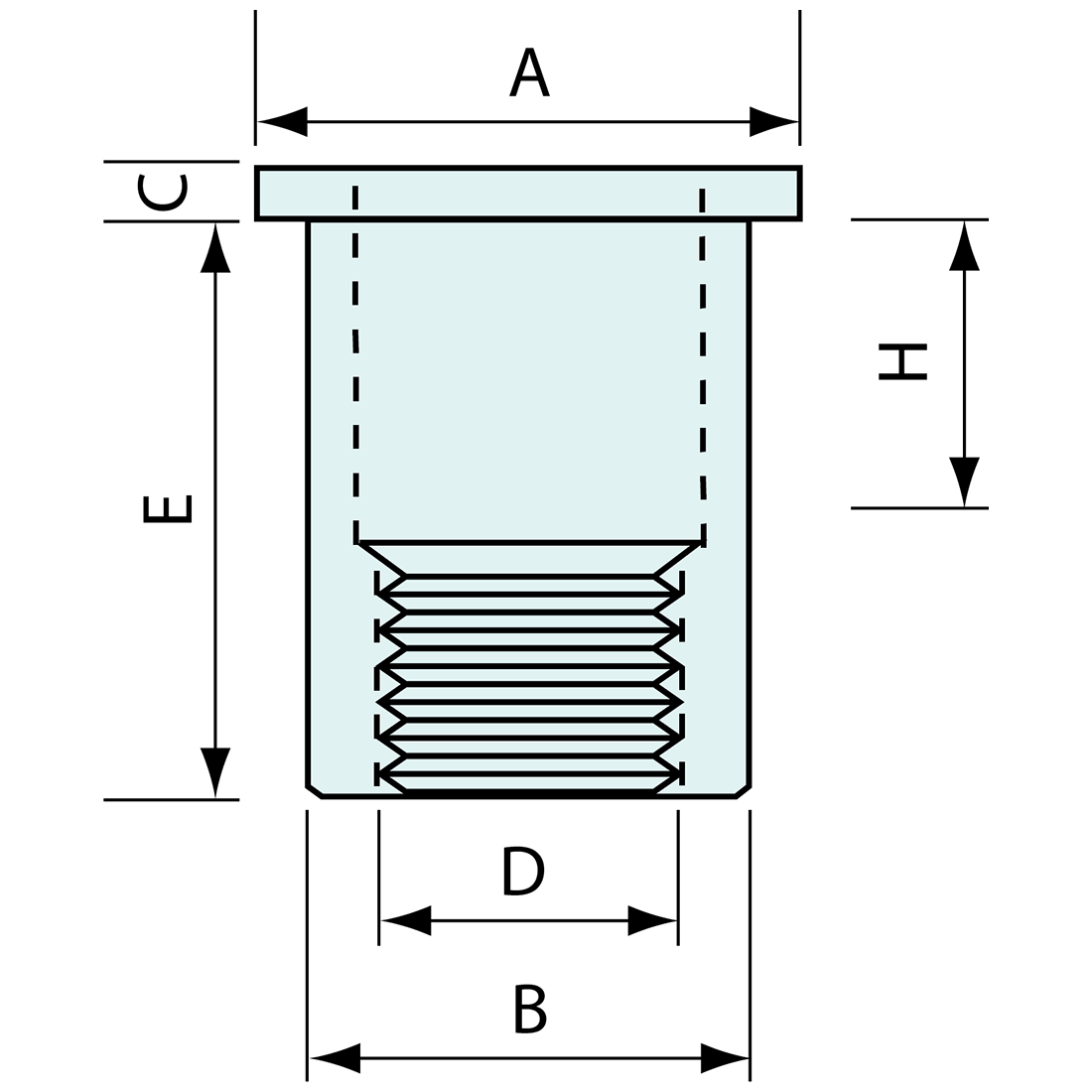

	SKU Products	A mm	B mm	Colour	C mm	E mm	H min mm	H max mm	Material	Thread d	Price + GST
		Swipe for more measurements
4403	4403	13.0	8.9	Steel	1.5	15.0	0.5	3.0	Steel	M6	$0.76
4443	4443	12.0	8.9	Stainless Steel	1.5	13.5	0.5	3.0	Stainless Steel	M6	$2.26
4442	4442	10.0	6.9	Stainless Steel	1.0	11.5	0.3	3.0	Stainless Steel	M5	$1.75
4444	4444	15.0	10.9	Stainless Steel	1.5	15.3	0.5	3.0	Stainless Steel	M8	$3.65
4402	4402	10.0	6.9	Steel	1.0	12.0	0.7	3.0	Steel	M5	$0.57
4401	4401	9.0	5.9	Steel	0.8	10.2	0.5	2.5	Steel	M4	$0.53
4400	4400	8.0	4.9	Steel	0.7	9.8	0.2	2.0	Steel	M3	$0.53
4446	4446	22.0	15.8	Stainless Steel	2.0	23.5	1.0	4.0	Stainless Steel	M12	$7.13
4948	4948	14.6	11.2	Aluminium	1.5	15.3	0.5	2.5	Aluminium	M8	$0.68
4445	4445	17.0	12.9	Stainless Steel	2.0	17.3	1.0	3.5	Stainless Steel	M10	$5.55
4406	4406	22.0	15.8	Steel	2.0	23.5	1.0	4.0	Steel	M12	$2.11
4949	4949	16.2	12.9	Aluminium	1.5	17.3	1.0	2.5	Aluminium	M10	$1.03
4945	4945	8.9	5.9	Aluminium	0.9	10.6	0.2	2.5	Aluminium	M4	$0.43
4441	4441	9.0	5.9	Stainless Steel	1.0	10.6	0.3	2.5	Stainless Steel	M4	$1.62
4405	4405	19.0	12.9	Steel	2.0	22.0	1.0	4.0	Steel	M10	$1.90
4404	4404	16.0	10.9	Steel	1.5	16.0	1.0	3.0	Steel	M8	$1.05
4947	4947	12.5	8.9	Aluminium	1.5	13.5	0.5	2.5	Aluminium	M6	$0.64
4440	4440	8.0	4.9	Stainless Steel	0.8	8.4	0.3	2.0	Stainless Steel	M3	$1.56
4964	4964	6.9	4.8	Aluminium	0.9	8.4	0.2	1.8	Aluminium	M3	$0.39
4946	4946	10.0	6.9	Aluminium	1.0	11.5	0.2	2.5	Aluminium	M5	$0.52
