Weld On Hinge Aluminium 60mm

Name: Weld On Hinge Aluminium 60mm
Brand: Co-Mac
SKU: 4120
Price: 12.1 NZD
Availability: InStock

$12.10

Sale Sold out

+ GST

Code: 4120

• Load ratings are based on a 450mm wide door, and per hinge

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Pivoting a Door, Hanging a Door or Lid, Swinging Doors, Tailgate Hinge
Used On
Horse Floats, Trucks, Trailer, Tailgate, Steel Door, Heavy Door, Security Door, Heavy Machinery, Agricultural Machinery, Crane, Excavators, RV Vehicle, Rubbish Truck, Utes, Heavy Road Transport
Also Called
Pin and Gudgeon Hinge, Pin Hinge, Weld On Hinge, Aluminium Bullet Hinge

View product

Code: 4120

$12.10

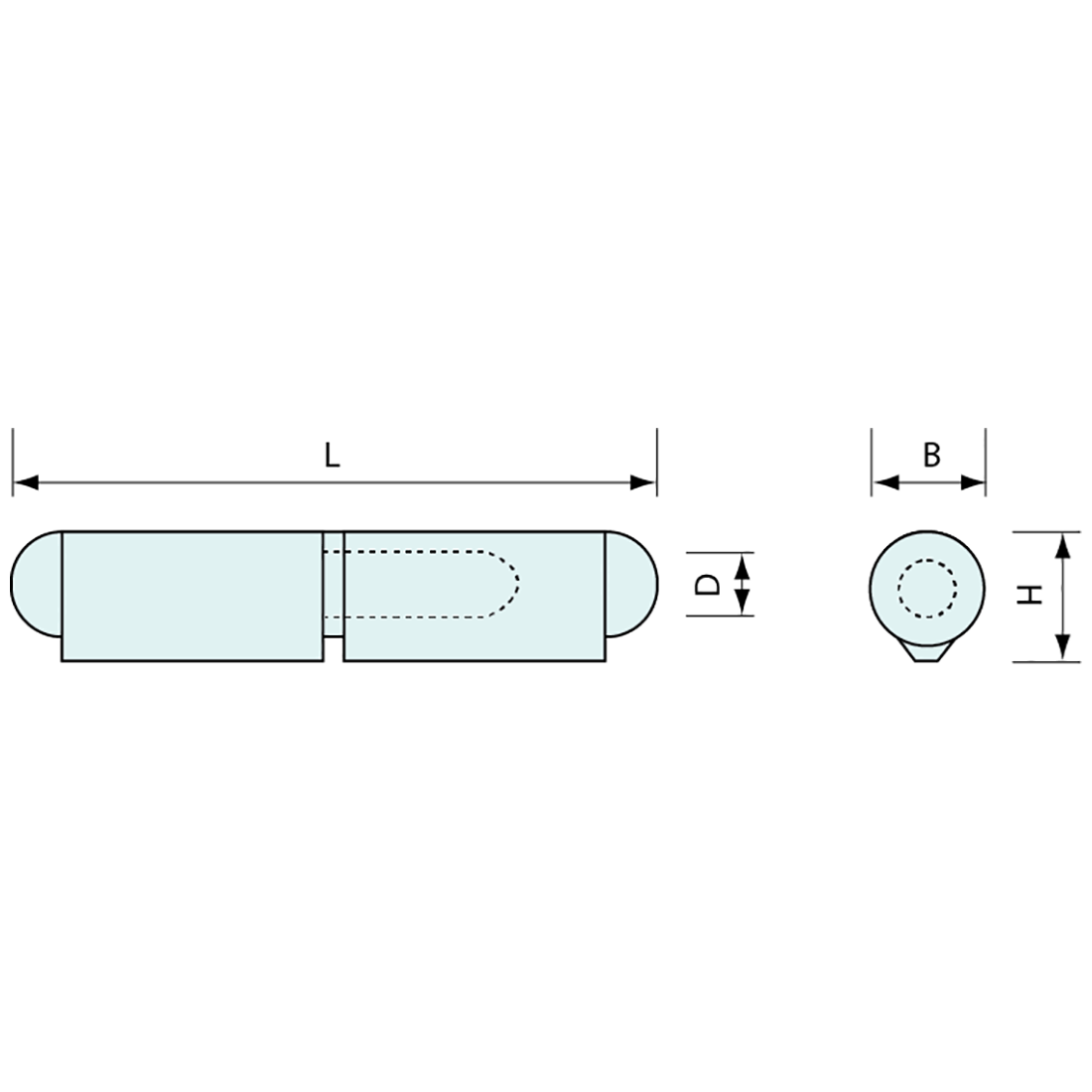

	SKU Products	B mm	Colour	D mm	H mm	Load rating kg	L mm	Material	Price + GST
		Swipe for more measurements
4121	4121	13.0	Aluminium	8.0	15.5	20.0	80.0	Aluminium with Stainless Steel Pin	$13.31
4122	4122	16.0	Aluminium	10.0	20.0	40.0	100.0	Aluminium with Stainless Steel Pin	$20.84
74121	74121	13.0	Aluminium	8.0	15.5	20.0	80.0	Aluminium with Stainless Steel Pin	$18.69
74122	74122	16.0	Aluminium	10.0	20.0	40.0	100.0	Aluminium with Stainless Steel Pin	$26.22
74123	74123	20.0	Aluminium	13.0	25.0	60.0	150.0	Aluminium with Stainless Steel Pin	$49.07
4120	4120	10.0	Aluminium	6.0	10.0	15.0	60.0	Aluminium with Stainless Steel Pin	$12.10
4123	4123	20.0	Aluminium	13.0	25.0	60.0	150.0	Aluminium with Stainless Steel Pin	$43.70
