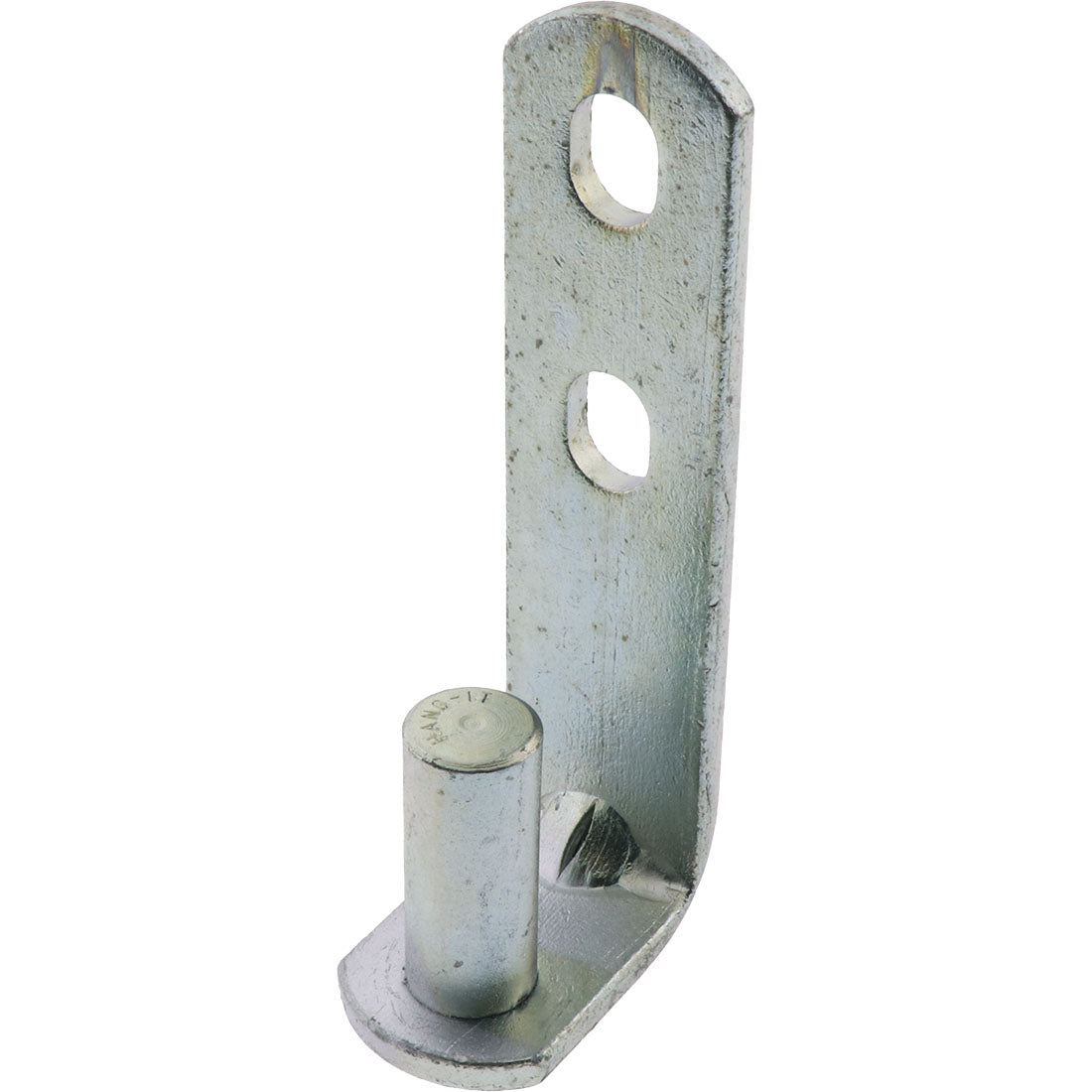

Plate Gudgeon Zinc Plated 16mm

Name: Plate Gudgeon Zinc Plated 16mm
Brand: Co-Mac
SKU: 4112
Price: 16.01 NZD
Availability: InStock

$16.01

Sale Sold out

+ GST

Code: 4112

Zinc Plated
Load ratings are based on a 450mm wide door, and per hinge

Plate gudgeons provide pivoting and hanging support for gates. Commonly used on barn doors, sheds, farm gates and security gates — also known as bolt on gudgeon pins and bolt on plate gudgeon pins.

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Pivoting a Gate, Hanging a Gate, Swinging Gate, Pipe Gate
Used On
Barn Door, Sheds, Gates, Farm Hinge, Dog Run, Pet Hutch, Pipe Gate, Farm Gate, Mesh Gate, Security Gate
Also Called
Bolt On Gudgeon Pin, Bolt On Plate Gudgeon Pin

Plate Gate Hinges Variations

View product

Code: 4112

Plate Gudgeon Zinc Plated 16mm

$16.01

	SKU Products	Colour	D mm	Load rating kg	Material	Price + GST
		Swipe for more measurements
4112	4112	Zinc Plated	16.0	80.0	Steel Zinc Plated	$16.01
4168	4168	Zinc Plated		200.0	Steel Zinc Plated	$62.96
4113	4113	Zinc Plated	20.0	100.0	Steel Zinc Plated	$27.18
4145	4145	Zinc Plated		100.0	Steel Zinc Plated	$43.59
