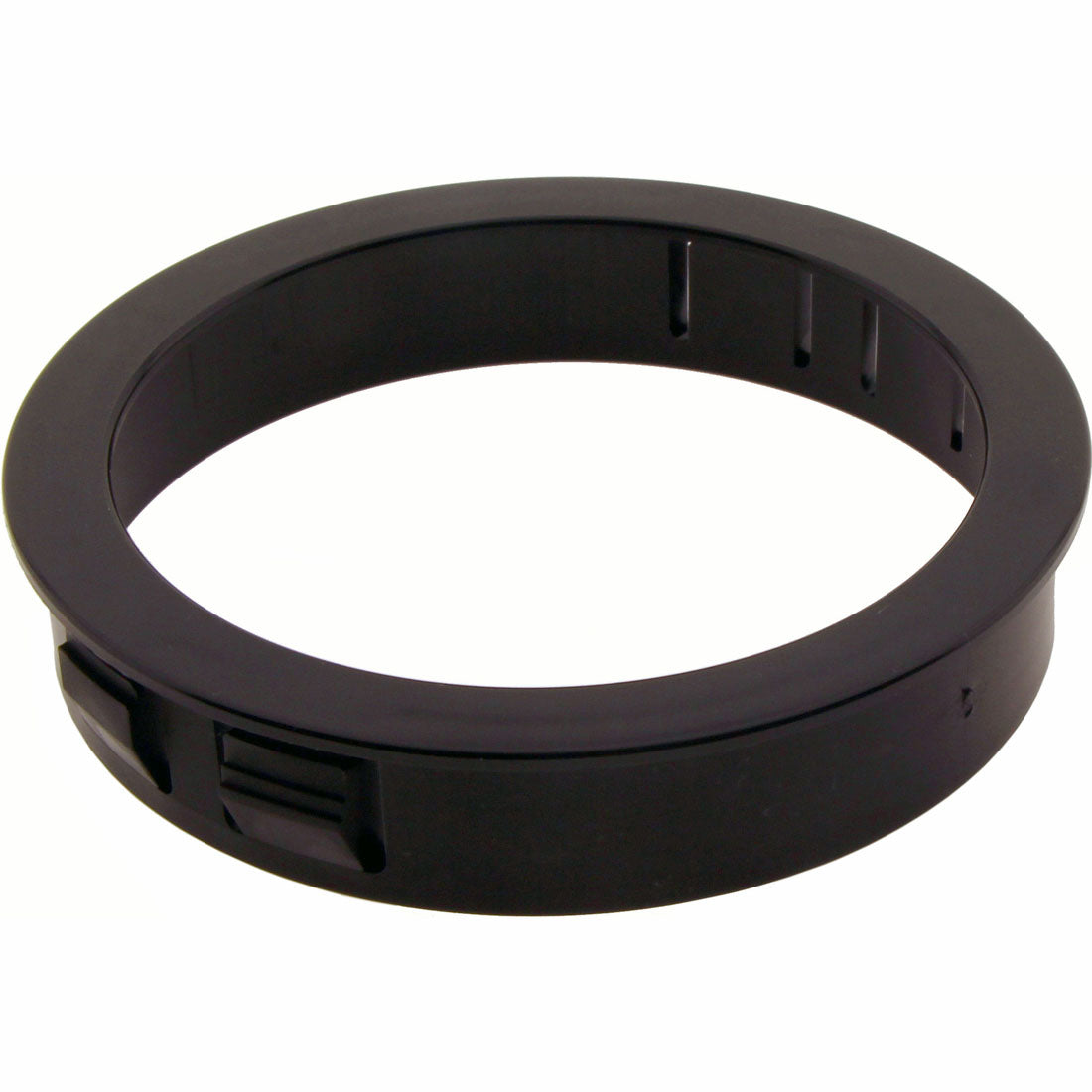

Snap Bushing Black Nylon 88.9mm

Name: Snap Bushing Black Nylon 88.9mm
Brand: Co-Mac
SKU: 281
Price: 8.1 NZD
Availability: InStock

$8.10

Sale Sold out

+ GST

Code: 281

• Black Nylon • Fits panel thickness 0.8 to 3.2 (Codes 180 - 278) • Fits panel thickness 0.8 to 6.3 (Codes 279 - 282) • Standard pack: 50 Snap Bushings (available in singles also)

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Protecting Wires, Protecting Penetrations
Used On
Cabinet, Toolbox, Safety Guards, Vehicles, Bus, Electrical Cabinet, Firewall, Bulkheads
Also Called
Snap Bushing, Plastic Grommet, Snap Bushing

Snap Bushings Variations

View product

Code: 281

Snap Bushing Black Nylon 88.9mm

$8.10

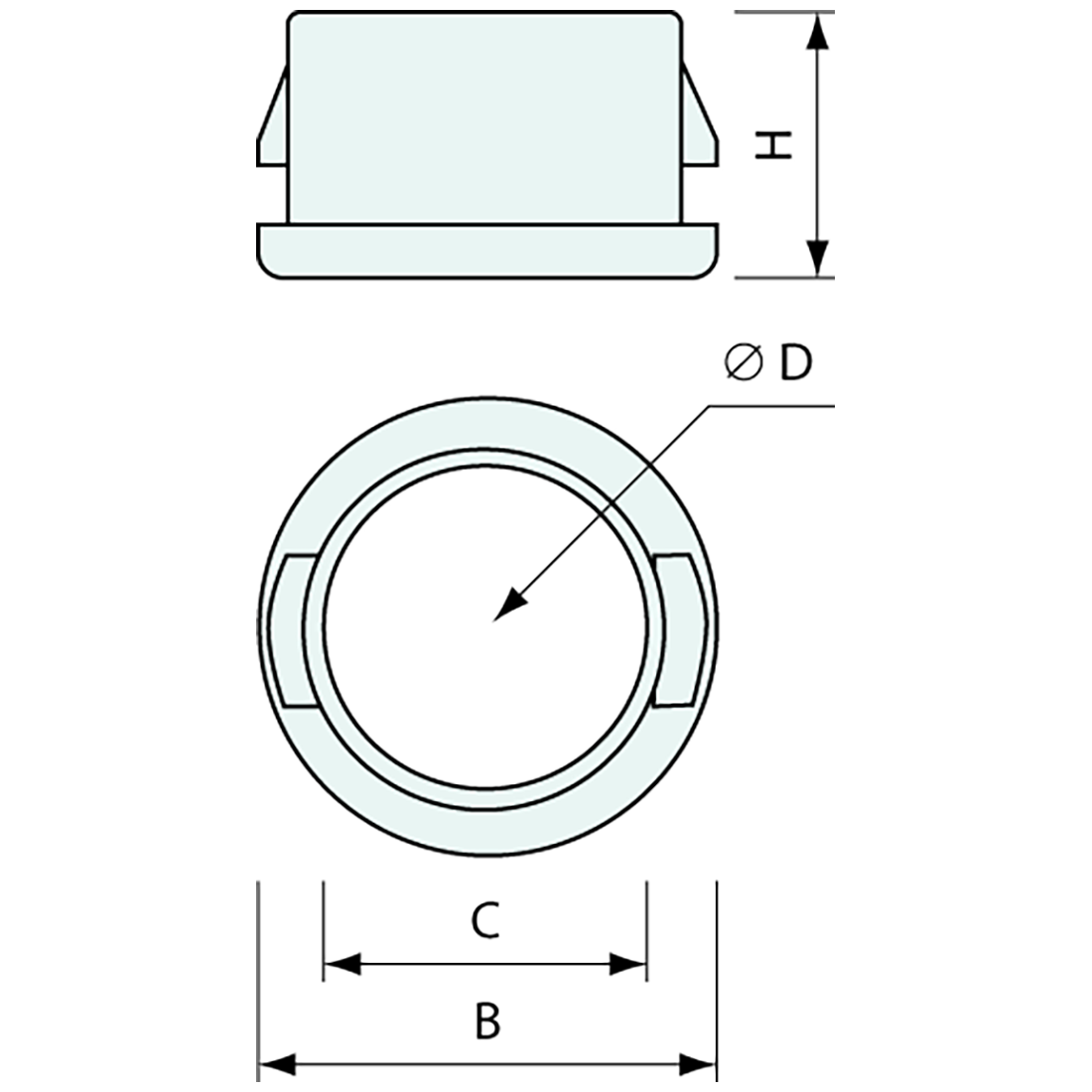

	SKU Products	B mm	Colour	C mm	D mm	H mm	Material	Panel Thickness	Price + GST
		Swipe for more measurements
183	183	15.1	Black	12.8	8.3	10.3	Nylon Glass Reinforced	0.8 - 3.2	$0.32
186	186	25.2	Black	22.2	18.6	11.5	Nylon Glass Reinforced	0.8 - 3.2	$0.62
180	180	9.4	Black	7.8	4.8	8.0	Nylon Glass Reinforced	0.8 - 3.2	$0.29
282	282	105.9	Black	101.6	87.8	18.2	Nylon Glass Reinforced	0.8 - 6.3	$10.47
185	185	22.0	Black	19.0	16.0	11.5	Nylon Glass Reinforced	0.8 - 3.2	$0.42
280	280	92.9	Black	85.7	71.4	18.2	Nylon Glass Reinforced	0.8 - 6.3	$7.73
184	184	18.0	Black	16.0	12.3	10.3	Nylon Glass Reinforced	0.8 - 3.2	$0.40
651	651	47.6	Black	44.4	34.9	11.5	Nylon Glass Reinforced	0.8 - 3.2	$1.57
187	187	28.5	Black	25.5	19.5	11.5	Nylon Glass Reinforced	0.8 - 3.2	$0.70
188	188	33.3	Black	30.0	24.0	11.5	Nylon Glass Reinforced	0.8 - 3.2	$0.84
277	277	62.9	Black	57.1	47.2	18.2	Nylon Glass Reinforced	0.8 - 3.2	$3.40
182	182	13.6	Black	11.1	8.0	10.3	Nylon Glass Reinforced	0.8 - 3.2	$0.31
650	650	40.9	Black	38.1	33.3	11.5	Nylon Glass Reinforced	0.8 - 3.2	$1.05
189	189	16.7	Black	14.3	9.5	10.3	Nylon Glass Reinforced	0.8 - 3.2	$0.35
279	279	80.2	Black	76.2	62.7	18.2	Nylon Glass Reinforced	0.8 - 6.3	$6.90
181	181	12.0	Black	9.5	6.6	10.3	Nylon Glass Reinforced	0.8 - 3.2	$0.31
652	652	54.0	Black	50.0	41.3	11.5	Nylon Glass Reinforced	0.8 - 3.2	$2.08
278	278	68.8	Black	63.5	49.9	18.2	Nylon Glass Reinforced	0.8 - 3.2	$5.47
281	281	92.9	Black	88.9	74.6	18.2	Nylon Glass Reinforced	0.8 - 6.3	$8.10
