Tension Lever Stainless Steel Ext Thread Stainless Steel 40mm

Name: Tension Lever Stainless Steel Ext Thread Stainless Steel 40mm
Brand: Co-Mac
SKU: 2747
Price: 100.21 NZD
Availability: InStock

$100.21

Sale Sold out

+ GST

Code: 2747

• Lift to disengage

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Gripping, Clamping, Adjusting, Quick Release, Turning
Used On
Tool Post Lever, Quick Change Tool Post Lever, Jigs, Fixtures, Machinery, Tools, Lathes, Marine
Also Called
Tool Post Lever, Knob Lever, Tension Level

Tension Levers External Thread Variations

View product

Code: 2747

Tension Lever Stainless Steel Ext Thread Stainless Steel 40mm

$100.21

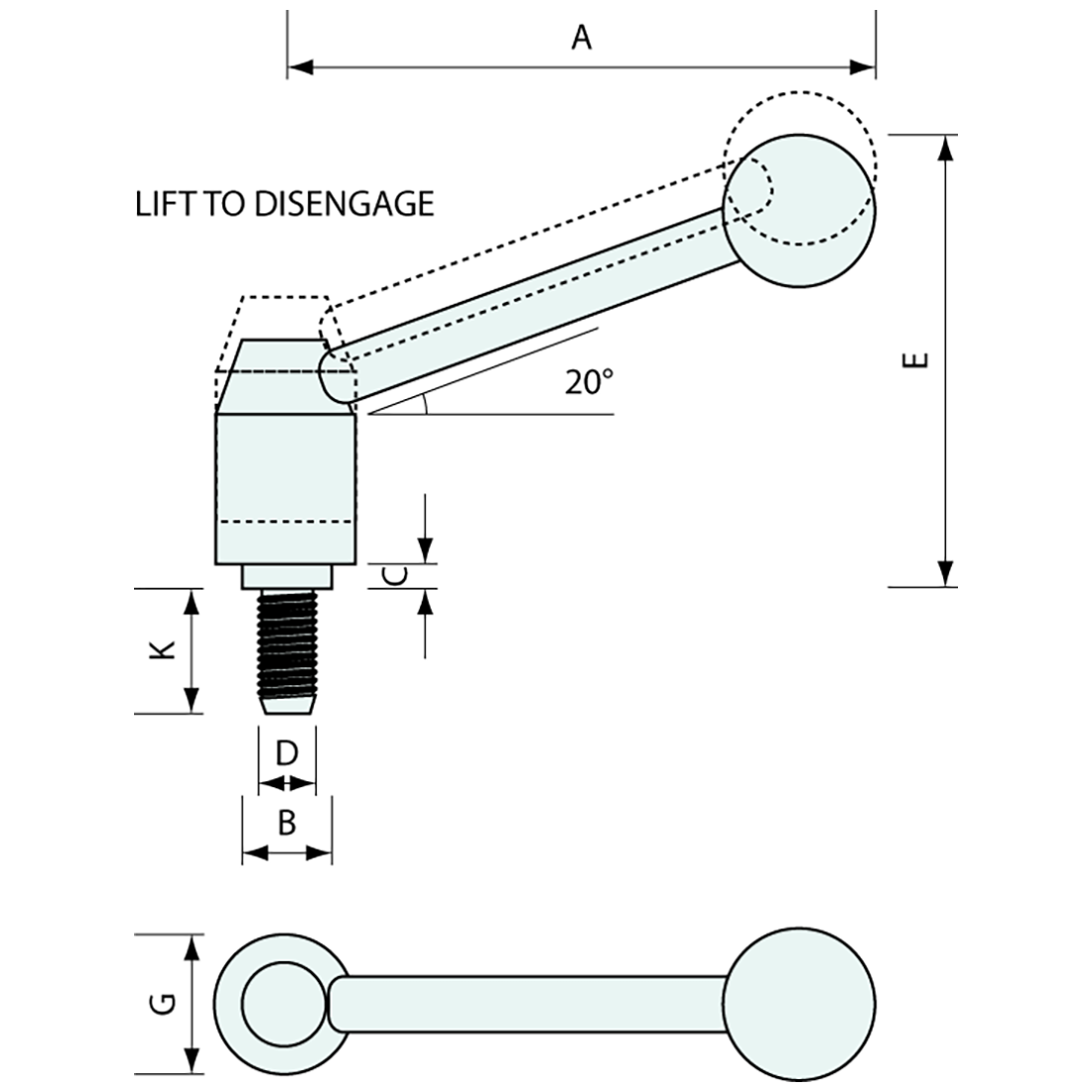

	SKU Products	A mm	B mm	Colour	C mm	E mm	G mm	K mm	Material	Thread d	Price + GST
		Swipe for more measurements
2530	2530	105.0	16.0	Black	3.0	115.0	24.0	40.0	Steel, Oxide finish	M10	$69.36
2746	2746	78.0	13.5	Stainless Steel	1.0	100.0	21.0	40.0	Stainless Steel	M8	$95.40
2745	2745	78.0	13.5	Stainless Steel	1.0	100.0	21.0	40.0	Stainless Steel	M6	$83.78
2748	2748	117.0	19.0	Stainless Steel	5.0	130.0	28.0	40.0	Stainless Steel	M12	$119.00
2534	2534	132.0	23.0	Black	6.0	140.0	33.0	40.0	Steel, Oxide finish	M16	$89.93
2747	2747	105.0	16.0	Stainless Steel	3.0	115.0	24.0	40.0	Stainless Steel	M10	$100.21
2528	2528	78.0	13.5	Black	1.0	100.0	21.0	40.0	Steel, Oxide finish	M6	$59.75
2532	2532	117.0	19.0	Black	5.0	130.0	28.0	40.0	Steel, Oxide finish	M12	$72.49
2535	2535	150.0	28.0	Black	6.0	157.0	40.0	40.0	Steel, Oxide finish	M20	$138.90
2529	2529	78.0	13.5	Black	1.0	100.0	21.0	40.0	Steel, Oxide finish	M8	$63.13
