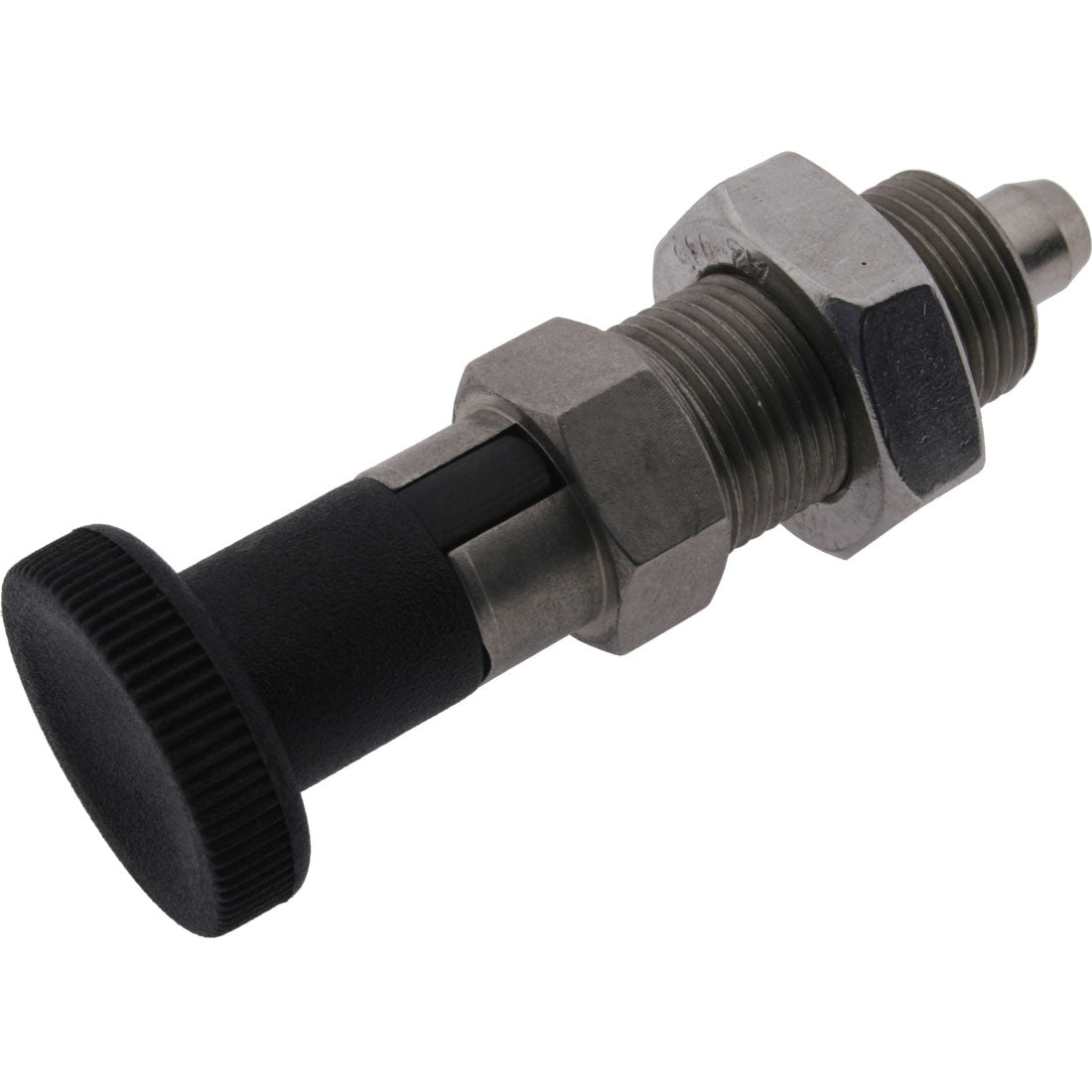

Spring Pin Knob Stainless Steel M20

Name: Spring Pin Knob Stainless Steel M20
Brand: Co-Mac
SKU: 2388
Price: 102.31 NZD
Availability: InStock

$102.31

Sale Sold out

+ GST

Code: 2388

• Black Plastic pull knob • Holds open when handle at 90º • Stainless Steel with Black Plastic knob

Product variants

Quantity

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

Used For
Locking, Unlocking
Used On
Gym Equipment, Hand Wheels,Hand Wheel, Track Lock, Jig Fixture, Jig Fixtures, Tent Poles, Frame Adjustment, Engineering Equipment, Engineering Machinery
Also Called
Knob Pull Indent Pawl, Indexing Plungers With Pin, Index Plungers, Twist and Turn Latch

View product

Code: 2388

$102.31

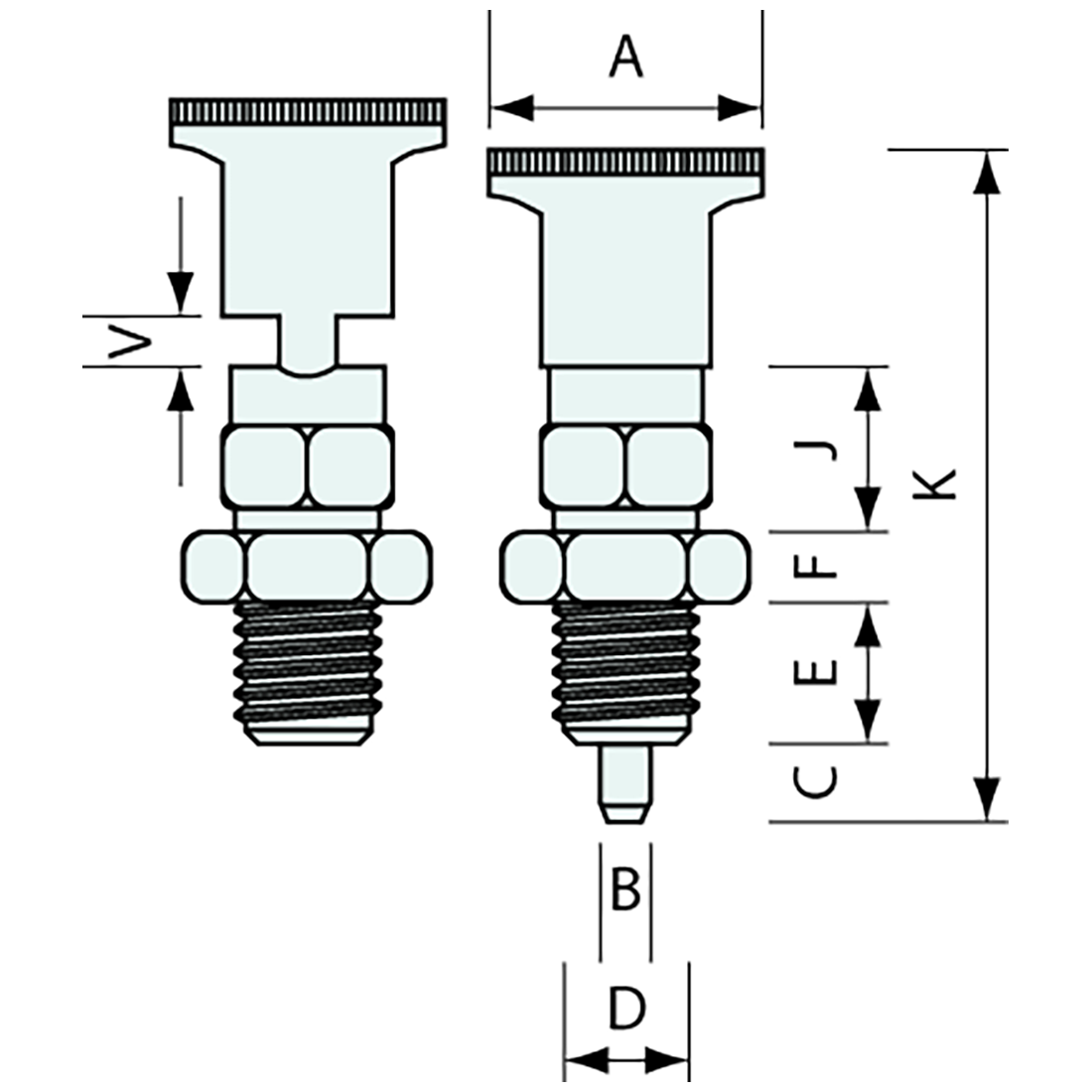

	SKU Products	A mm	B mm	Colour	C mm	E mm	F mm	J mm	K mm	Material	Pitch mm	Thread d	V mm	Price + GST
		Swipe for more measurements
2366	2366	31.0	8.0	Black	8.0	17.0	8.0	16.0	67.0	Plastic Knob, Oxide Finish on thread	1.5	M16	6.4	$48.94
2385	2385	21.0	5.0	Black	5.0	10.0	5.0	11.0	44.0	Stainless Steel, Plastic Knob	1.0	M10	4.5	$57.91
2363	2363	31.0	10.0	Black	10.0	22.0	10.0	21.0	78.0	Plastic Knob, Oxide Finish on thread	1.5	M20	10.0	$80.62
2364	2364	21.0	5.0	Black	5.0	10.0	5.0	11.0	44.0	Plastic Knob, Oxide Finish on thread	1.0	M10	4.5	$35.72
2365	2365	25.0	6.0	Black	6.0	13.0	6.0	12.0	53.0	Plastic Knob, Oxide Finish on thread	1.5	M12	5.0	$40.19
2386	2386	25.0	6.0	Black	6.0	13.0	6.0	12.0	53.0	Stainless Steel, Plastic Knob	1.5	M12	5.0	$65.74
2387	2387	31.0	8.0	Black	8.0	17.0	8.0	16.0	67.0	Stainless Steel, Plastic Knob	1.5	M16	6.4	$83.24
2388	2388	31.0	10.0	Black	10.0	22.0	10.0	21.0	78.0	Stainless Steel, Plastic Knob	1.5	M20	10.0	$102.31
