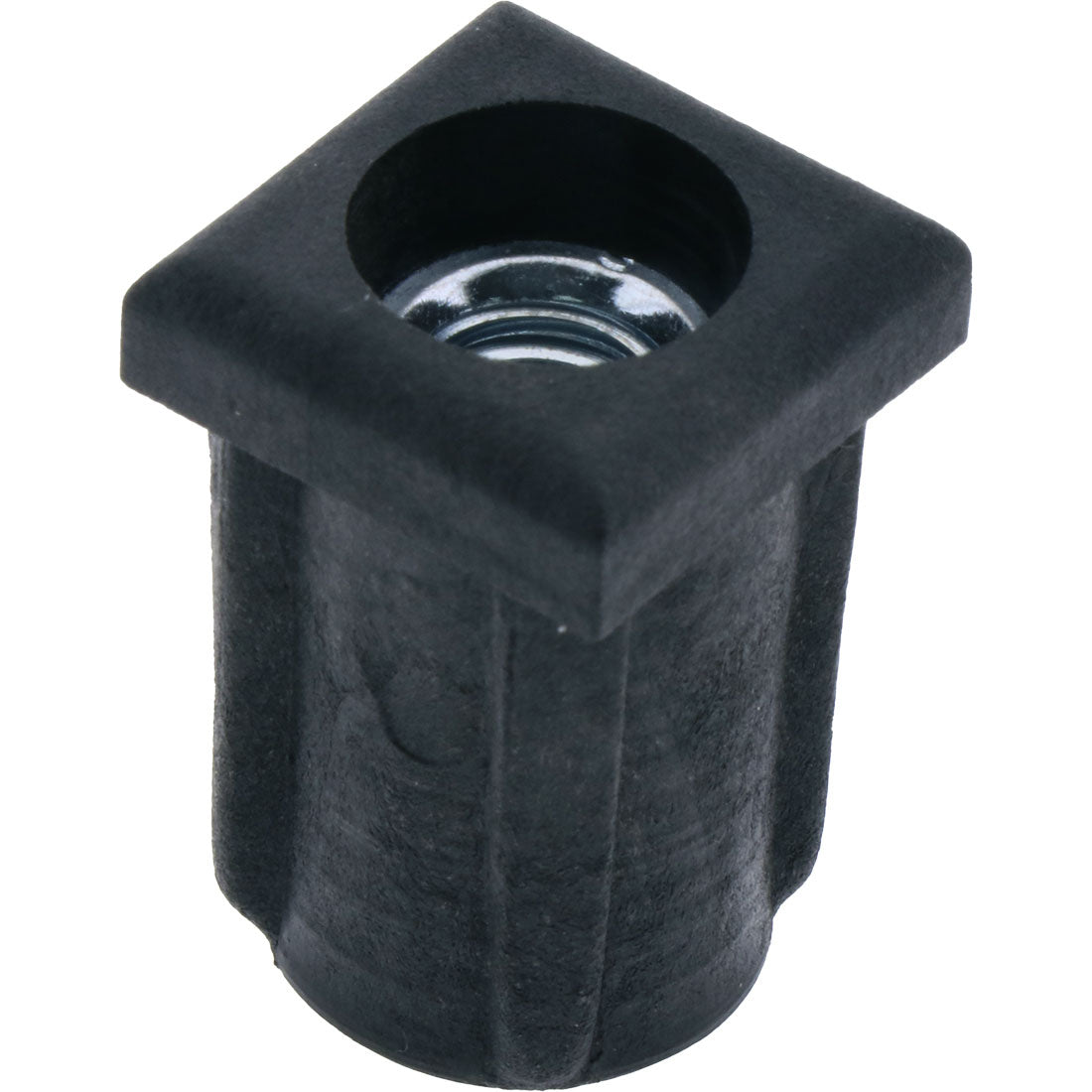

Square Tube Insert Zinc Plated Thread 22.2mm M10

Name: Square Tube Insert Zinc Plated Thread 22.2mm M10
Brand: Co-Mac
SKU: 1995
Price: 5.05 NZD
Availability: InStock

$5.05

Sale Sold out

+ GST

Code: 1995

• Black • Fits 16/18 gauge tube • Simply tap in

Product variants

Quantity

View Catalogue Page

STEP file

Freight and Delivery

Orders placed by 4pm will be dispatched on the same day and typically arrive overnight.

Please note that oversized items are delivered by truck and can take an additional 2-3 days for delivery.

View full details

Used For
Levelling and joining tube
Used On
Table, Bench, Furniture, Safety Frame, Shelving, Display Unit
Also Called
Threaded Plug, Square Tube Insert, Square Tube Inserts

Square Tube Inserts Variations

View product

Code: 1995

Square Tube Insert Zinc Plated Thread 22.2mm M10

$5.05

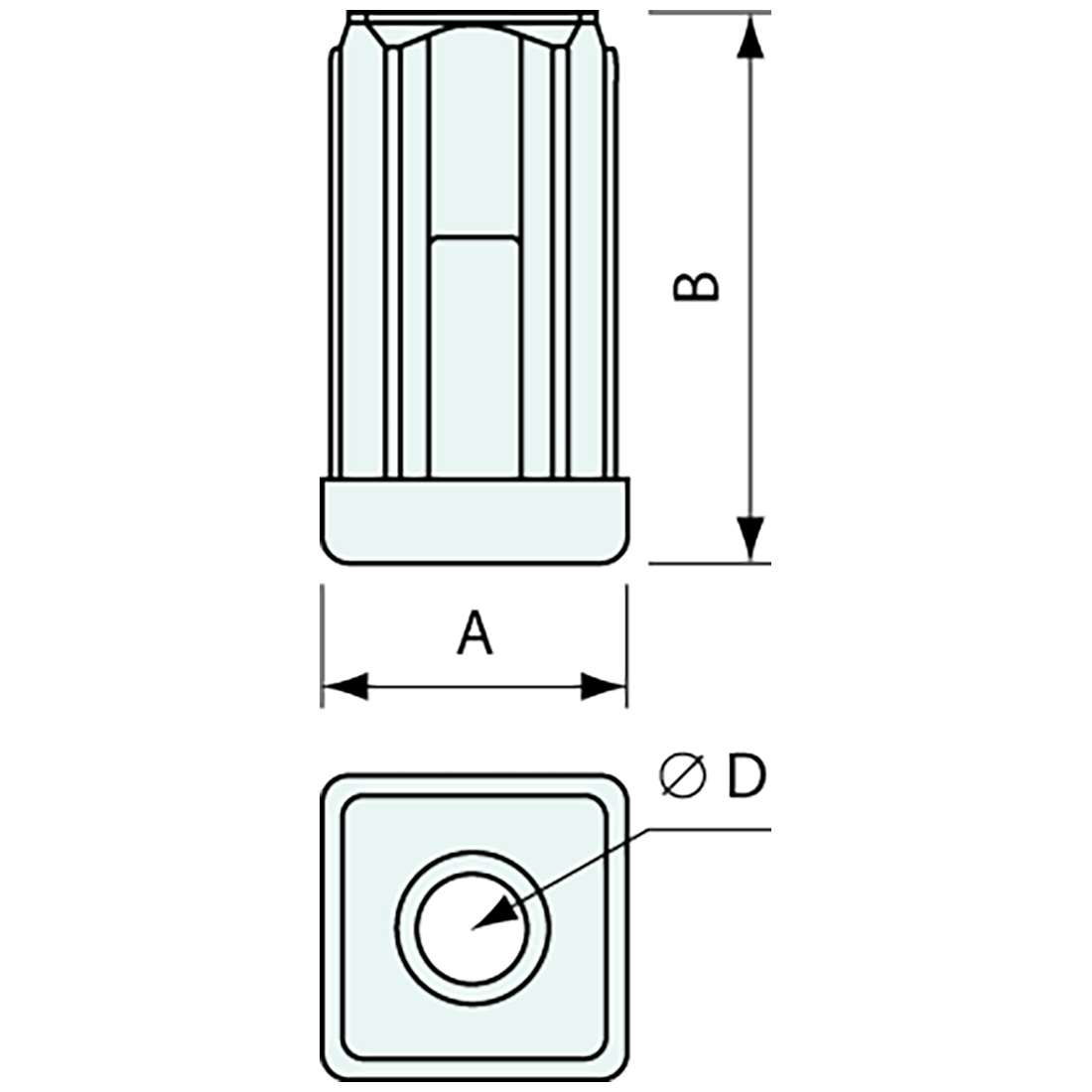

	SKU Products	A inch	A mm	B mm	Colour	C mm	H min mm	H max mm	Load rating kg	Material	Thread d	Thread Material	Price + GST
		Swipe for more measurements
1942	1942		40.0	47.0	Black	8.0	34.3	36.5	80.0	Nylon Glass Reinforced	M16	Zinc	$8.32
1562	1562	1.5	38.1	46.0	Black	8.0	34.7	36.0	80.0	Nylon Glass Reinforced	M16	Zinc	$8.32
71920	71920	1.5	38.1	36.0	Black	6.5	33.5	35.6	80.0	Nylon Glass Reinforced	M12	Stainless Steel	$7.44
1915	1915	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M8	Zinc	$6.31
1946	1946	1.5	38.1	75.0	Black	7.5	33.9	36.0	80.0	Nylon Glass Reinforced	M16	Nylon	$7.09
71559	71559	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M10	Stainless Steel	$9.09
71941	71941		40.0	47.0	Black	7.0	34.4	36.9	80.0	Nylon Glass Reinforced	M12	Stainless Steel	$9.94
1955	1955	0.875	22.2	30.0	Black	6.0	19.1	19.5	20.0	Nylon Glass Reinforced	M8	Zinc	$5.05
1914	1914	1.0	25.4	46.0	Black	7.0	22.1	23.0	50.0	Nylon Glass Reinforced	M8	Zinc	$5.31
1558	1558		30.0	48.0	Black	8.0	24.5	27.5	60.0	Nylon Glass Reinforced	M10	Zinc	$6.04
1940	1940		40.0	47.0	Black	7.0	34.4	36.9	80.0	Nylon Glass Reinforced	M10	Zinc	$7.62
71514	71514		30.0	47.0	Black	8.0	24.5	27.5	60.0	Nylon Glass Reinforced	M12	Stainless Steel	$8.45
71973	71973		35.0	47.0	Black	8.0	31.0	32.0	40.0	Nylon Glass Reinforced	M16	Stainless Steel	$9.02
71908	71908	1.5	38.1	49.0	Black	6.0	35.4	36.3	80.0	Nylon Glass Reinforced	M8	Stainless Steel	$6.91
1510	1510	1.0	25.4	70.0	Black	8.5	21.2	23.5	50.0	Nylon Glass Reinforced	M12	Nylon	$4.45
1995	1995	0.875	22.2	30.0	Black	7.0	19.1	19.5	20.0	Nylon Glass Reinforced	M10	Zinc	$5.05
1971	1971		35.0	47.0	Black	8.0	31.8	32.5	40.0	Nylon Glass Reinforced	M10	Zinc	$7.41
1556	1556	1.0	25.4	70.0	Black	7.0	21.2	23.5	50.0	Nylon Glass Reinforced	M10	Nylon	$4.45
1918	1918	2.0	50.8	88.0	Black	8.0	46.3	47.6	100.0	Nylon Glass Reinforced	M12	Nylon	$15.80
1950	1950	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M12	Zinc	$6.87
1929	1929	2.0	50.8	47.0	Black	7.0	46.3	47.6	100.0	Nylon Glass Reinforced	M12	Zinc	$14.50
71972	71972		35.0	47.0	Black	8.0	31.8	32.5	40.0	Nylon Glass Reinforced	M12	Stainless Steel	$8.26
1954	1954	0.75	19.1	25.0	Black	3.0	15.6	16.8	20.0	Nylon Glass Reinforced	M8	Zinc	$4.85
1565	1565		30.0	47.0	Black	8.0	24.5	27.5	60.0	Nylon Glass Reinforced	M16	Zinc	$8.19
71942	71942		40.0	47.0	Black	8.0	34.3	36.5	80.0	Nylon Glass Reinforced	M16	Stainless Steel	$10.66
71964	71964	1.0	25.4	30.0	Black	7.0	22.1	23.0	50.0	Nylon Glass Reinforced	M12	Stainless Steel	$7.55
1994	1994	0.75	19.1	31.0	Black	3.0	15.6	16.8	20.0	Nylon Glass Reinforced	M10	Zinc	$4.85
1944	1944	1.25	31.8	78.0	Black	6.5	27.5	29.8	70.0	Nylon Glass Reinforced	M16	Nylon	$6.77
1514	1514		30.0	47.0	Black	8.0	24.5	27.5	60.0	Nylon Glass Reinforced	M12	Zinc	$6.13
1941	1941		40.0	47.0	Black	7.0	34.4	36.9	80.0	Nylon Glass Reinforced	M12	Zinc	$8.44
1945	1945	1.5	38.1	75.0	Black	7.5	33.8	35.9	80.0	Nylon Glass Reinforced	M12	Nylon	$7.09
1559	1559	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M10	Zinc	$6.75
71561	71561	1.5	38.1	49.0	Black	6.5	33.3	35.4	80.0	Nylon Glass Reinforced	M10	Stainless Steel	$7.08
71558	71558		30.0	48.0	Black	8.0	24.5	27.5	60.0	Nylon Glass Reinforced	M10	Stainless Steel	$8.36
71560	71560	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M16	Stainless Steel	$11.44
1943	1943	1.0	25.4	70.0	Black	8.0	21.2	23.5	50.0	Nylon Glass Reinforced	M16	Nylon	$4.45
1964	1964	1.0	25.4	30.0	Black	7.0	22.1	23.0	50.0	Nylon Glass Reinforced	M12	Zinc	$5.25
1515	1515	1.25	31.8	78.0	Black	6.5	27.5	29.8	70.0	Nylon Glass Reinforced	M12	Nylon	$5.00
71971	71971		35.0	47.0	Black	8.0	31.8	32.5	40.0	Nylon Glass Reinforced	M10	Stainless Steel	$8.12
1560	1560	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M16	Zinc	$9.09
1959	1959	1.125	28.6	30.0	Black	7.0	25.1	26.1	40.0	Nylon Glass Reinforced	M12	Zinc	$10.66
1916	1916	2.0	50.8	47.0	Black	7.0	46.3	48.1	100.0	Nylon Glass Reinforced	M16	Zinc	$14.52
71914	71914	1.0	25.4	46.0	Black	8.5	22.1	23.0	50.0	Nylon Glass Reinforced	M8	Stainless Steel	$7.63
71929	71929	2.0	50.8	47.0	Black	7.0	46.3	47.6	100.0	Nylon Glass Reinforced	M12	Stainless Steel	$16.81
71948	71948	1.0	25.4	46.0	Black	8.5	22.1	23.0	50.0	Nylon Glass Reinforced	M10	Stainless Steel	$7.24
1557	1557	1.0	25.4	28.0	Black	7.0	22.1	23.0	50.0	Nylon Glass Reinforced	M16	Zinc	$6.91
1563	1563	2.0	50.8	88.0	Black	8.0	47.1	48.0	100.0	Nylon Glass Reinforced	M16	Nylon	$17.73
1948	1948	1.0	25.4	46.0	Black	7.0	22.1	23.0	50.0	Nylon Glass Reinforced	M10	Zinc	$4.94
1908	1908	1.5	38.1	49.0	Black	8.0	35.4	36.3	80.0	Nylon Glass Reinforced	M8	Zinc	$6.71
71950	71950	1.25	31.8	46.0	Black	7.0	28.1	29.5	70.0	Nylon Glass Reinforced	M12	Stainless Steel	$9.18
