Square Shaft Locking Pin SS 316 9.5 x 87mm

Name: Square Shaft Locking Pin SS 316 9.5 x 87mm
SKU: 6637
Price: 15.91 NZD
Availability: InStock

Used On:
• Agricultural Machinery • Trailers • Trucks • Sprayers • Telescopic Arms • Gym Equipment • Toolboxes

Also Called:
• Square Shaft Locking Pin • Rectangle Locking Pin • Square Wire with Pin • Square Locking Pin

Be the first to review this product

NZ$15.91 + GST

SKU

6637

Tech Info

Technical info for the current product is indicated by the blue marker. Related product(s) may be shown for your convenience.

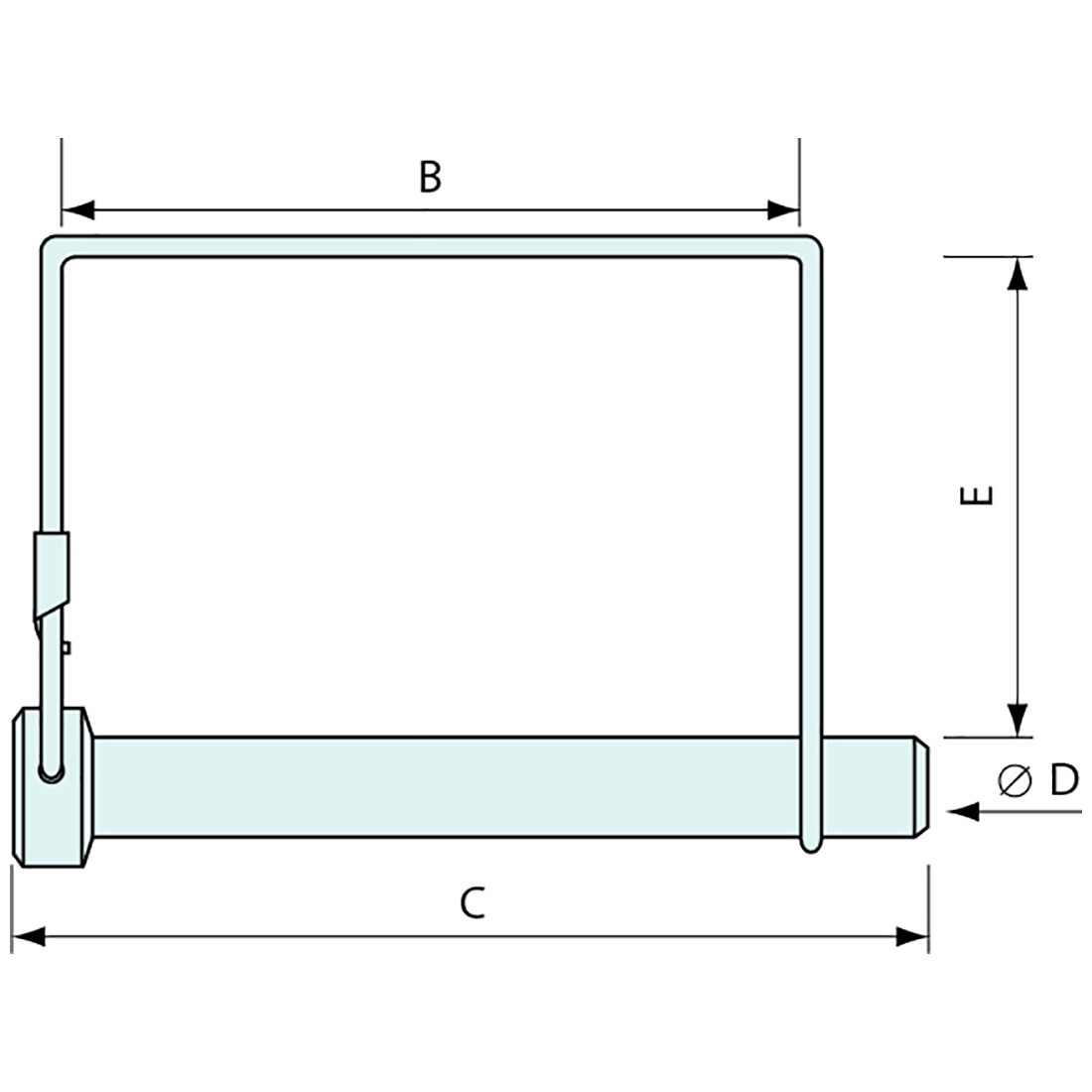

Code	Price ea. + GST	Material	B mm	C mm	D mm	E mm
6637	15.91	Stainless Steel 316	70	87	9.5	40
6638	17.52	Stainless Steel 316	54	72	12	40
6639	18.03	Stainless Steel 316	90	107	12	53

Downloads

STEP file

Drawing sheet
