Gate Roller and Bolt Zinc 78mm M10

Name: Gate Roller and Bolt Zinc 78mm M10
SKU: 5409
Price: 32.46 NZD
Availability: InStock

Used On:
• Gates • Tennis Court Gate • Swimming Pool Gates • Farm Gate • Household Gate • Section Gates • Yard Gate • Pedestrian Gate • Sliding Gate • Iron Gates • Cantilever Gates

Also Called:
• Gate Roller • Large Gate Rollers • U Track Rollers • Roller Wheels • U Groove Steel Roller Wheels

• Suits U Track 5439 • Zinc Plated

Be the first to review this product

NZ$32.46 + GST

SKU

5409

Tech Info

Technical info for the current product is indicated by the blue marker. Related product(s) may be shown for your convenience.

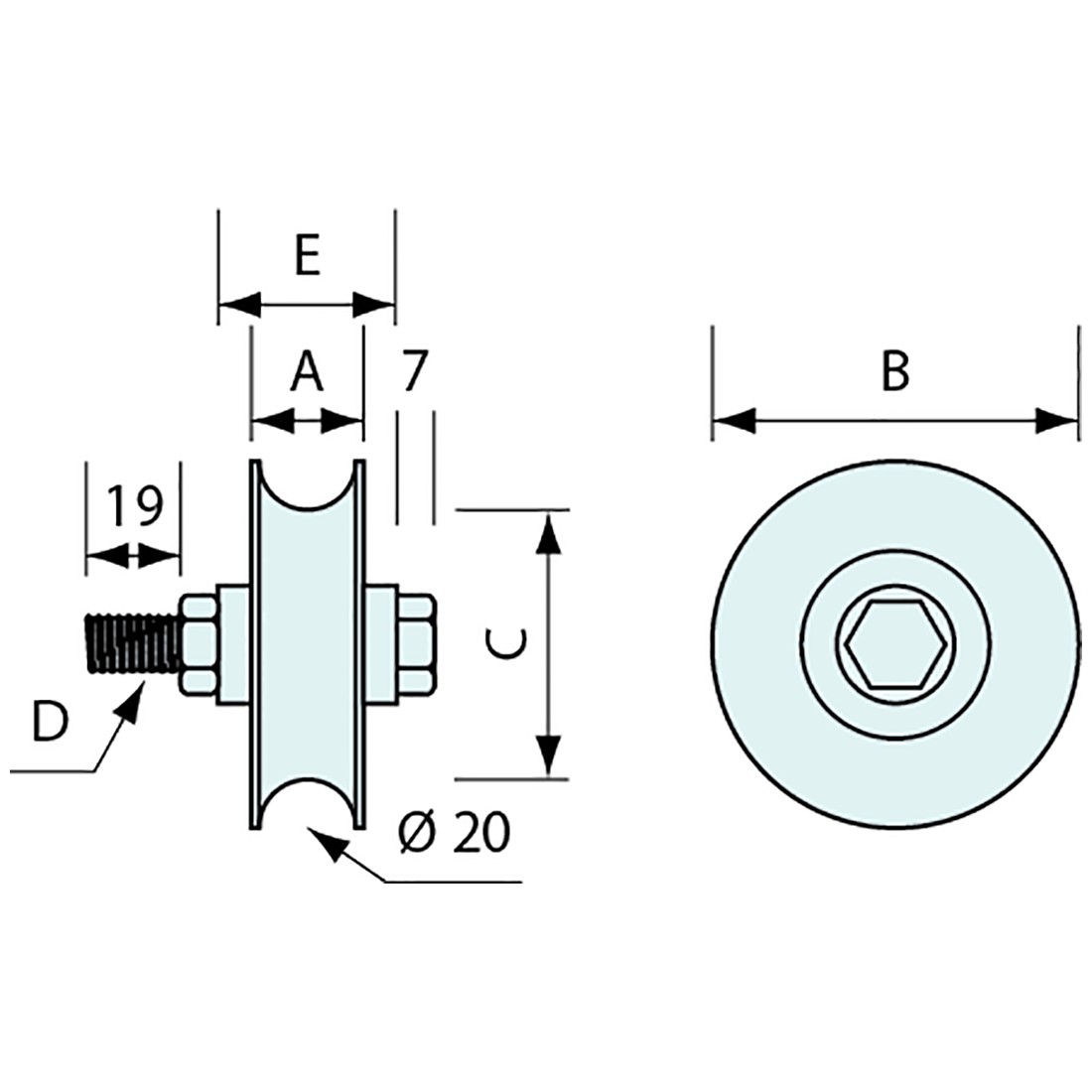

Code	Price ea. + GST	Material	Keyed Alike Option	Load Rating kg	Thread D	A mm	B mm	C mm	E mm
5409	32.46	Steel Zinc Plated	0	130	M10	24	78	62	27
5445	34.27	Steel Zinc Plated		150	M12	24	78	60	24
5412	58.48	Steel Zinc Plated	0	350	M12	26	98	80	34
5413	129.69	Steel Zinc Plated	0	425	M16	32	198	180	44

Downloads

STEP file

Drawing sheet
