Ball Joints Zinc Plated M8 M6

Name: Ball Joints Zinc Plated M8 M6
SKU: 1888
Price: 18.05 NZD
Availability: InStock

Used On:
• Doors • Covers • Lids • Ute Lids • Ute covers • Windows • Tables • Furniture • Automation • RV • Machinery • Toolboxes • Seats • Hatches • Compartment Doors • Television Deployment System • Engine Covers • Cabinets • Tonneau Covers • Trailers • Counter balance • Maintenance P

Also Called:
• Trunnion • Ball Joint • Fulcrom • Cupling • Swivel End

• Zinc Plated

Be the first to review this product

NZ$18.05 + GST

SKU

1888

Tech Info

Technical info for the current product is indicated by the blue marker. Related product(s) may be shown for your convenience.

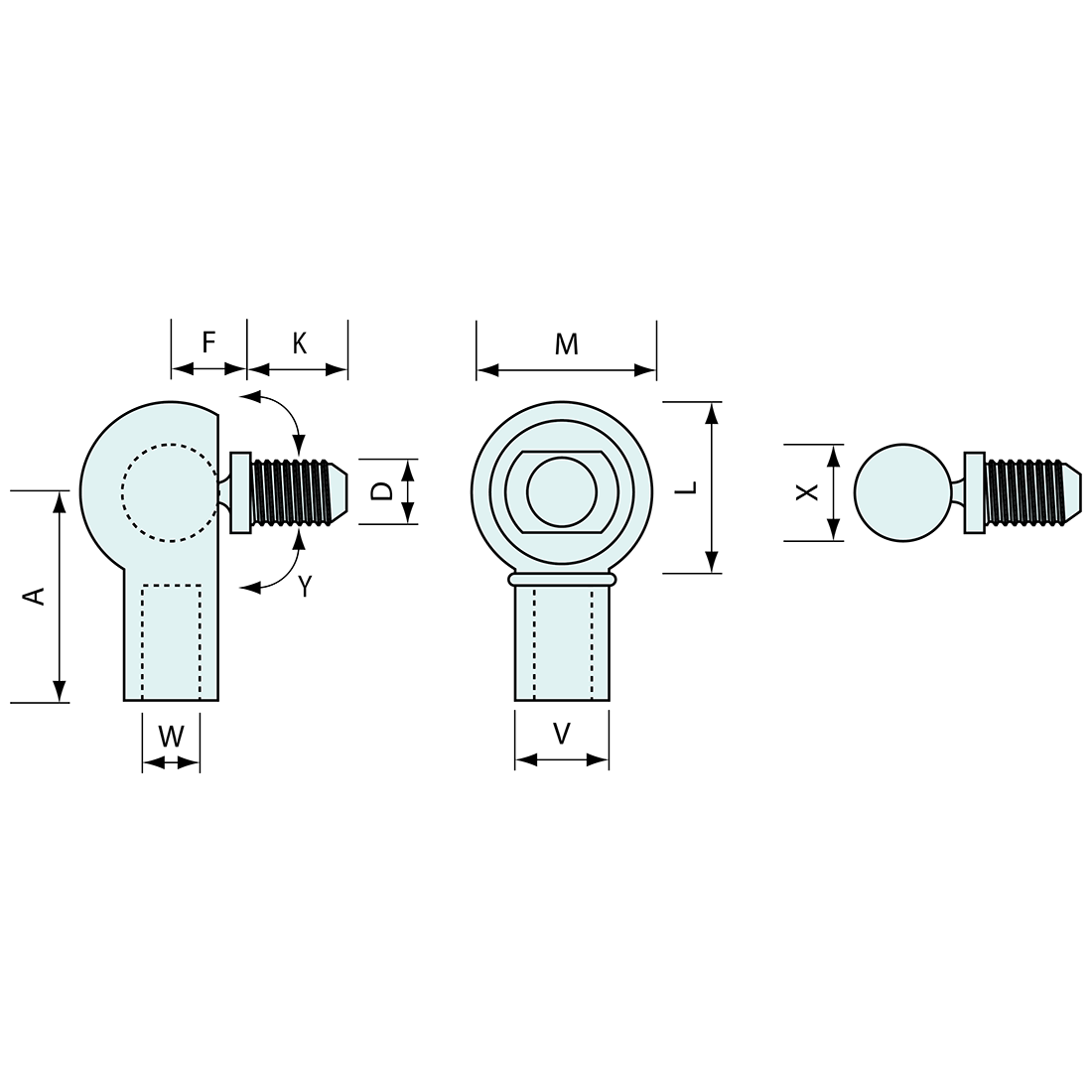

Code	Price ea. + GST	Material	Thread D	Thread W	A mm	F mm	K mm	L mm	M mm	V mm	X mm
1888	18.05	Steel Zinc Plated	M8	M6	18	12	12	15	15	10.2	10
1889	21.5	Steel Zinc Plated	M8	M8	30	12	16	20	19	13.3	13
1890	26.25	Steel Zinc Plated	M10	M10	35	15	20	23	24	16.3	16

Downloads

STEP file

Drawing sheet
